More revenue per charging point
With smart power allocation
The eTower 200 DC charging station takes ultra-fast charging to the next level and offers maximum power at all times. The eTower switches charging power particularly quickly and dynamically using seven small 29 kW modules. For CPOs, this results in more kilowatt hours sold, and for users, shorter charging times!

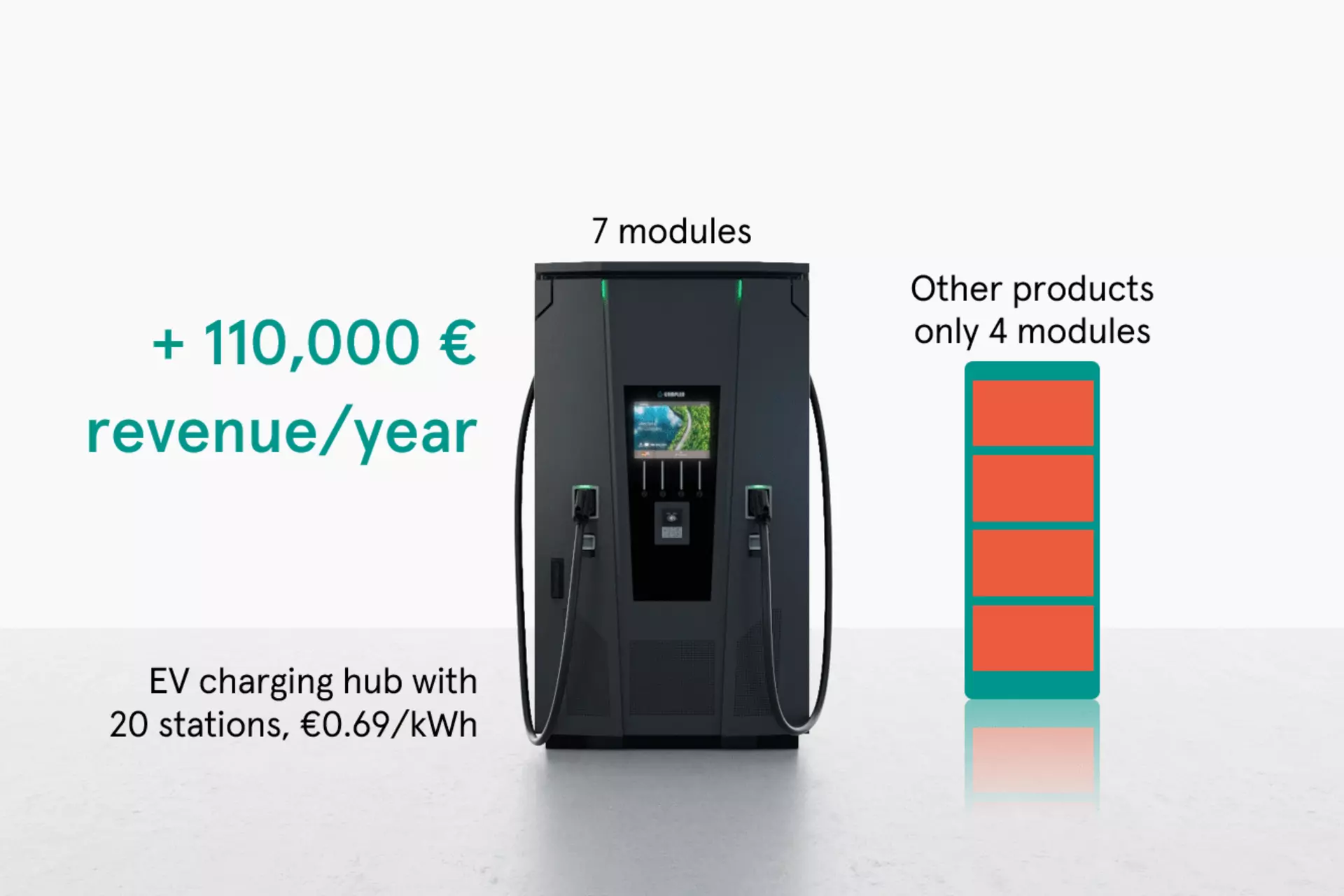

Practical example – the ROI advantage
Comparison:
- Reference product: 200 kW charger with 4x 50 kW modules
- eTower 200: 7x 29 kW modules
If, for example, two Tesla Model Ys start charging five minutes apart and your station performs 10 charging processes per day (at an electricity price of £0.69/kWh), this results in potential additional revenue of £5,600 per year and station – solely due to the more intelligent and flexible power allocation of the 29 kW modules.
Conclusion: With the eTower 200, you secure a decisive ROI advantage – through higher revenue per charging station and maximum efficiency of your investment in fast-charging infrastructure.
Loading...
HPC charger with the lowest noise level in its class
Fast, yet quiet – even in noise-sensitive areas. While other HPC charging stations generate between 65 and 75 dB(A) of noise, the eTower 200 has the lowest noise level in its class when operating at full capacity. At a distance of 3 metres, it is no louder than a light shower at only 49.4 dB(A).
So there's no trouble with the neighbours. Some competing products have already had to be dismantled following complaints from residents. Not so with the eTower! It sets the new benchmark for noise emissions – thanks to engineering made by Compleo with:
- Laminar air flow through a specially designed dirt channel
- Optimised fans arranged in the coolest possible area (air intake)
- The main air flow is directed through the heat sink and not through the electronics
- TÜV-certified cooling system for high reliability
Loading...

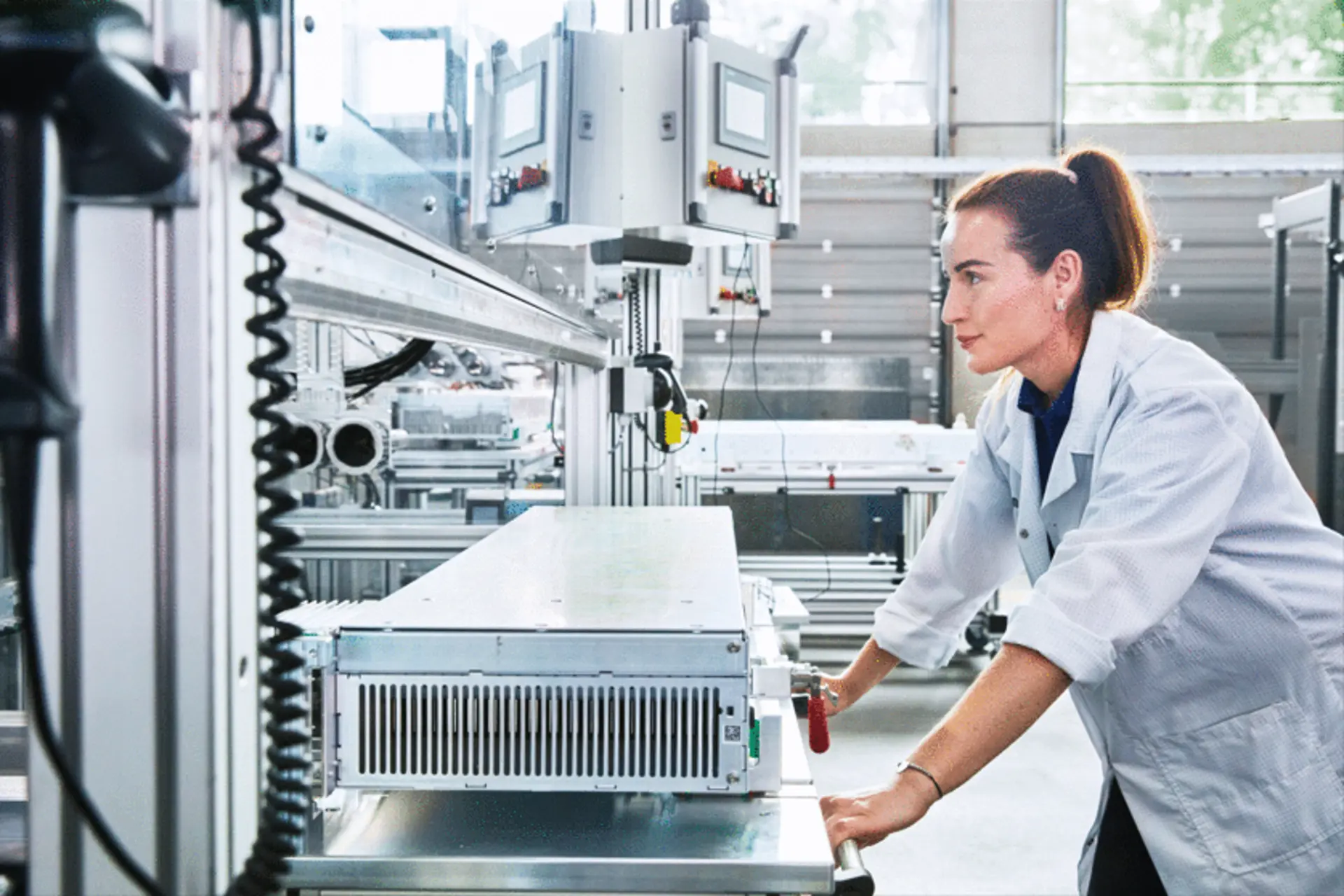

Power electronics made in Germany
The eTower has seven power modules. Fully designed and developed in-house at Compleo. Each power module can deliver up to 920 volts and 72 amps. The new silicon carbide technology is used consistently. This ensures an outstanding efficiency of up to 97.5 per cent.
Advantages of Compleo's in-house development of power electronics:
- Implementation of all normative and internal requirements
- Power electronics tailored to DC charging
- Optimal integration into the overall system
- Adaptability and integration of customer requirements
- Future-proof
- Quality and reliability
- Independence from international supplier markets
Flexible use in many locations – with easy installation thanks to WireHub
Loading...
More locations for ultra-fast charging
Operator
With the eTower HPC products can now be installed in even more locations. The charger can be placed directly in front of walls and, as the quietest product in its class, is suitable for noise-sensitive areas. The eTower can even be installed in underground car parks thanks to its 2.00 m overall height and forklift device.
Its seven power modules offer complete redundancy, each an take on the role of team leader. Should one fail, the HPC charger always remains available.
Loading...
Installation made particularly easy
Installer
The eTower's innovative Wire Hub simplifies the installation process. It enables installers to prewire on-site in advance and then install all charging stations at the same time.
Maintenance is extremely simple. All components can be accessed via the Fontaccess and therefore a single door.
Should a power module fail, it can be replaced very efficiently. Just two service technicians are needed to replace the module - without a crane.
Loading...
Easy to access and intuitive to use
User
Recognise which charging point is free from a distance - no problem with the eTower LED display. The intuitive user guidance at the charging station guides the user step by step - not just via the display. Access is barrier-free.
With the integrated terminal, paying with the eTower 200 is even as easy as in the supermarket: by presenting a credit or debit card, you can charge and pay directly, even without registration.
In completely new places - Charge in no time and continue your journey
Loading...
Ideal for fast-charging hubs in our cities, the eTower offers powerful performance to residents without own parking space as well as visitors on a shopping trip. Lowest noise emissions, back-to-back installation or placement directly in front of walls make the eTower perfect if you want to electrify car parks. Easy service access and remote access for quick support lead to maximum uptime of the charging station and steady sales.

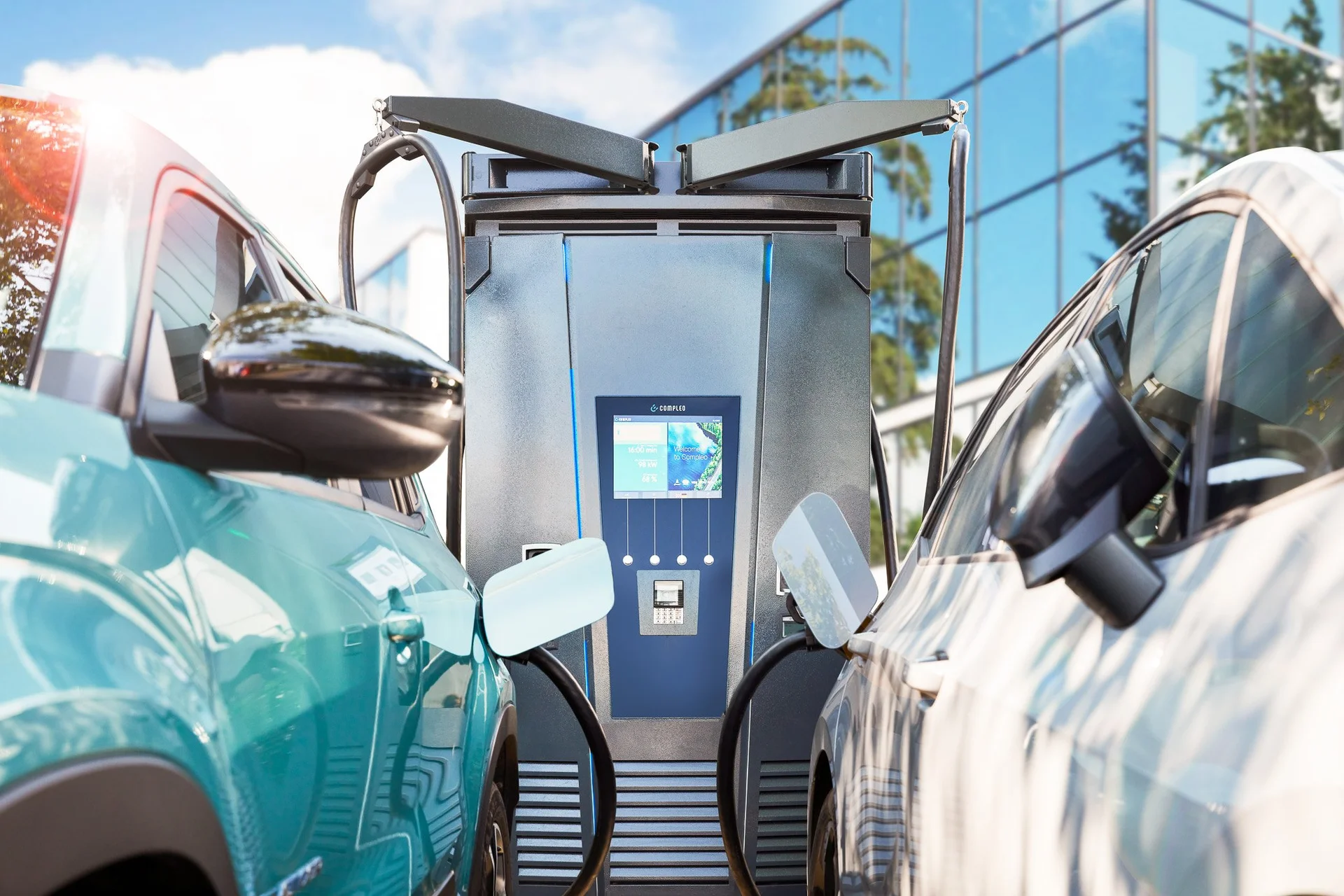

Extra long charging cables
The eTower 200 with cable management system offers users exceptional charging convenience thanks to two 6-metre-long CCS charging cables. This ensures maximum road safety for users – no matter how they park!
- Easy access
- Full flexibility in the parking position
- No trip hazards
- No manoeuvring into oncoming traffic.
Loading...
With the eTower, you offer 200 kW power for fast charging in your car park. A strong image argument for your business. Thanks to simple contactless credit and debit card payments, you can reach the largest possible number of customers with the eTower. Because everyone already has their usual means of payment with them. If two vehicles are charging at the same time, it divides the power dynamically. For the maximum possible energy output.
