DC charging station
Fast and precise – both are possible at the same time
Up to 50 kW/22 kW of charging power (DC & AC)
The CITO 500 makes it possible to offer rapid charging even at less powerful grid connections. In addition, the SAM module provides calibration law-compliant metering.
- Charging with both AC and DC
- Compliant with German calibration law
- Bright 4.3’‘ graphic display
- Space-saving installation

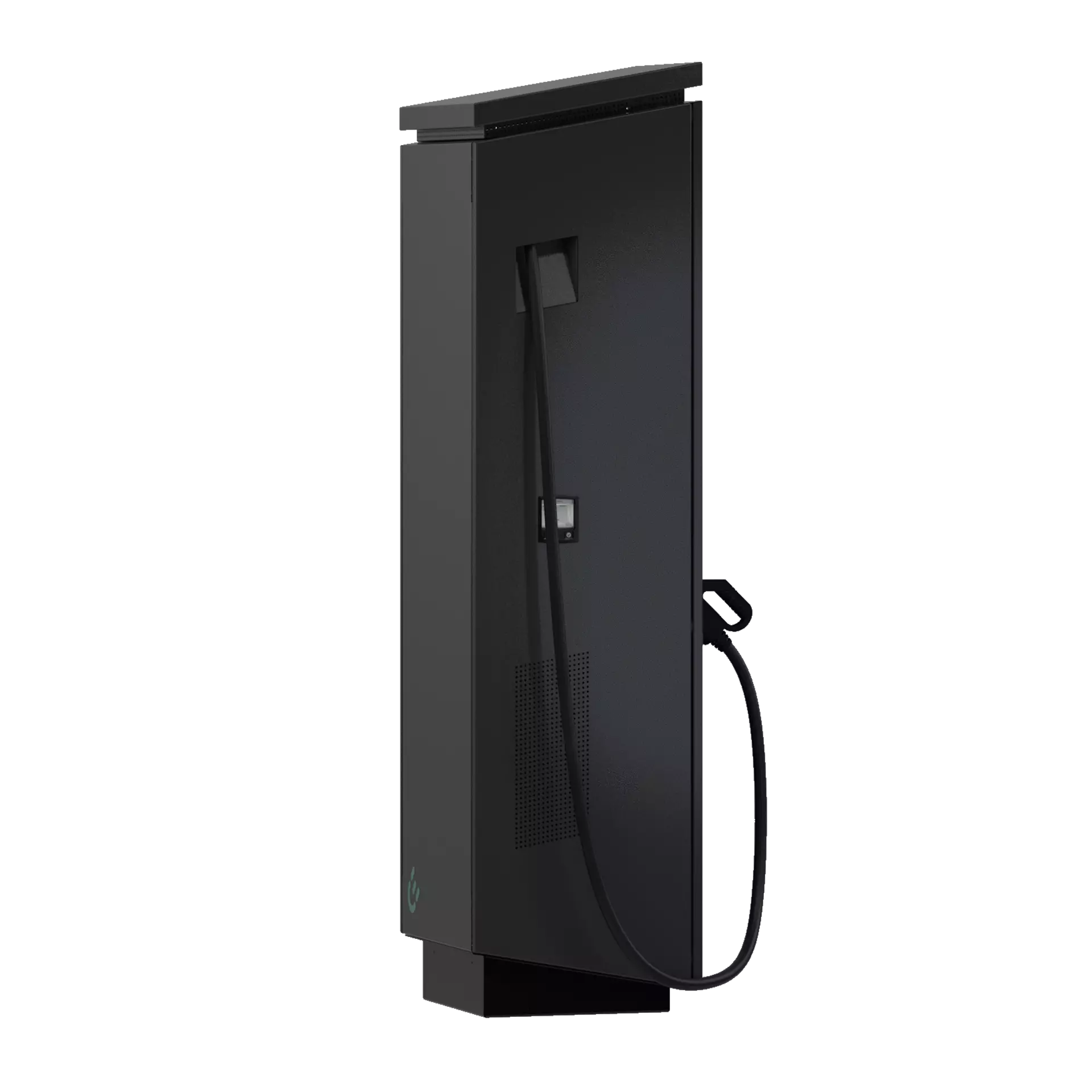

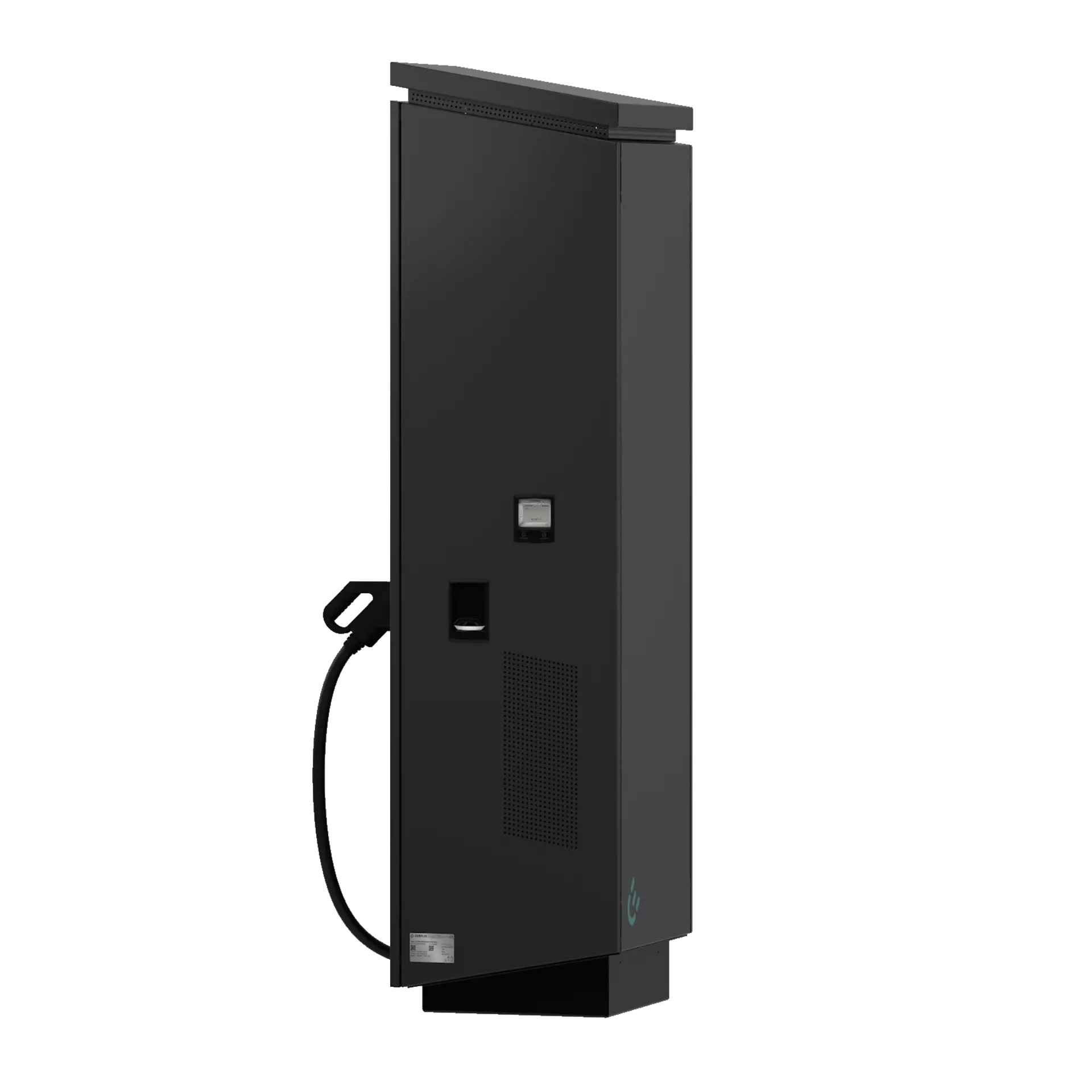

Images contain products in special colours. Standard colour enclosure: RAL 9010 (pure white), base: RAL 9005 (jet black)
In addition to ultra-rapid charging, charging with 50 kW is becoming ever more relevant, be it in the supermarket car park or in the bus depot. At less powerful grid connections in particular, vehicles can be charged with up to 50 kW DC, regardless of their AC charging capacity, which is usually limited to 11 kW.
A robust and fully integrated payment solution is ideal, especially for public charging stations. That is why, in Germany, the CITO 500 is now optionally available with payment terminal and thus already complies with the future German charging station regulations. Ready for all payment methods.
The CITO 500 can be controlled from any IT backend and provides calibration law-compliant metering via SAM module. SAM technology enables the user to monitor and check consumption without being connected to the IT backend.
The charging connectors of electric cars can sometimes be found at the front, sometimes at the back, sometimes on the left and sometimes on the right of the vehicle. In order to enable the user to operate the charging lead conveniently independent of the parking situation, the optional Compleo Cable Management System (CMS) can be used.
|Maximum charging power per charging point||AC: 22 kW; DC: 50 kW||11/22 kW||AC: 22 kW; DC: 24 kW|
|Number of charging points||2 - 3||2||2 - 3|
|Charging connector||1x type 2 socket, 1x CCS charging lead (3.4 m); optional CHAdeMO charging lead (3.4 m)||2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m)||1x type 2 socket, 1x CCS charging lead (3 m); optional CHAdeMO charging lead (3 m)|
|Compliant with calibration law||AC: MID-compliant smart meter with SAM® storage and display module; DC: with SAM® storage and display module||2x MID-compliant smart meter; optional with SAM® storage and display module||AC: MID-compliant smart meter with SAM® storage and display module; DC: with SAM® storage and display module|
|Protection||AC: RCD type A & DC residual current detection 6 mA; DC: LS C100||2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P||AC: FI-Typ A & DC-Fehlerstromerkennung 6 mA; DC: LS C50|
|Communication interface to IT backends||OCPP 1.6 JSON||OCPP 1.6 JSON||OCPP 1.6 JSON|
|Authorisation||Free charging, RFID, smartphone app, optional: Giro-e||Free charging, RFID, smartphone app, optional: Giro-e||Free charging, RFID, smartphone app, optional: Giro-e|
With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.
Number of charging points
2 - 3
1x type 2 socket, 1x CCS charging lead (3.4 m); optional CHAdeMO charging lead (3.4 m)
Free charging, RFID, smartphone app, optional: Giro-e
Size: 4.3’’ display
User instructions via display
Maximum charging output per charge point
AC: 22 kW; DC: 50 kW
Nominal voltage, number of phases, nominal frequency
400 V; 3; 50 Hz
Maximum input current
112 A per phase, configurable
AC: RCD type A & DC residual current detection 6 mA; DC: LS C100
Protocols for communication with IT backends
OCPP 1.6 JSON
Meter / German calibration law
AC: MID-compliant smart meter with SAM® storage and display module; DC: with SAM® storage and display module
Base mounted (bm)
IP protection class
Approx. 300 kg, depending on added options
Swivelling lever, built-in space for one profile half cylinder
Environmental operating temperature
-25 °C to +40 °C
CE, RoHS, REACH, GPSD, WEEE
DIN EN 61851-1; DIN EN 61851-23; DIN IEC/TS 61439-7
Floor mounted version: 1995 x 640 x 511 mm
SMC base + base filler granulate
For mounting in ground
