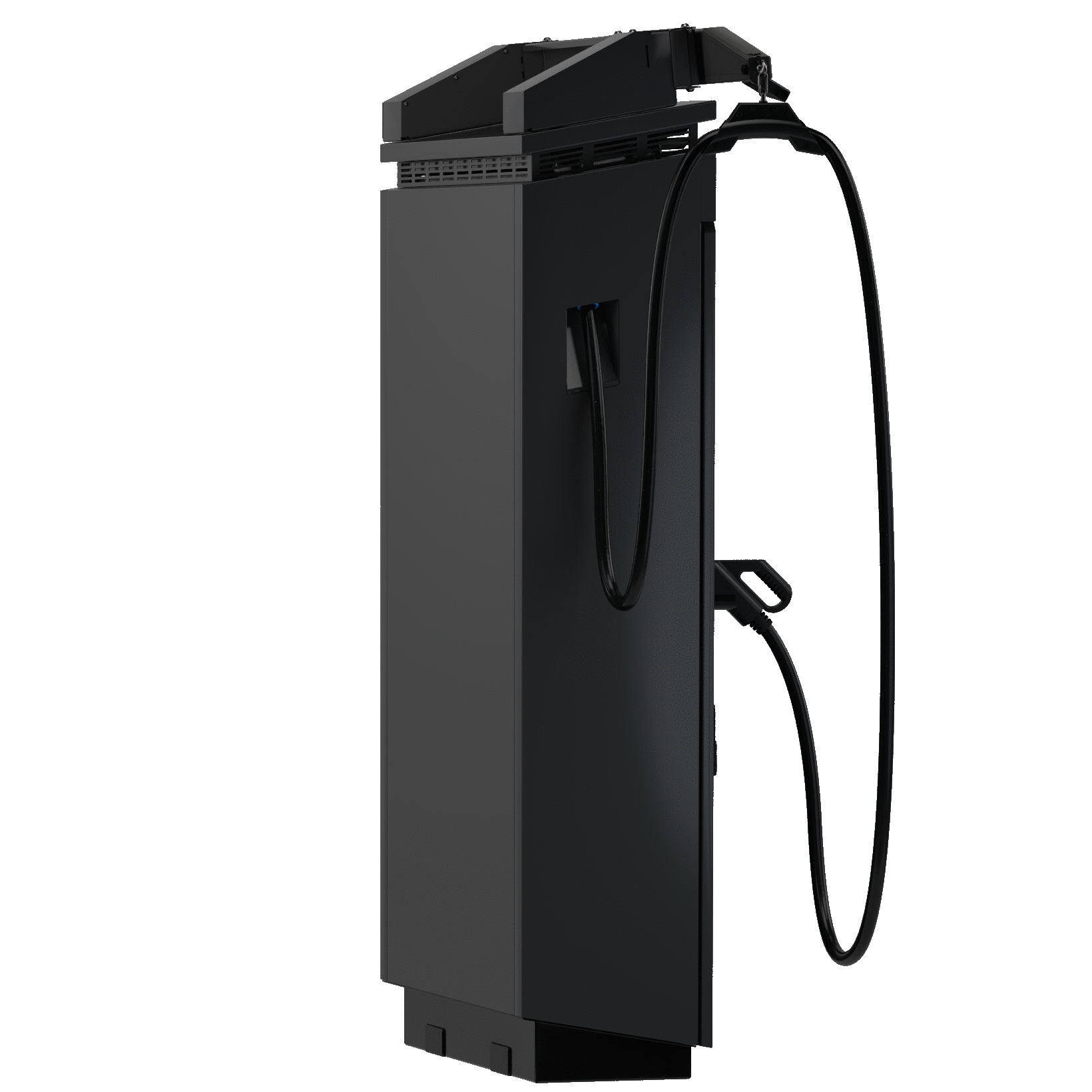

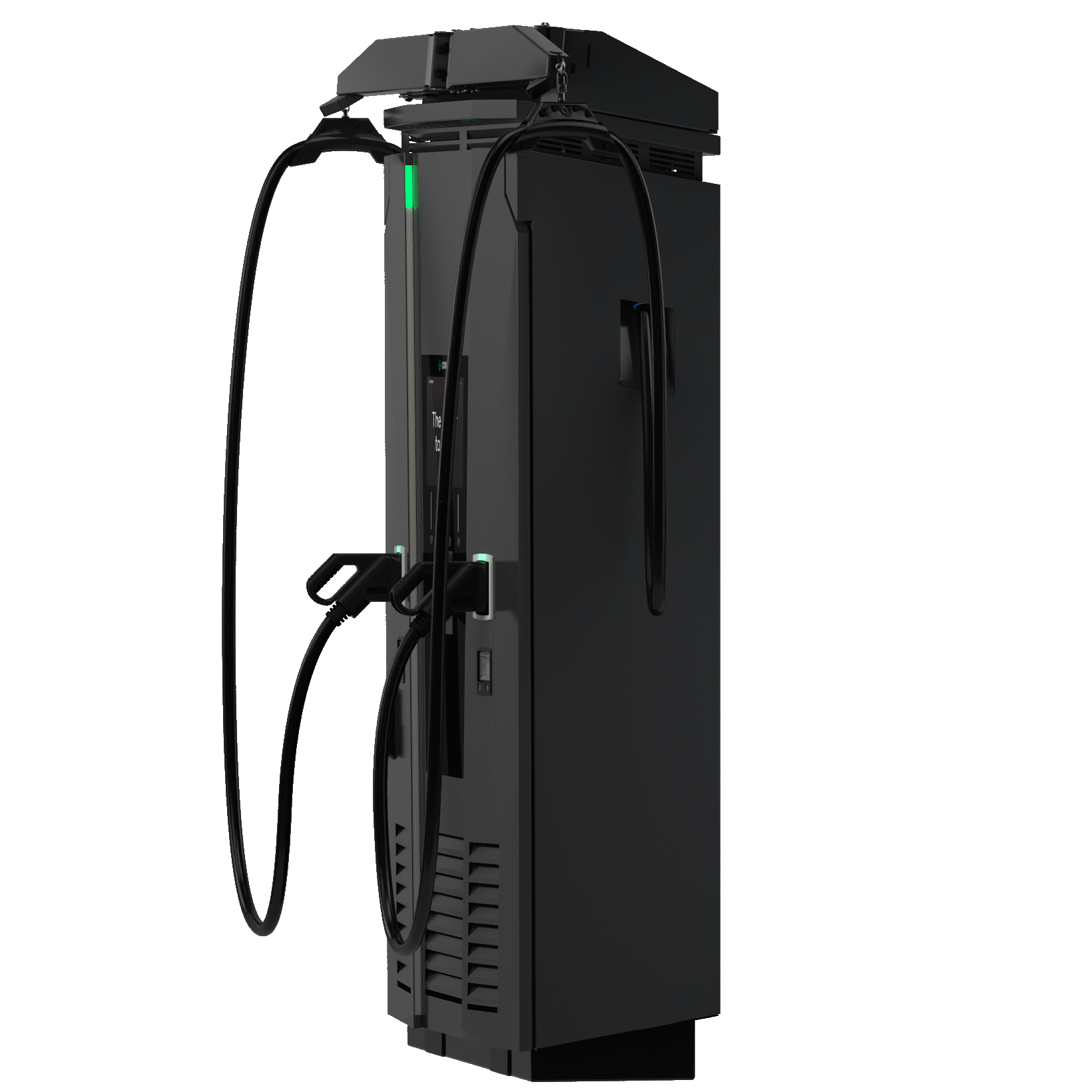

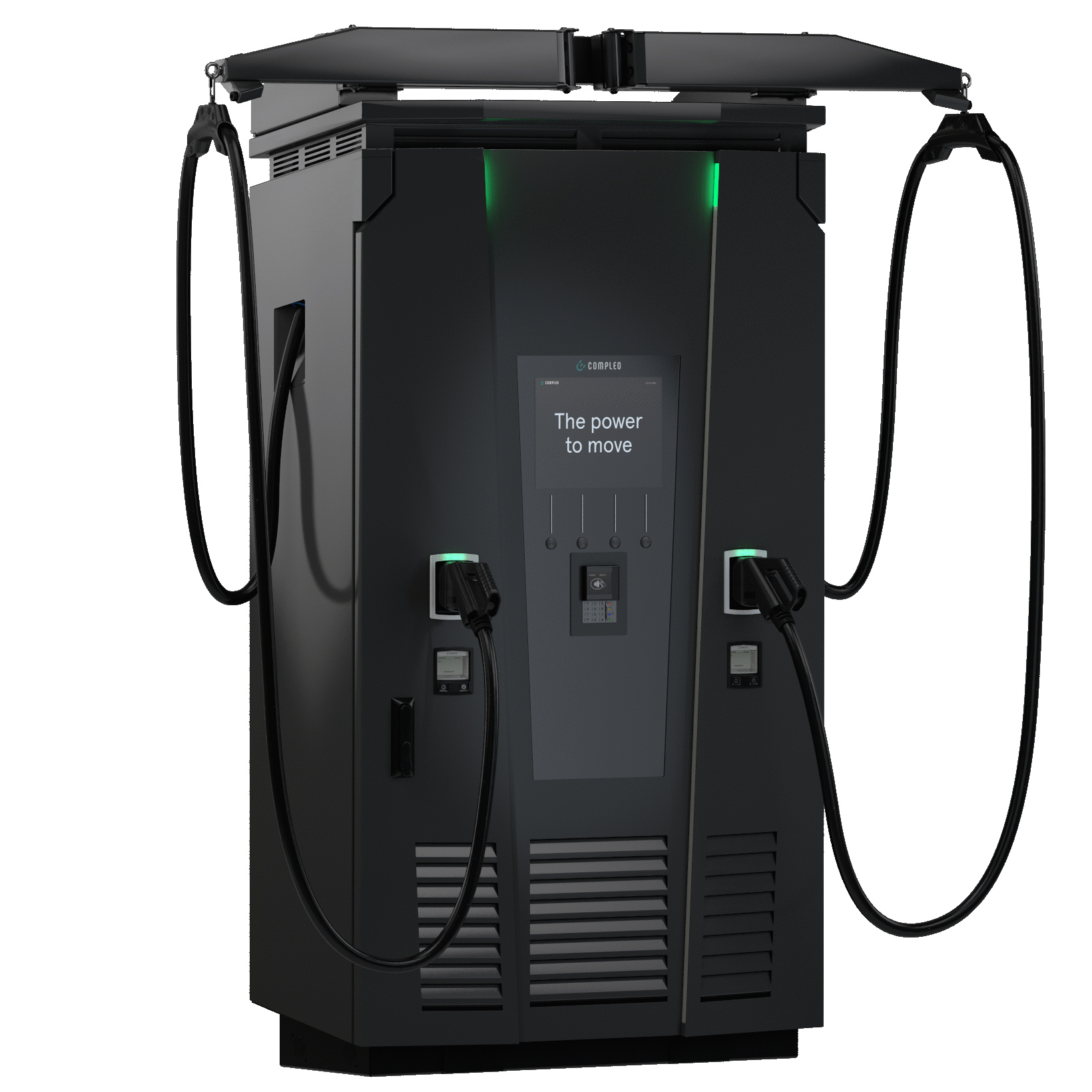

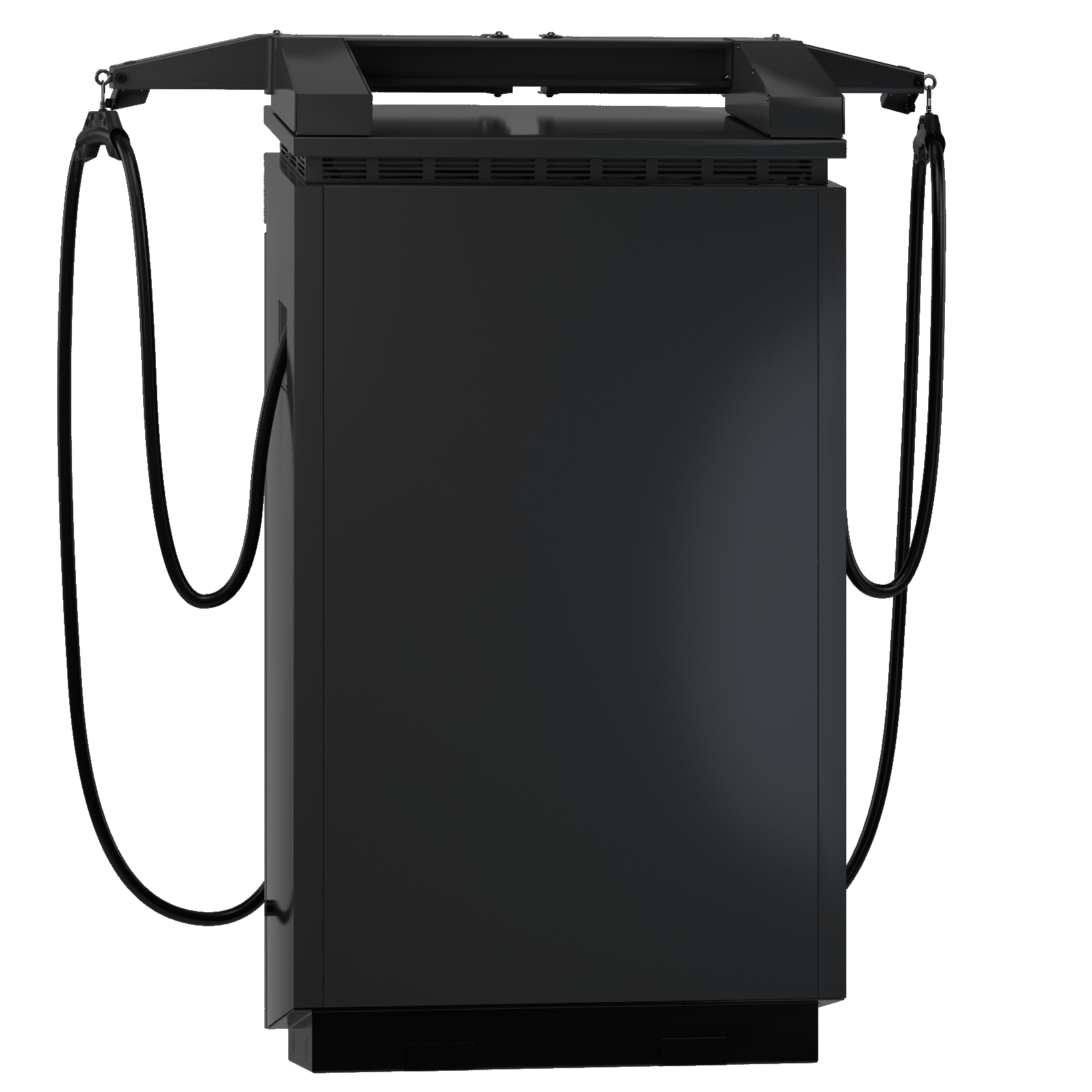

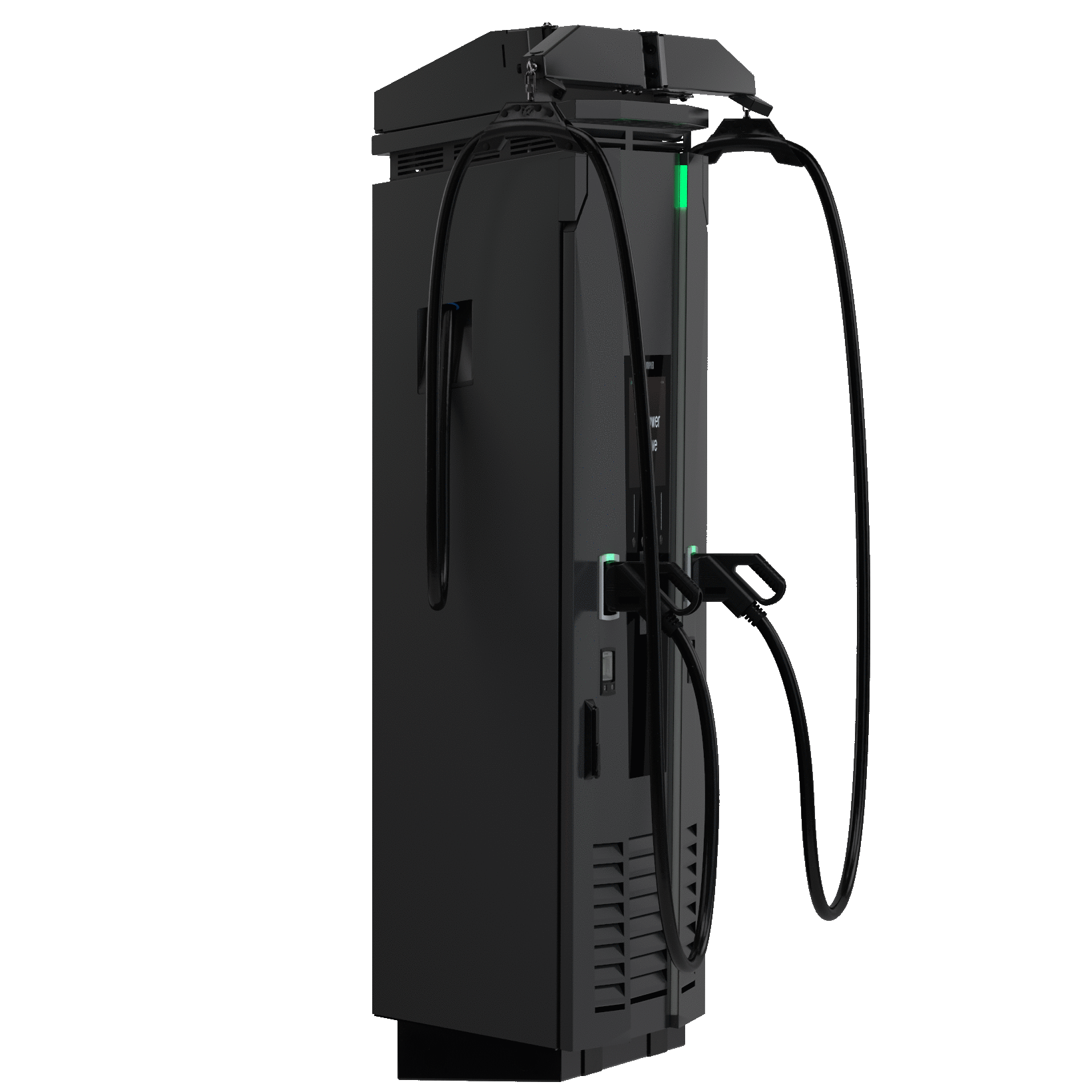

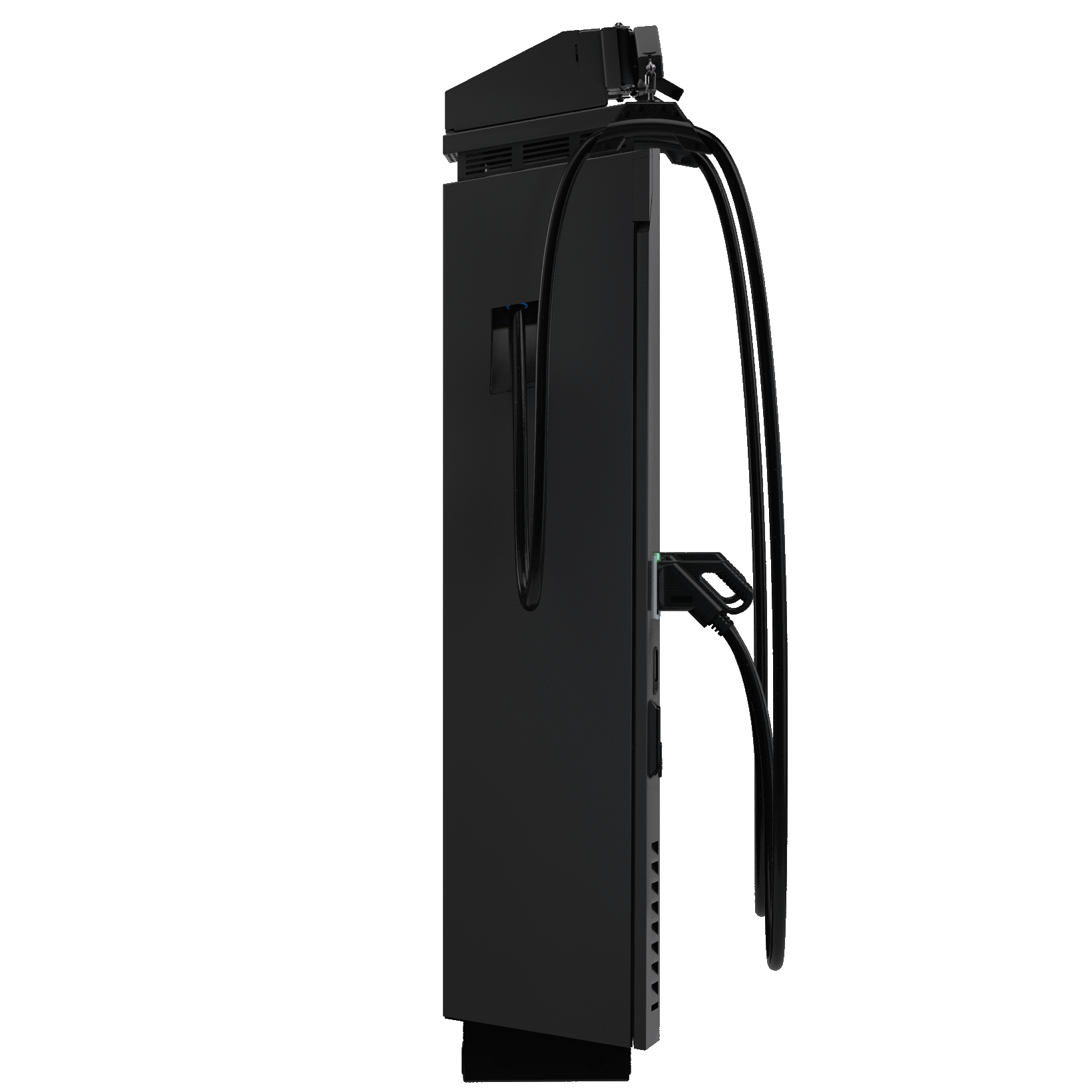

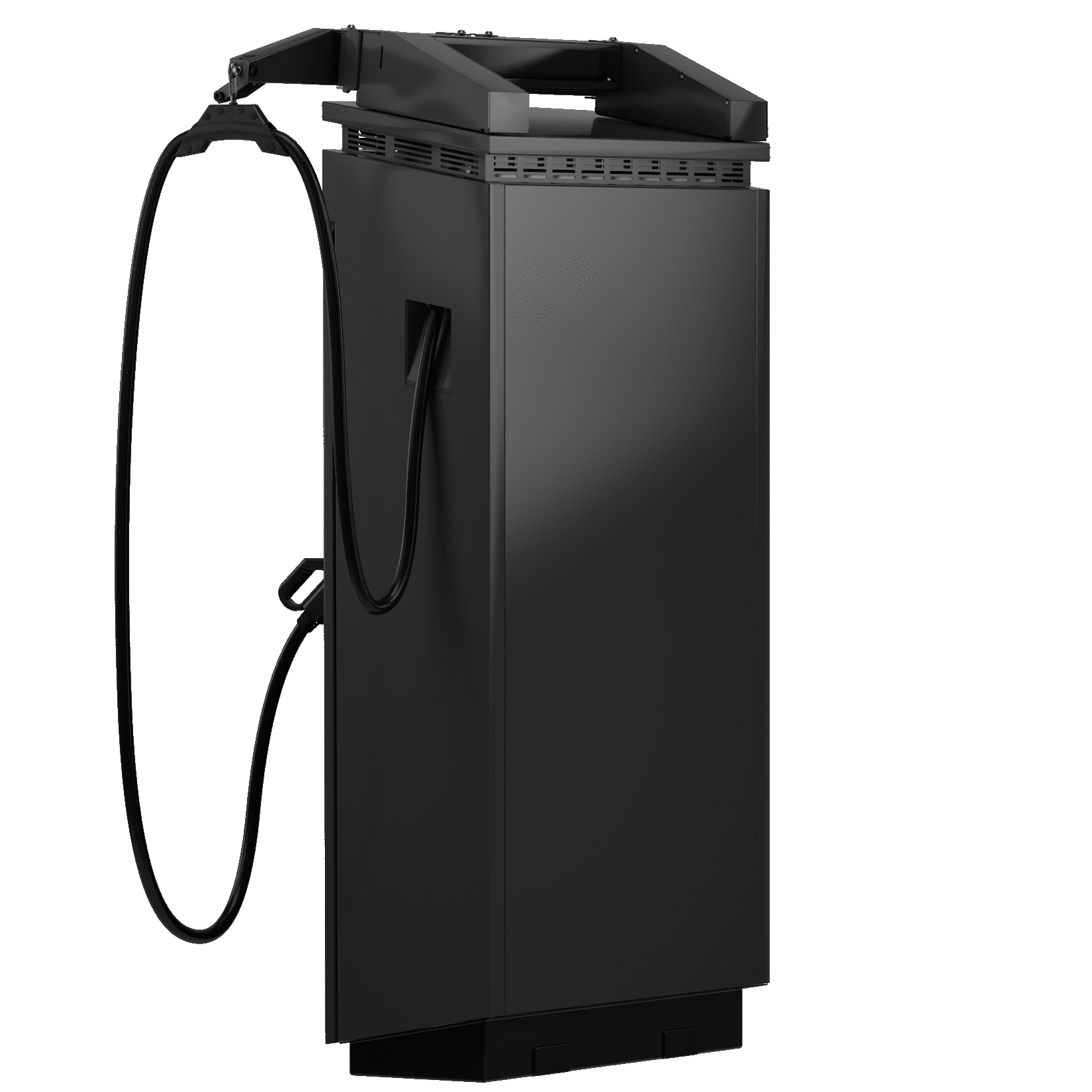

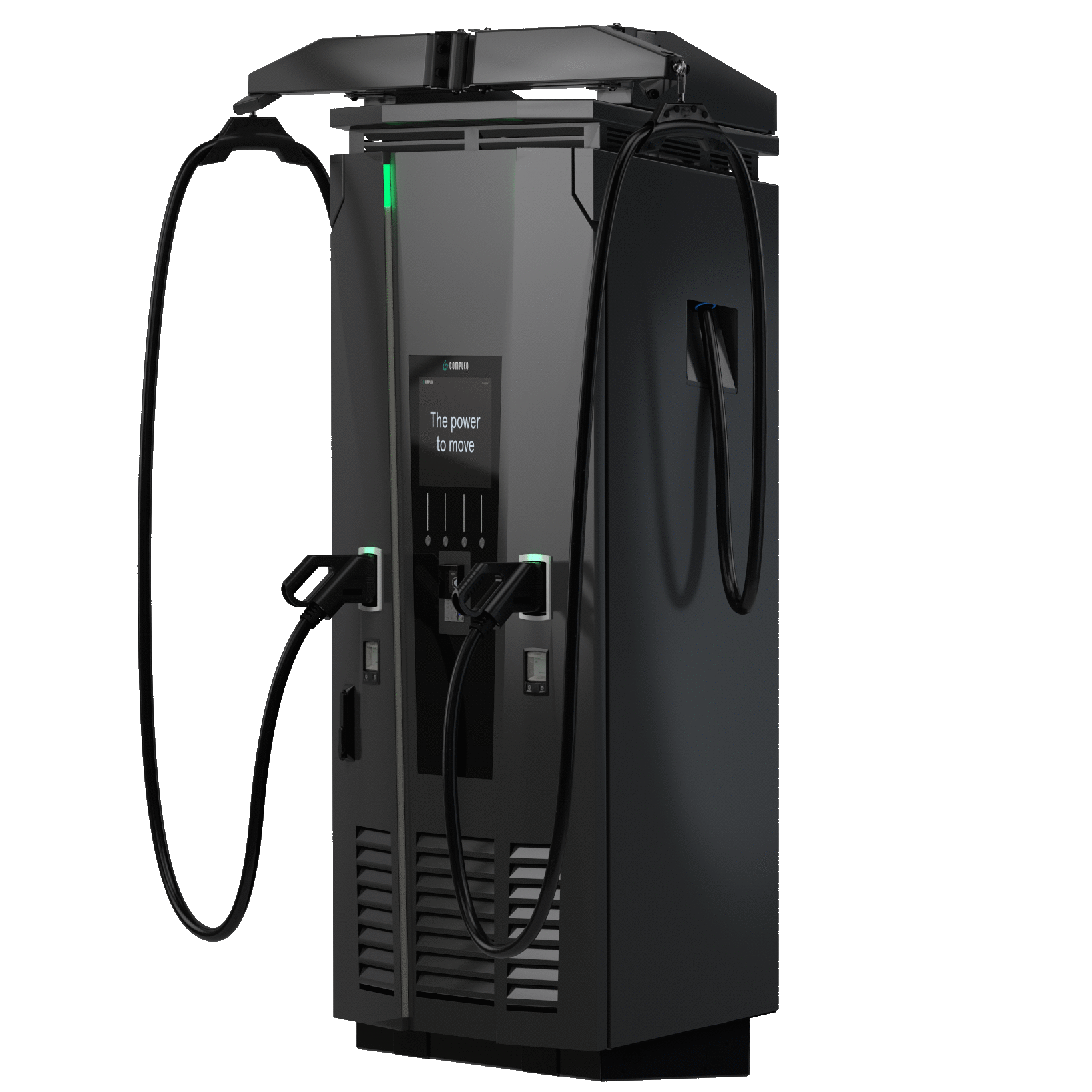

360°

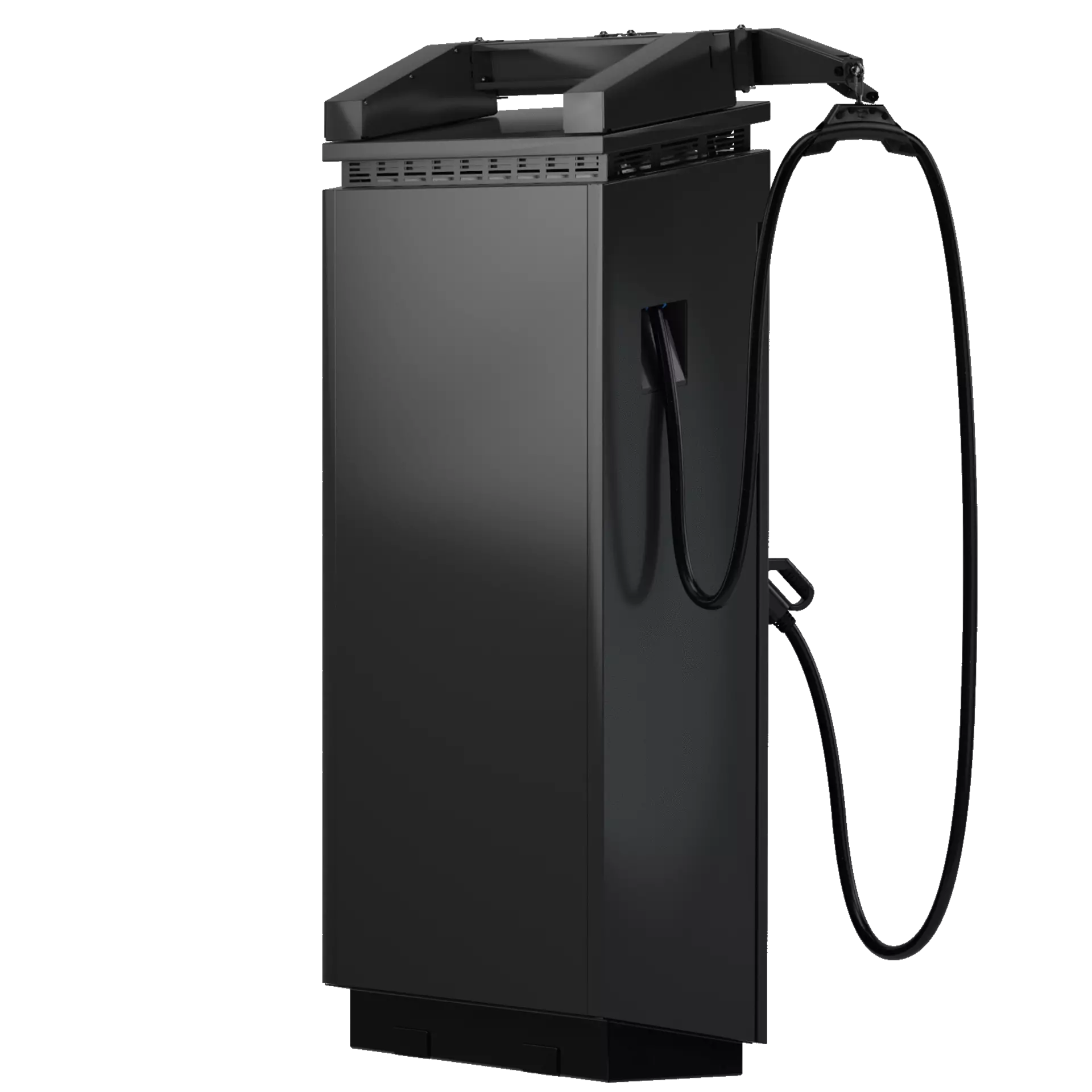

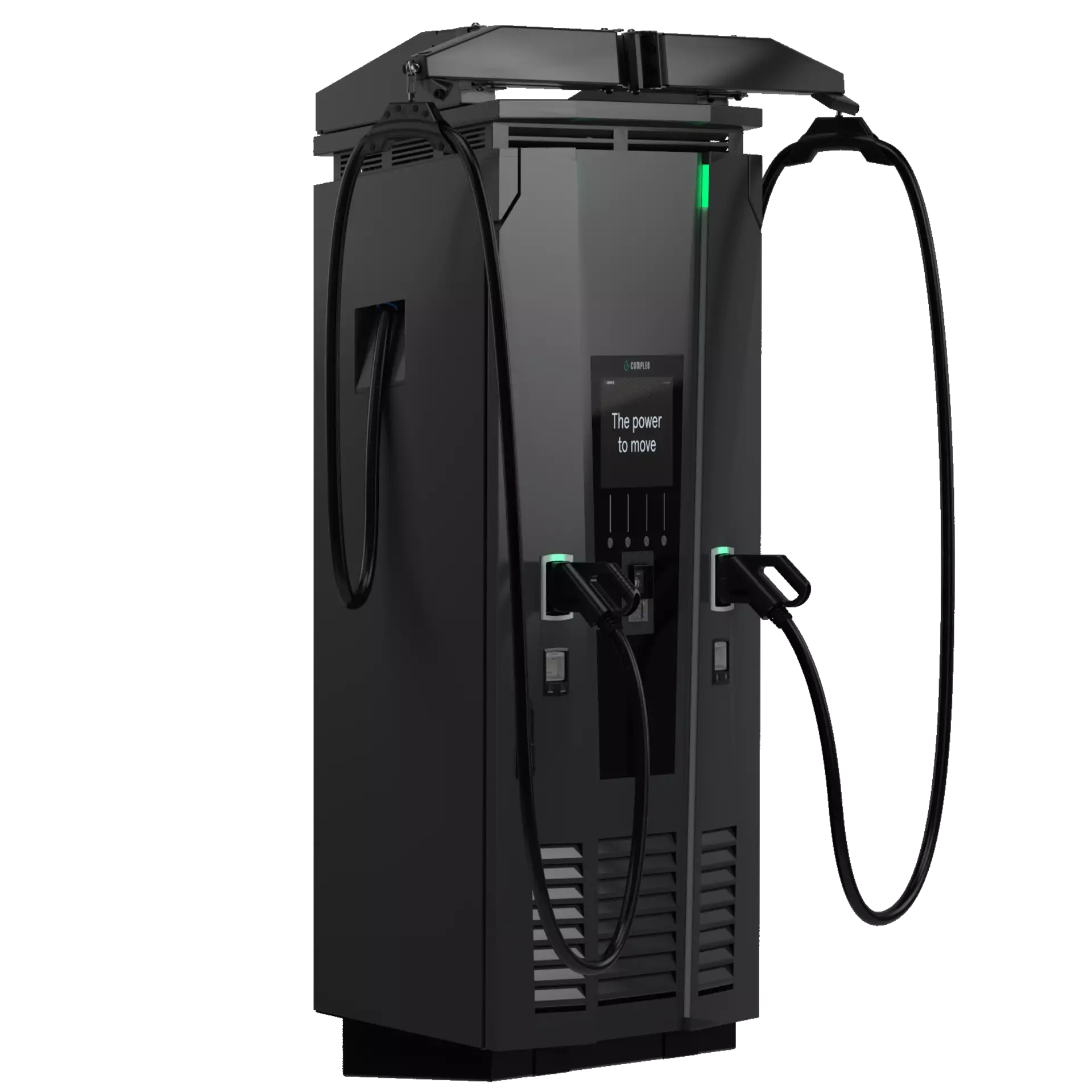

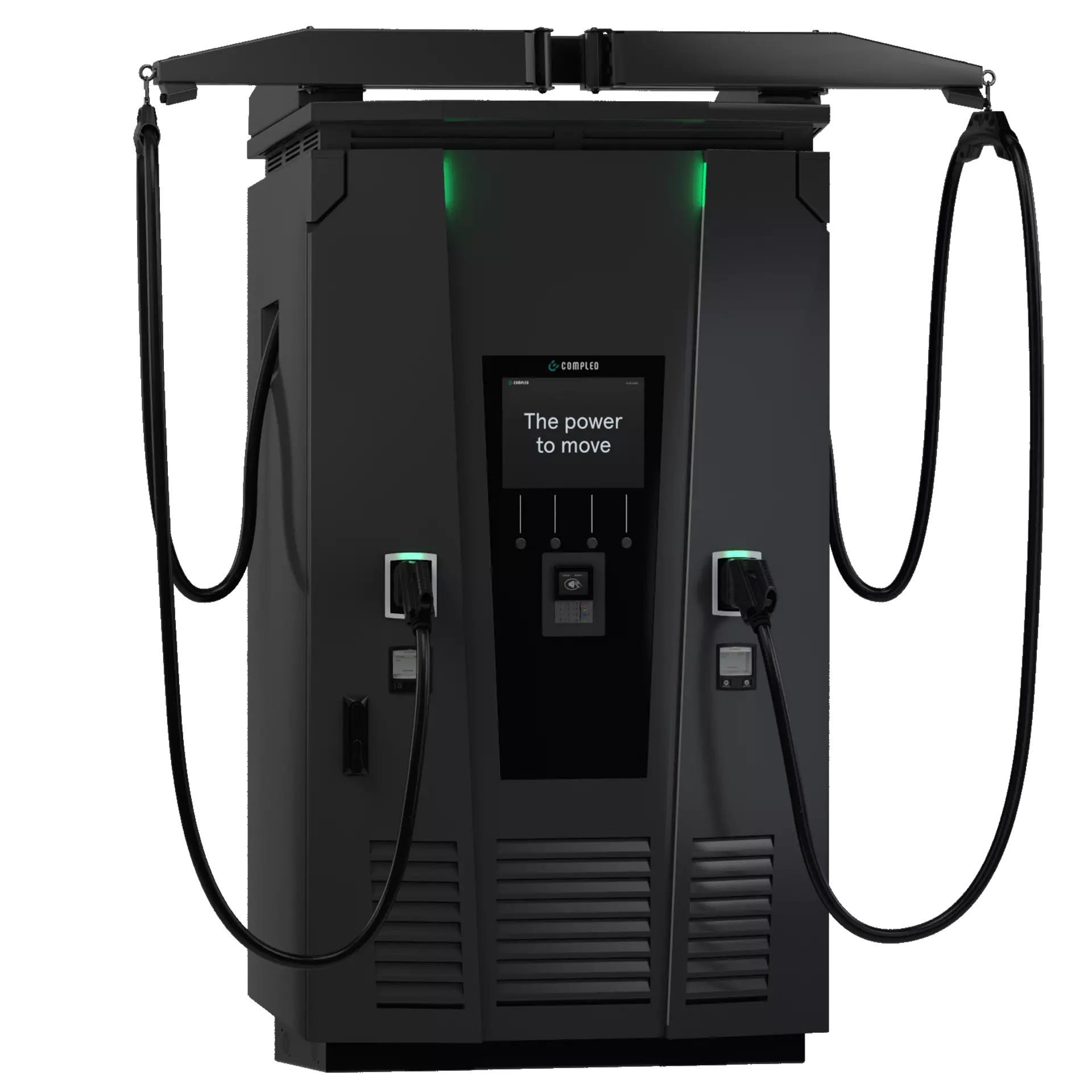

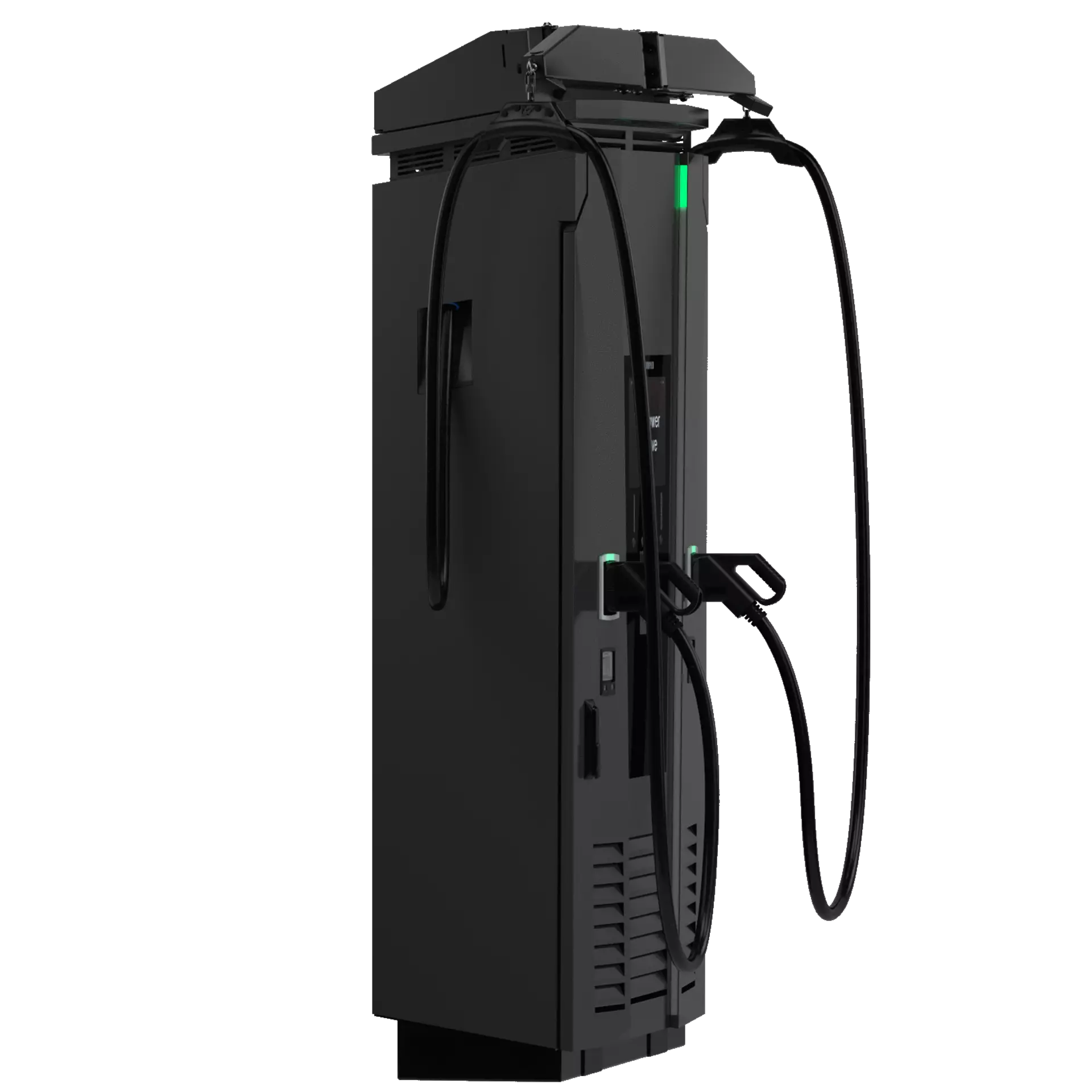

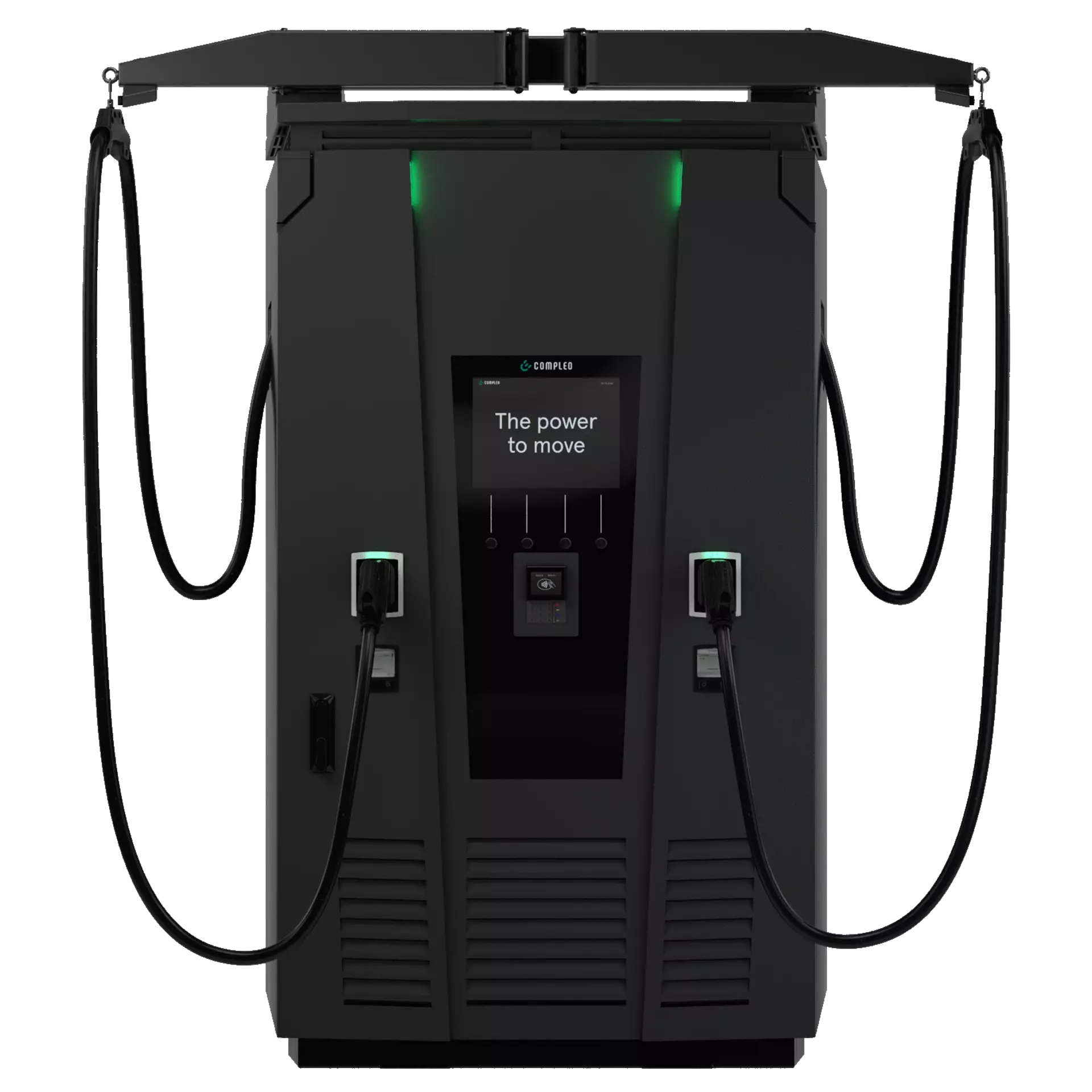

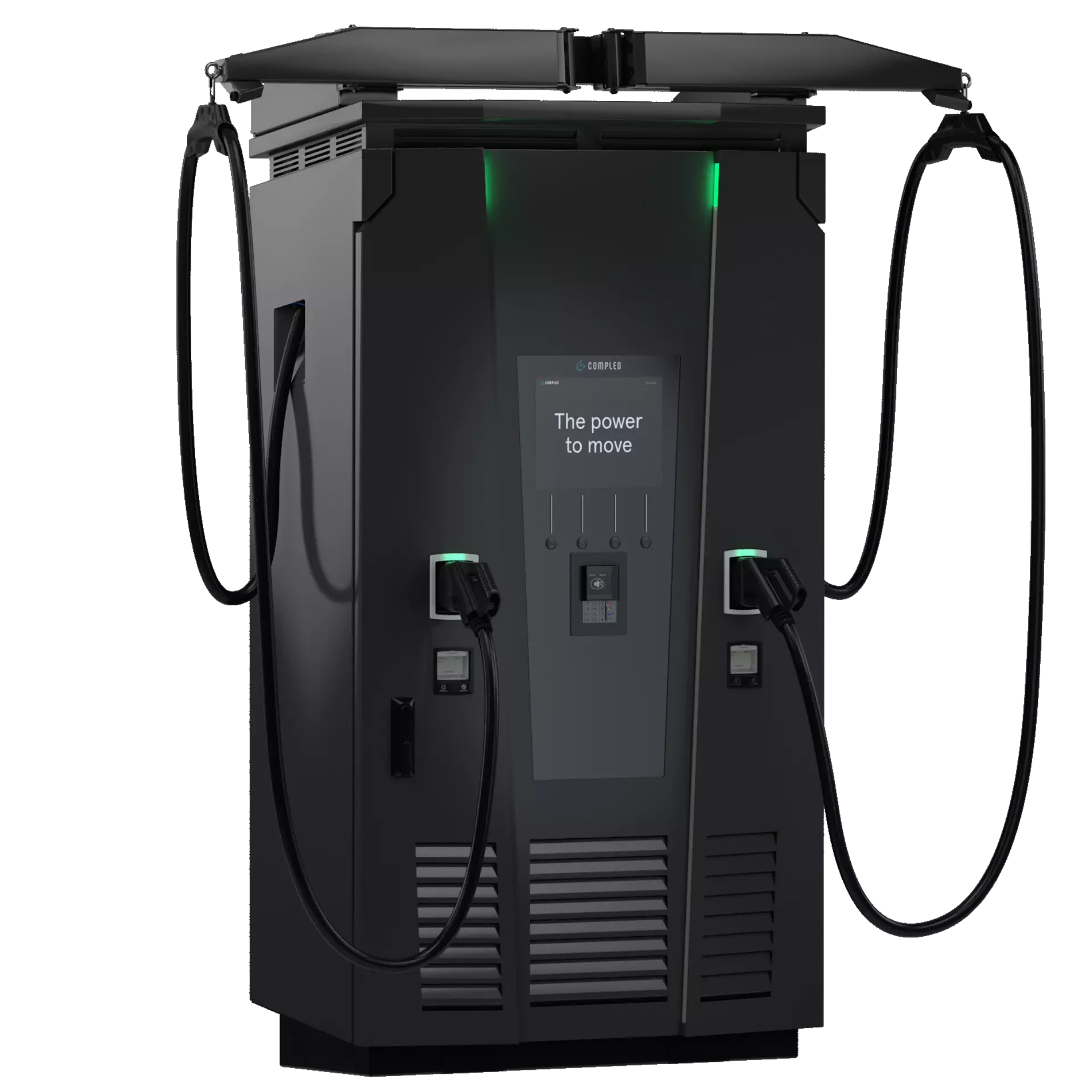

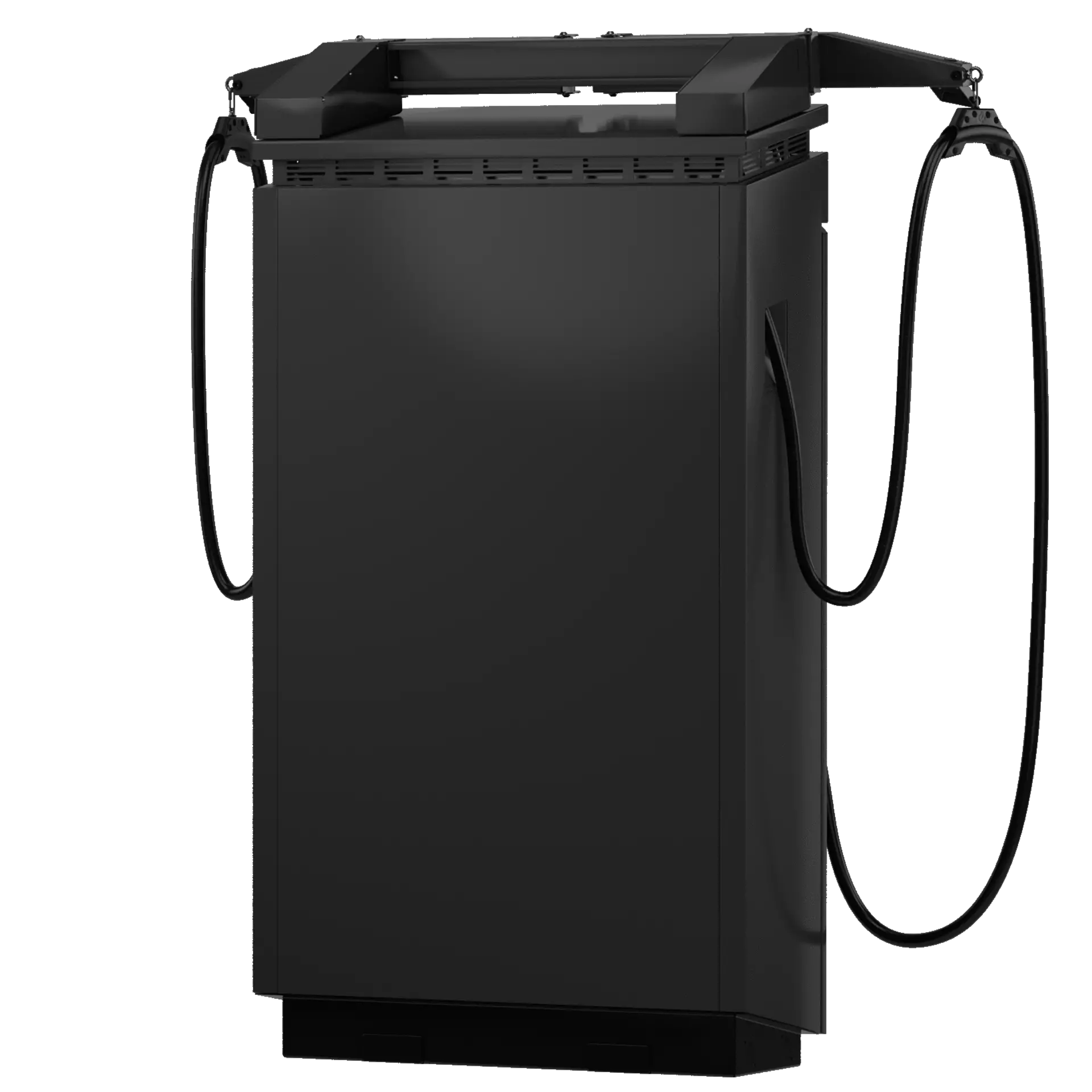

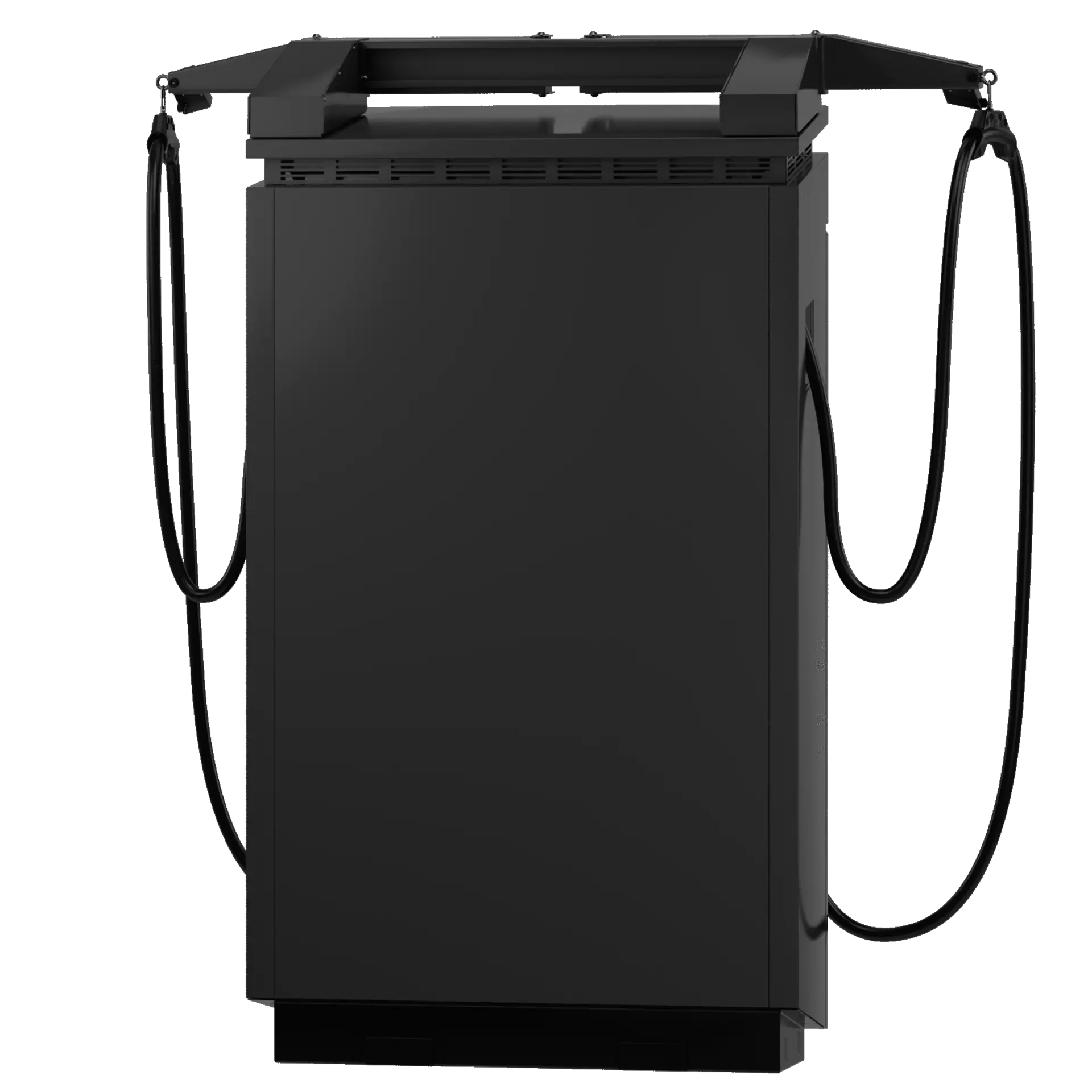

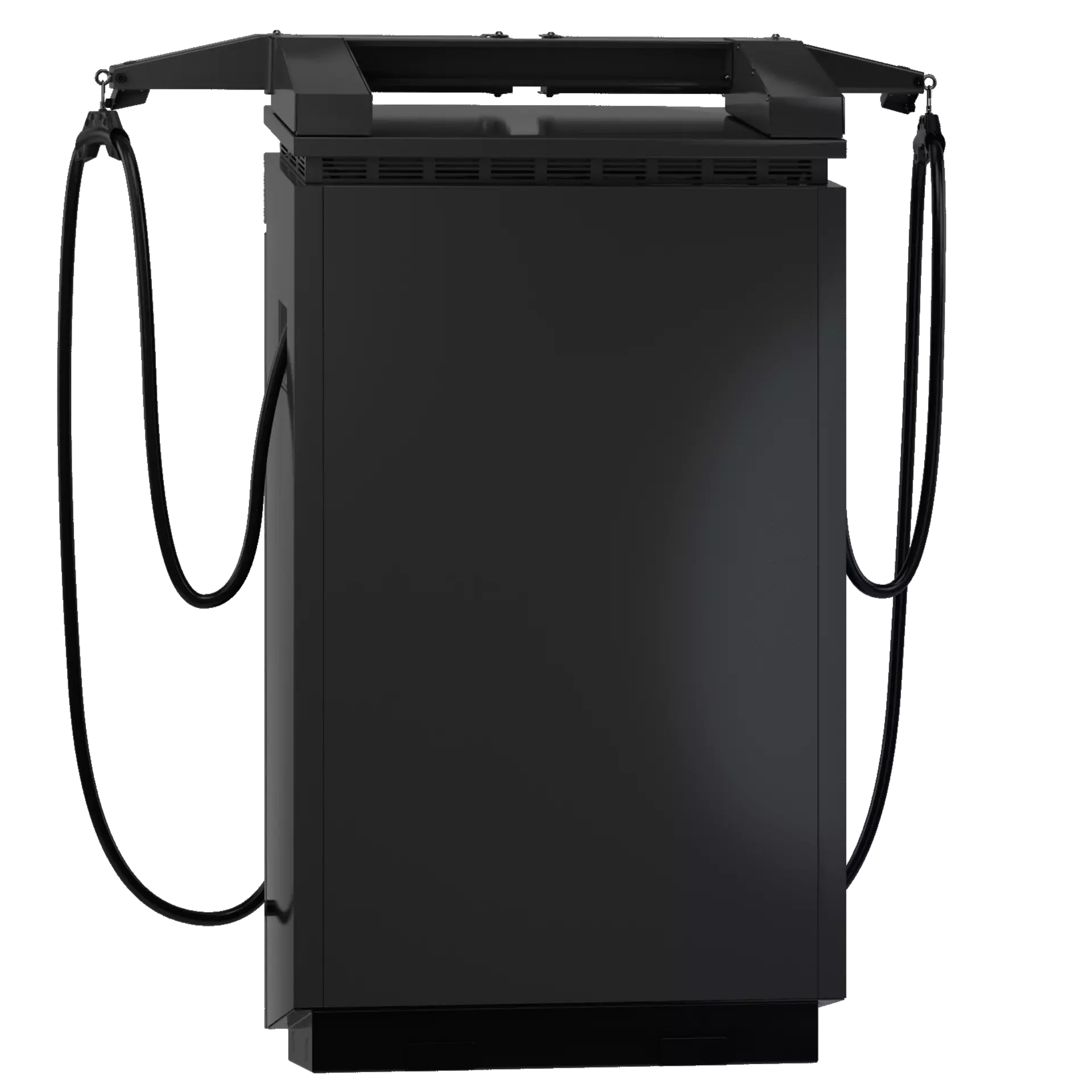

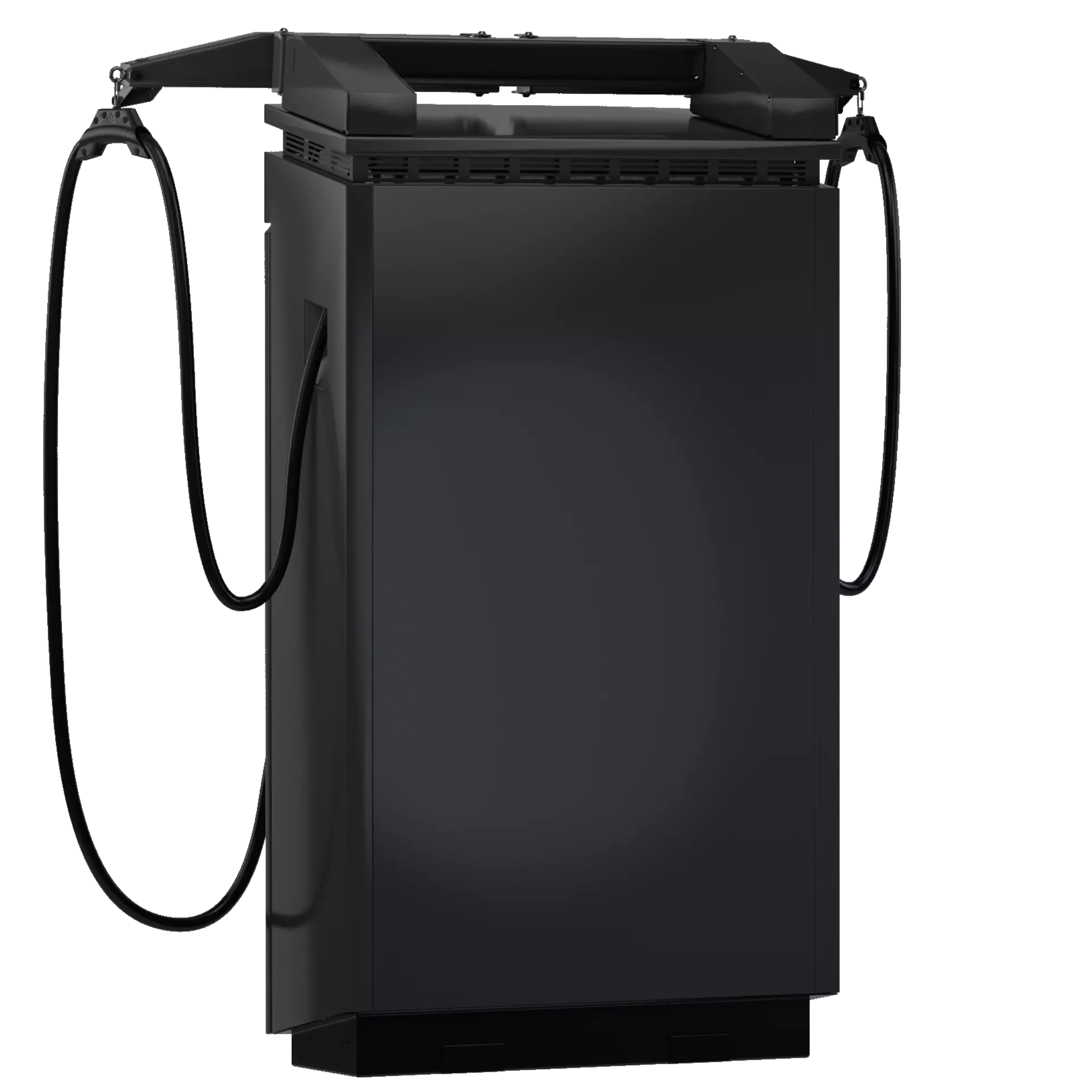

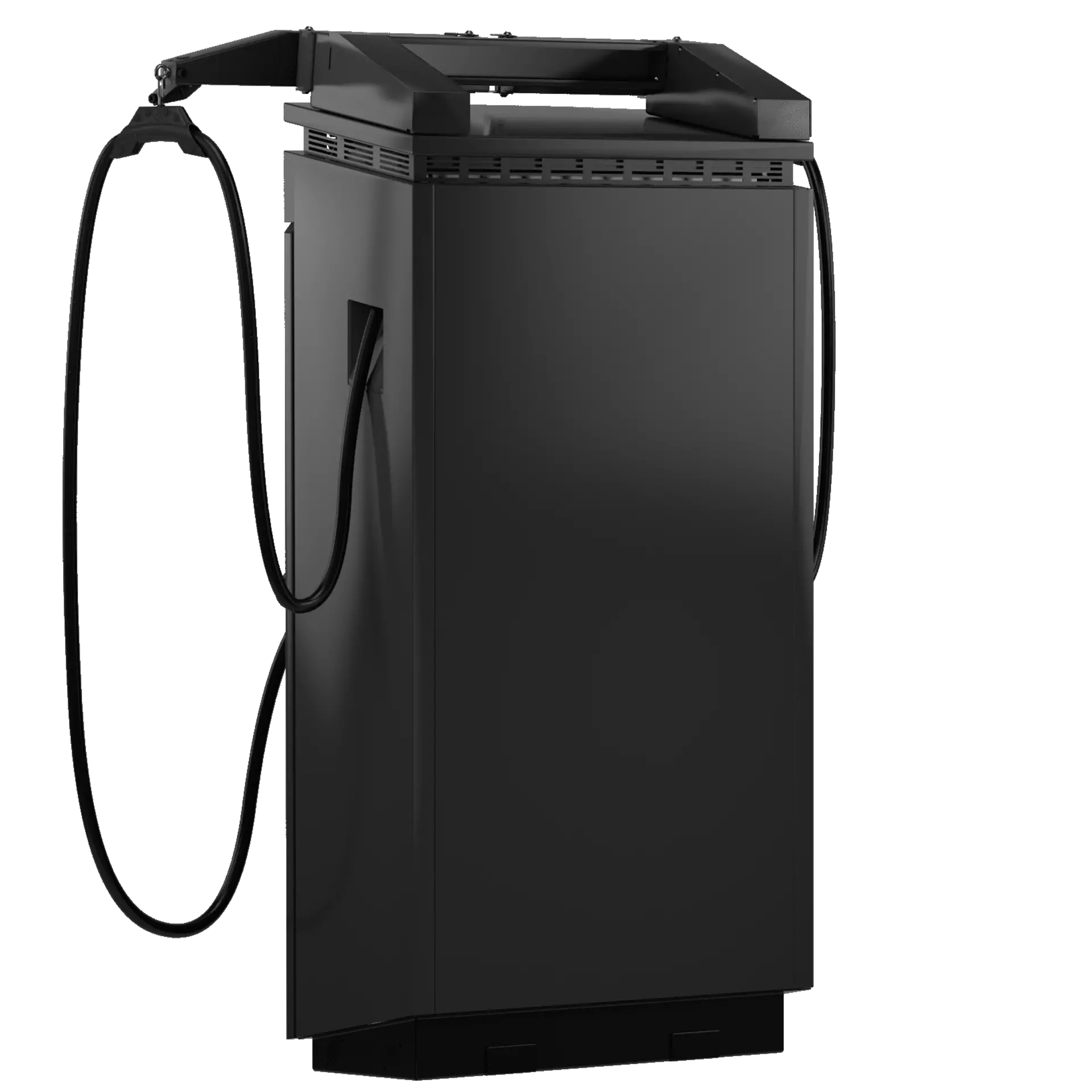

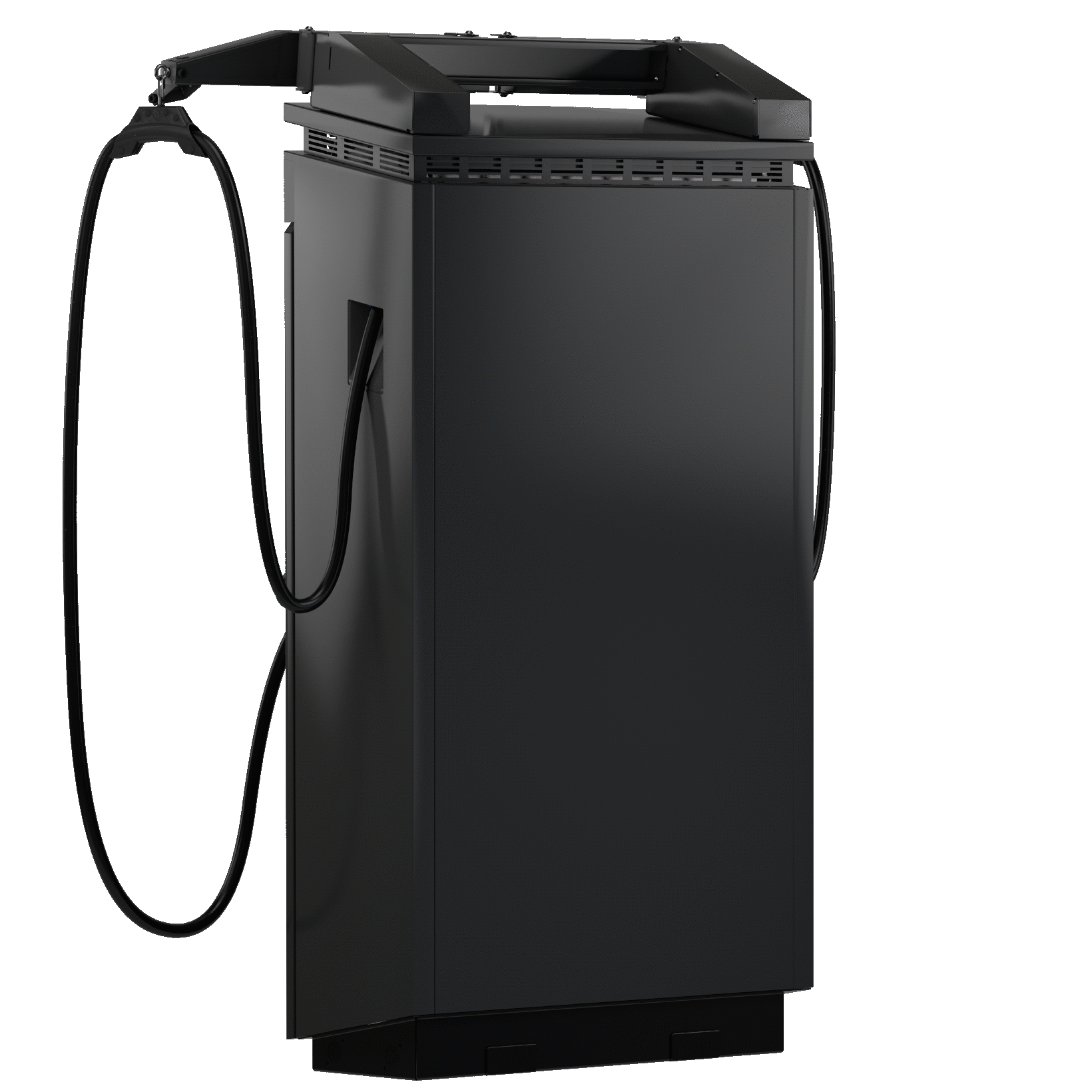

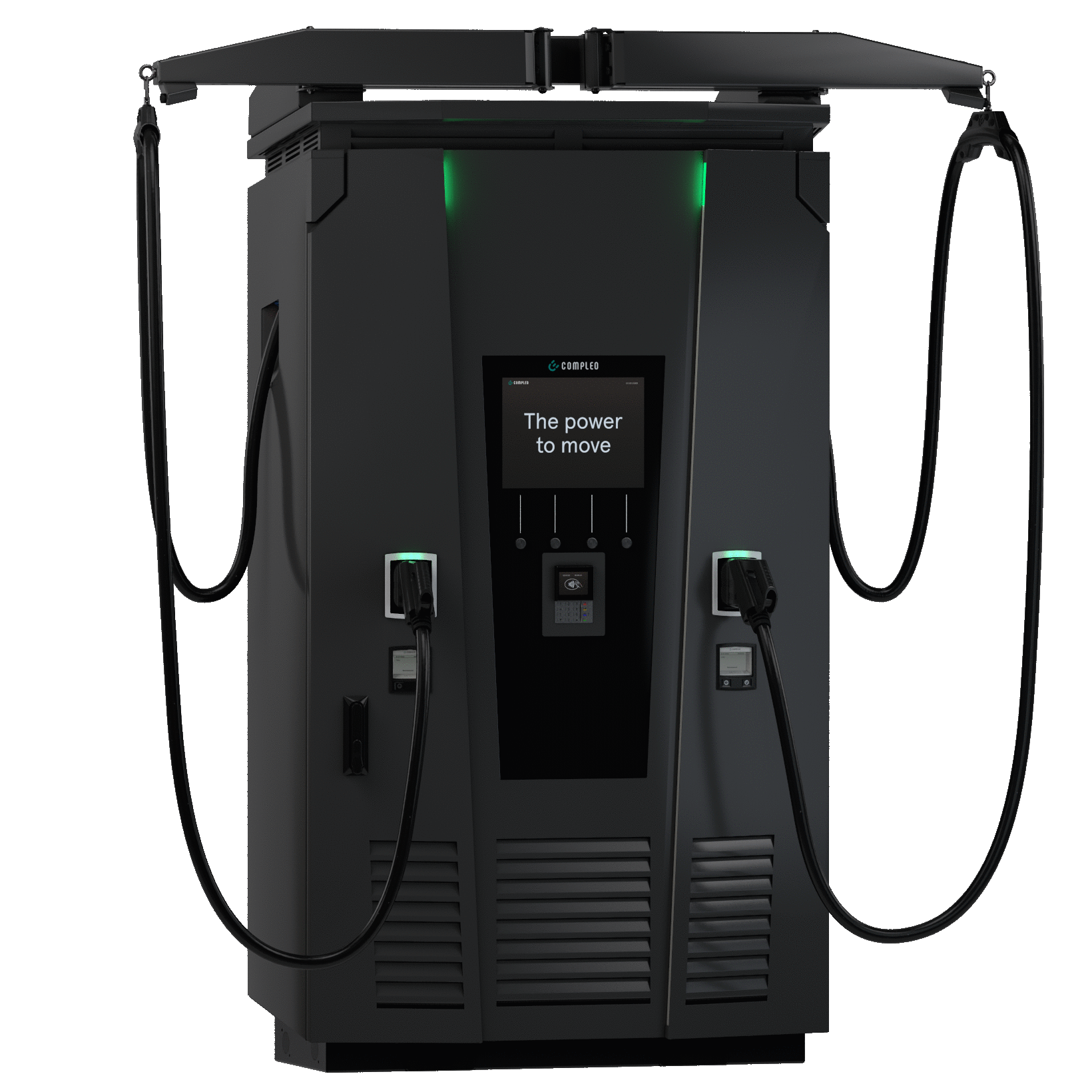

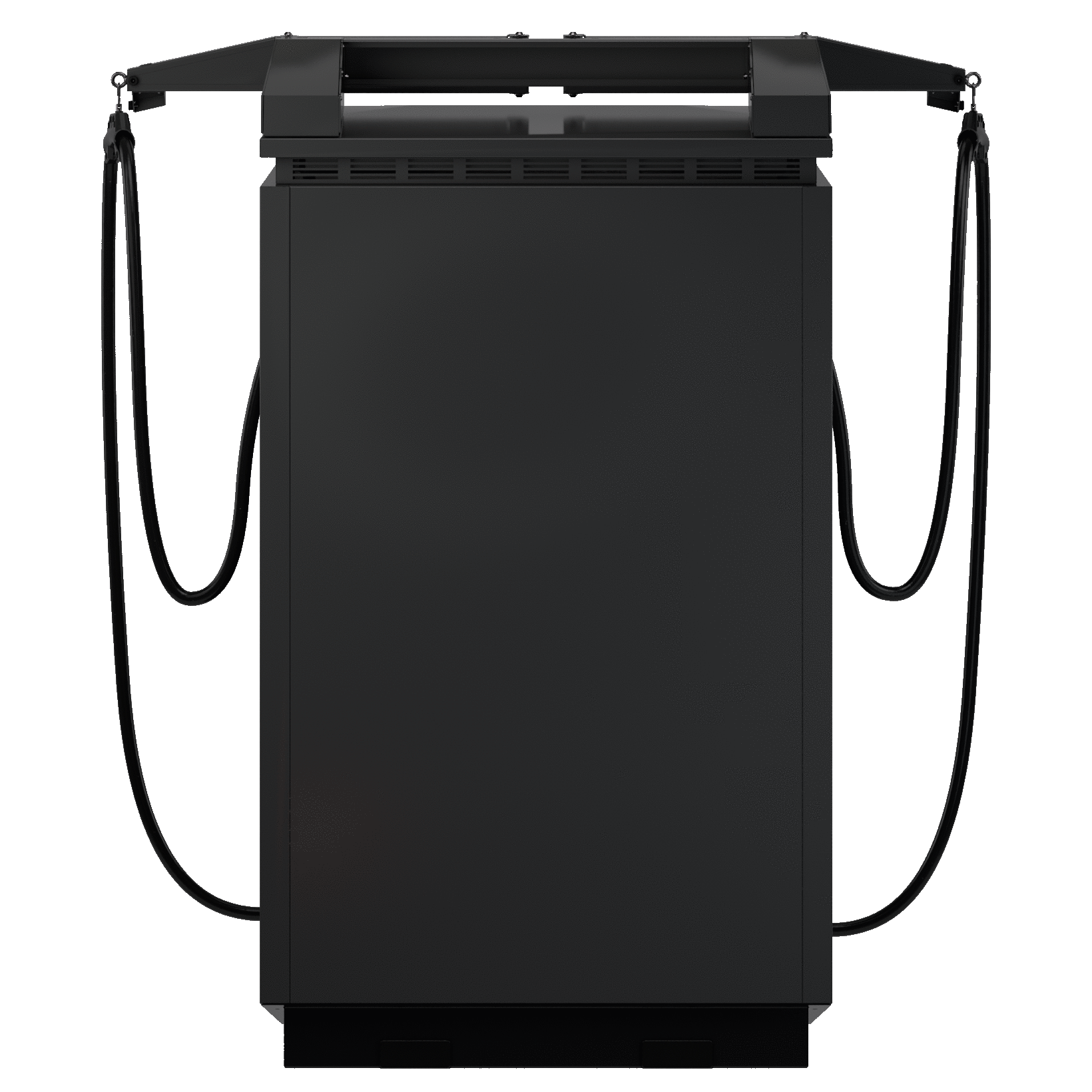

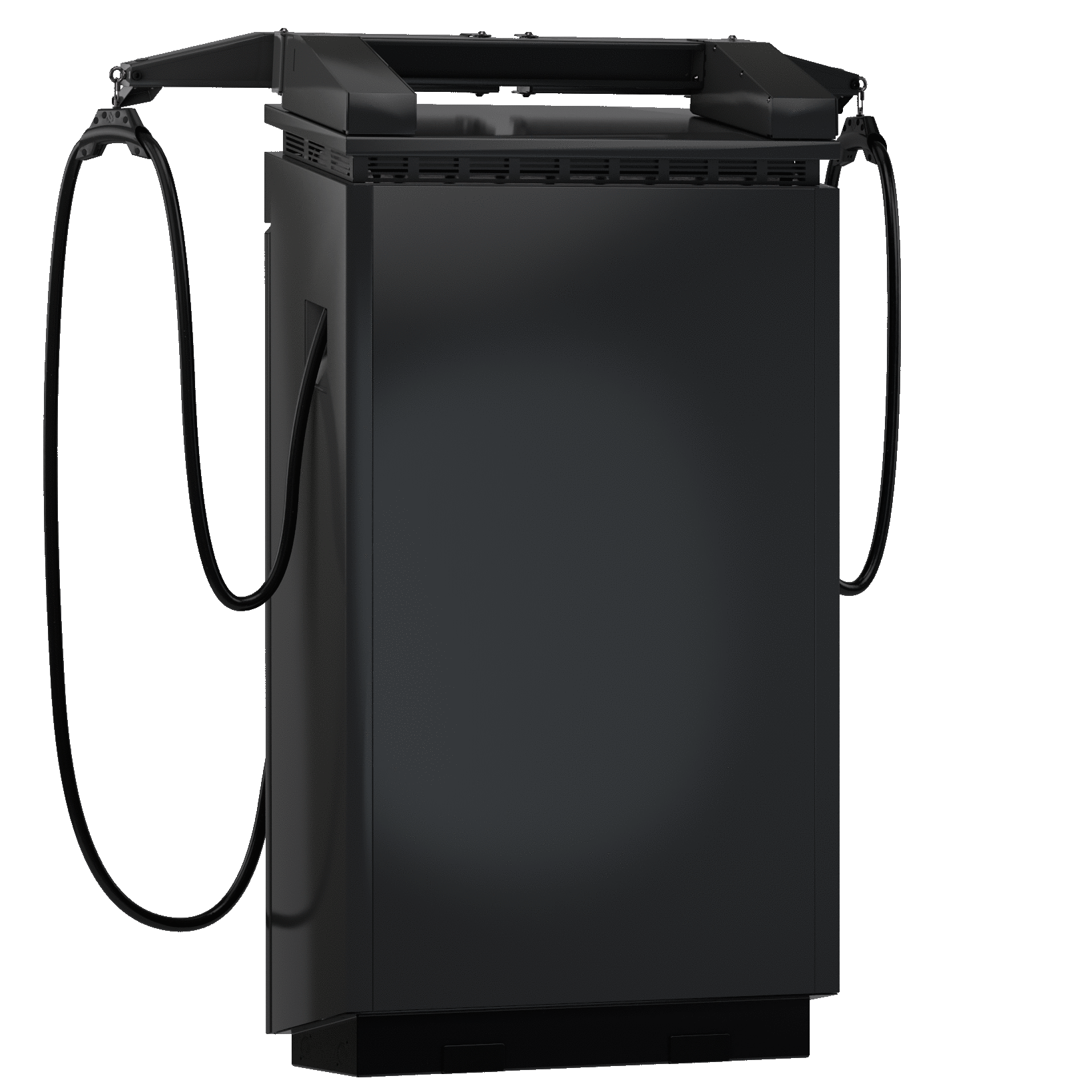

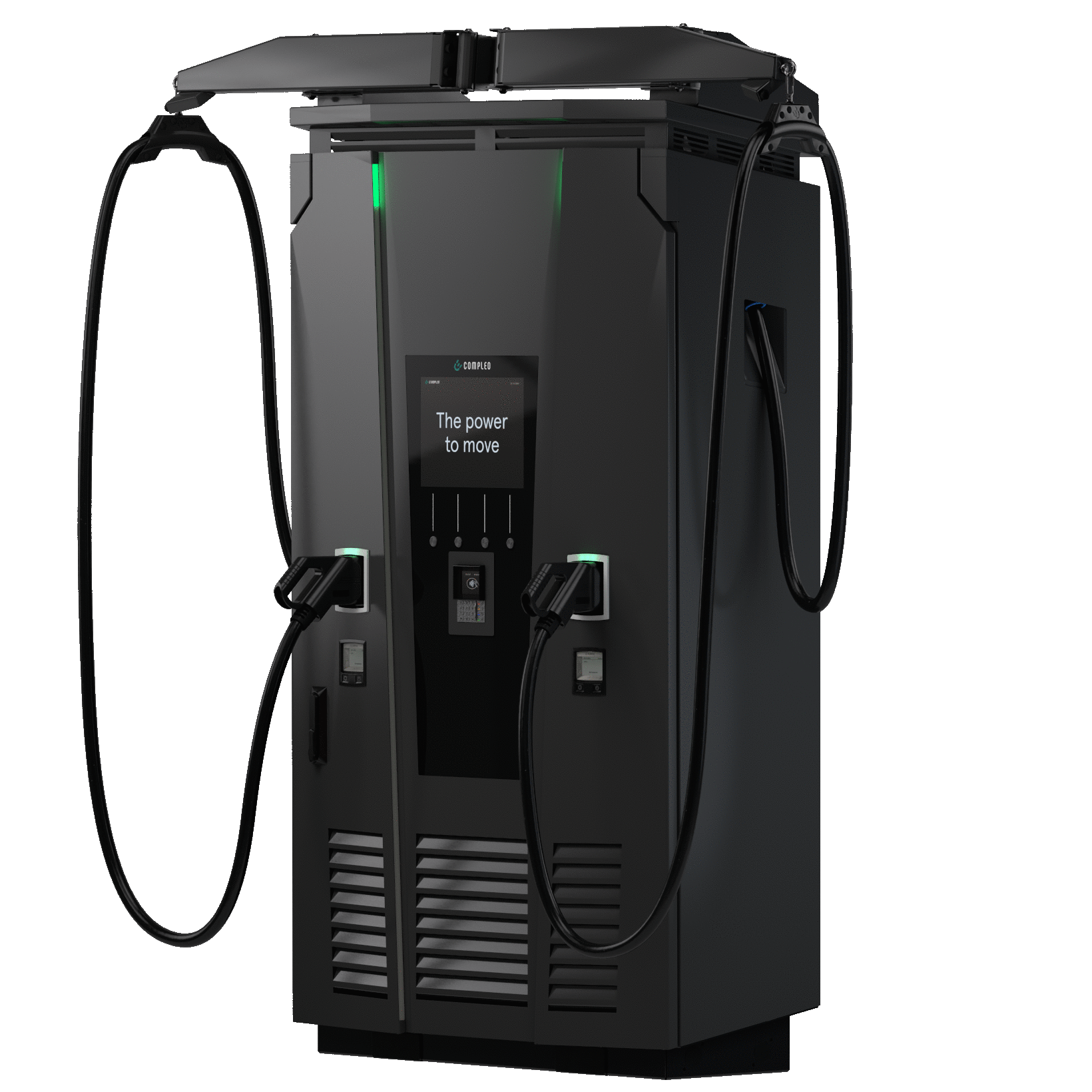

eTower 200

HPC charging station
High power, greater flexibility

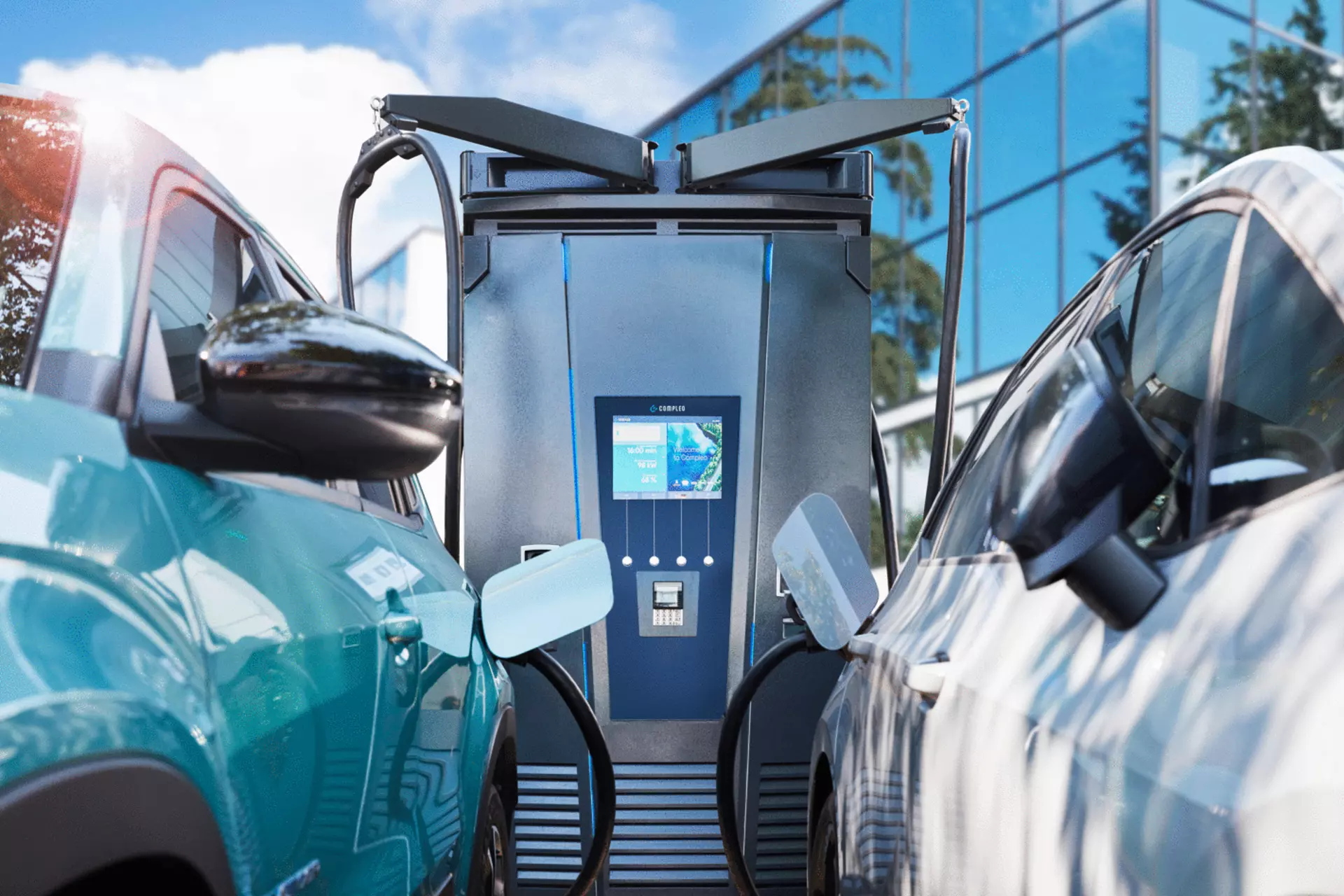

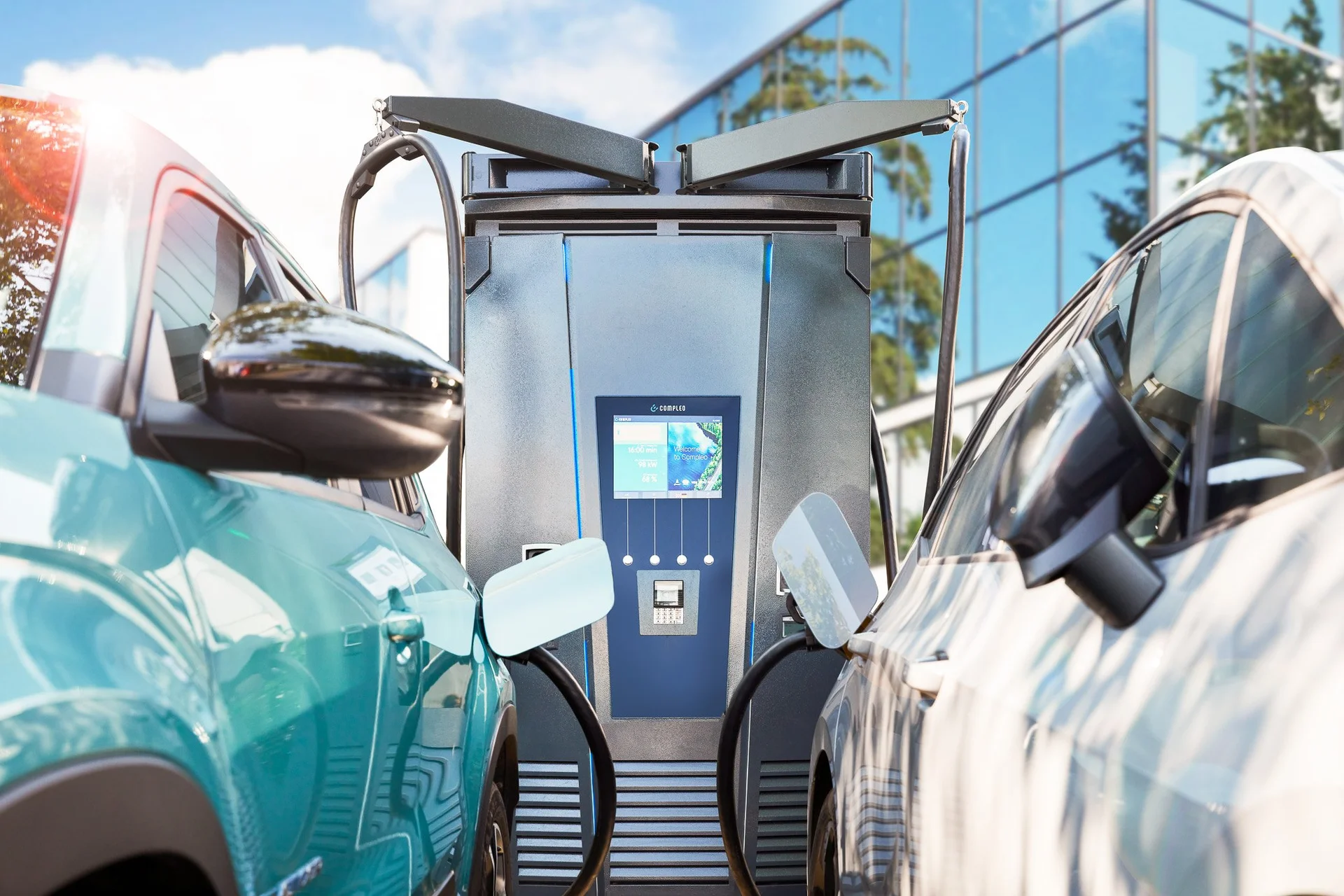

Powerful and reliable: The eTower is your future-proof high-power charging solution. It is particularly flexible to install and at the same time very easy to use barrier-free. For parallel charging of two vehicles with a total of up to 200 kW DC

  • Developed and produced in Germany
  • Cable management (6 m cable length)
  • Optional anti-theft protection for DC charging cables
  • More revenue thanks to optimal power distribution in 29 kW increments
  • Quietest charging station in its class (49.4 dBA at a distance of 3 m)
  • Flexible placement – directly in front of walls, fences or on narrow verges
  • Easy installation thanks to WireHub, installation by forklift or crane
  • Durable with stainless steel housing and innovative ventilation
  • Integrated load management (AC - DC or DC - DC chargers)
  • Barrier-free access

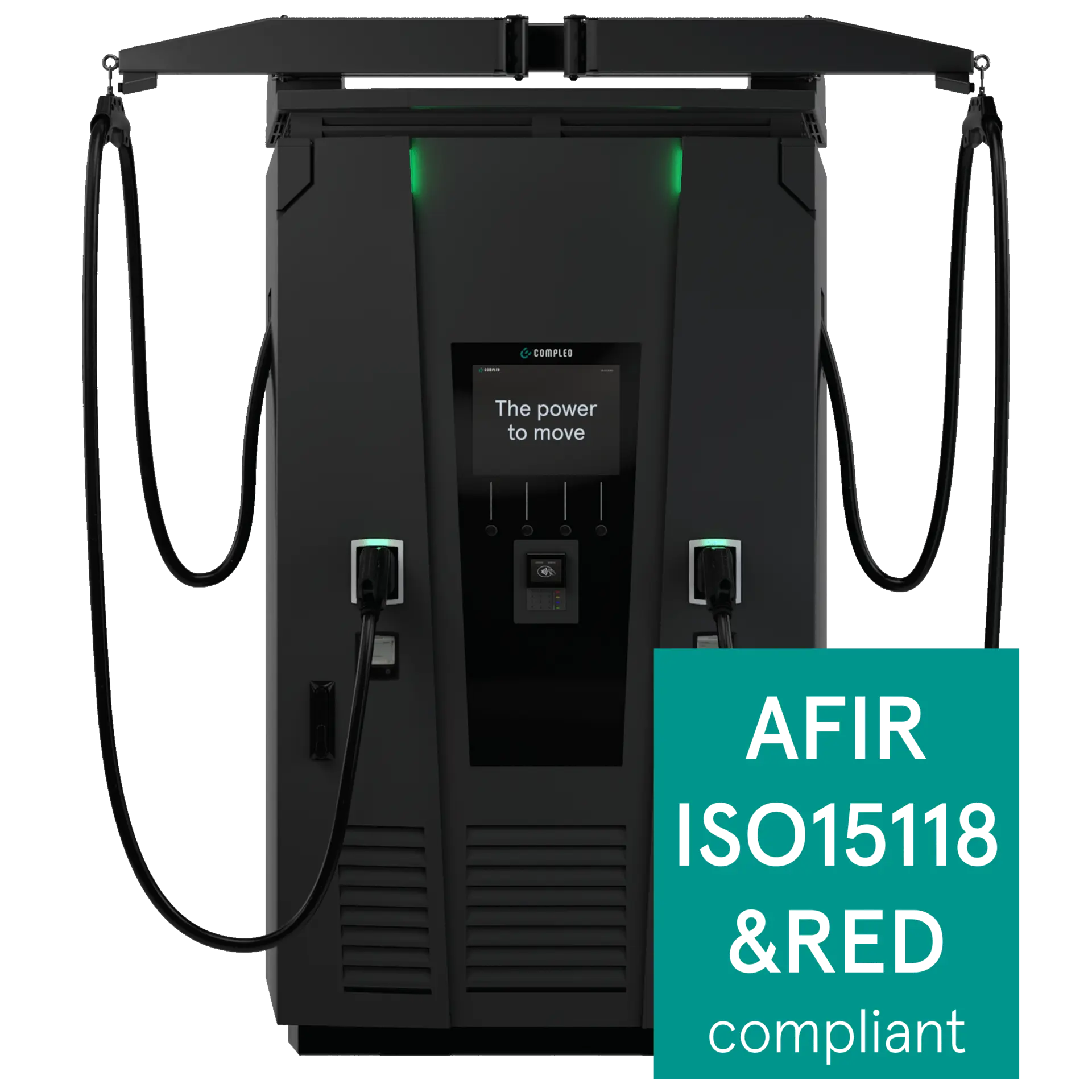

  • AFIR and calibration law compliant
  • ISO 15118 hardware-ready



Loading...

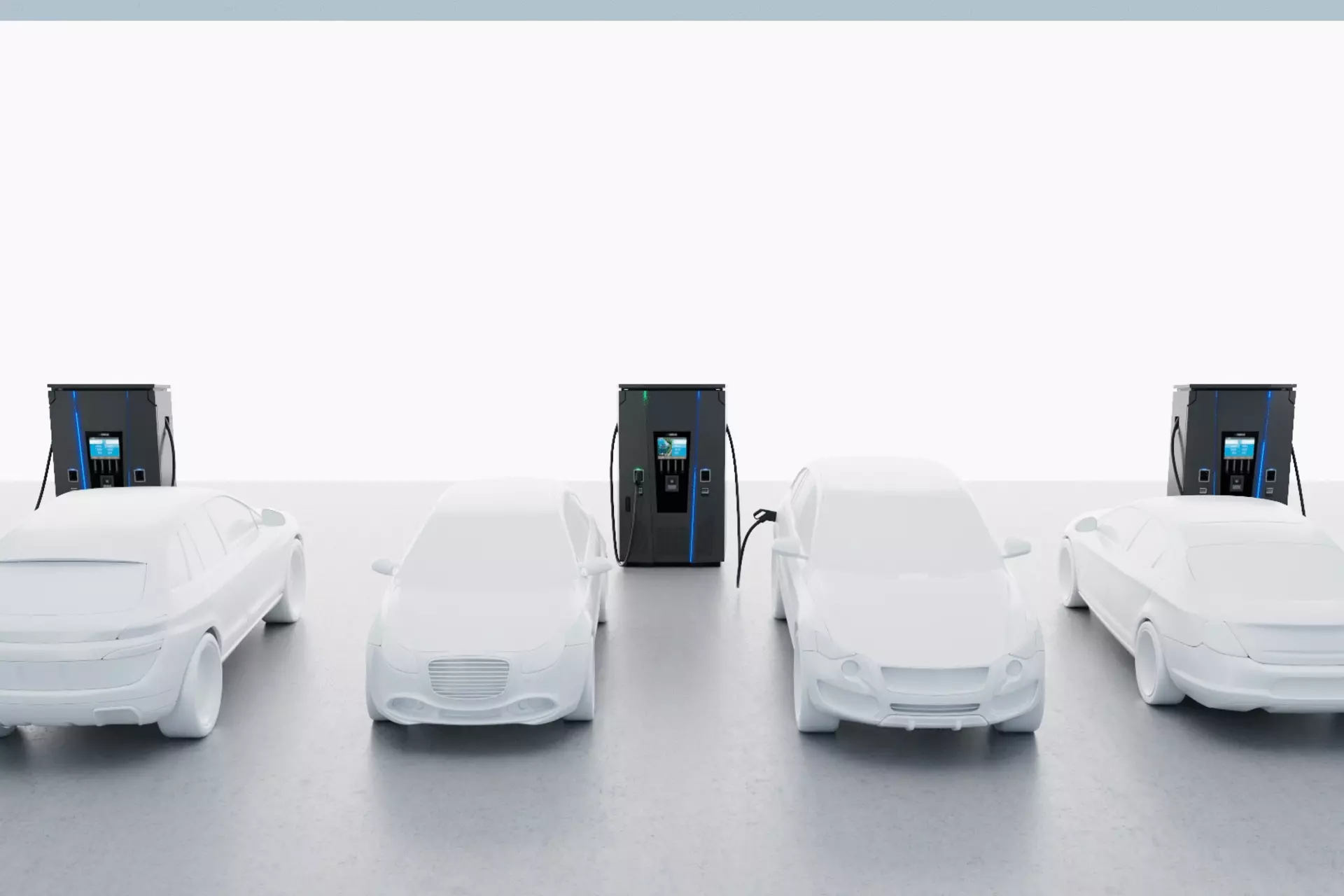

More locations for ultra-fast charging

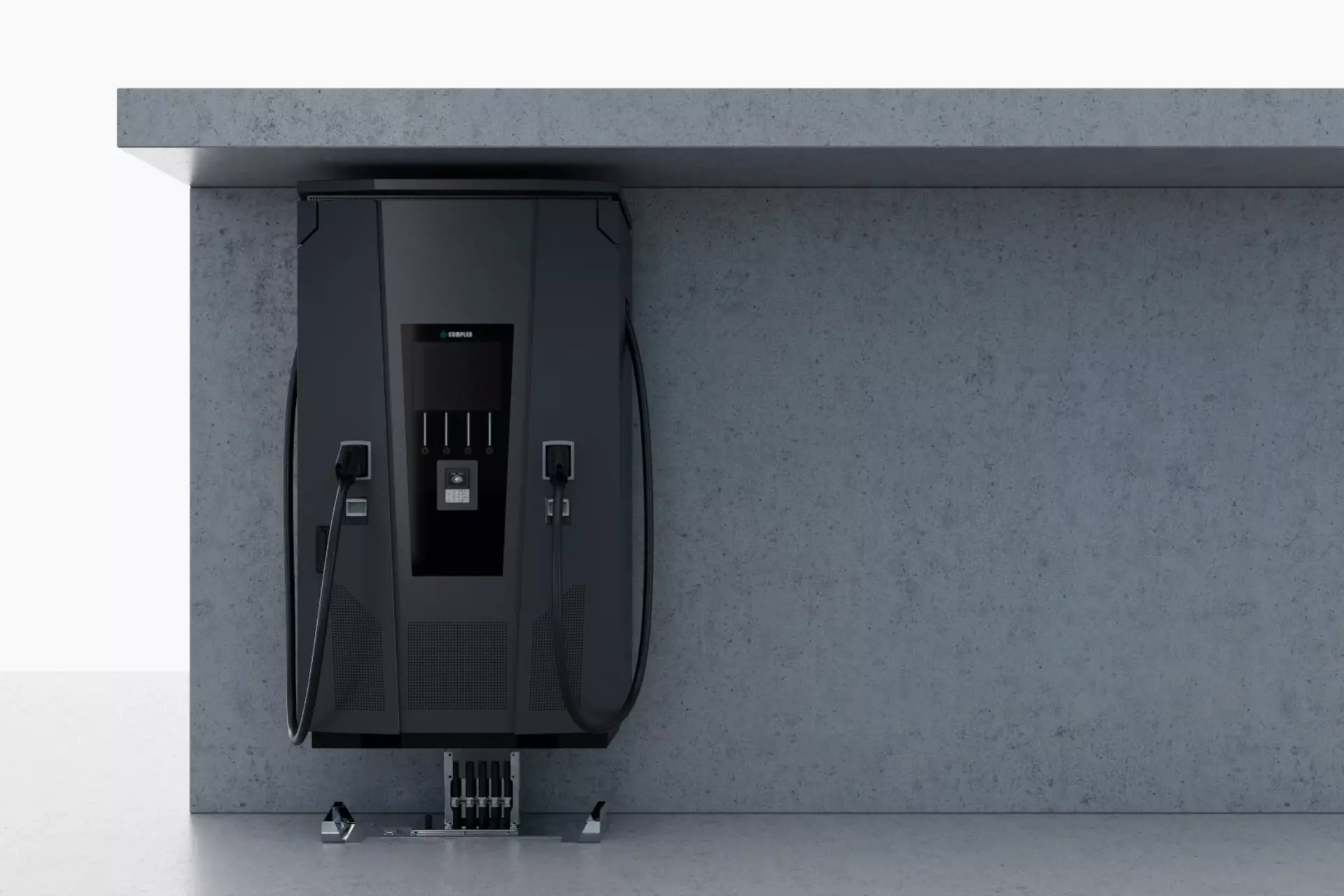

The eTower can be installed directly in front of walls and, as the quietest product in its class, is suitable for noise-sensitive areas. The eTower can even be installed in underground car parks thanks to its 2.00 m overall height and forklift device. Installation without cranes.

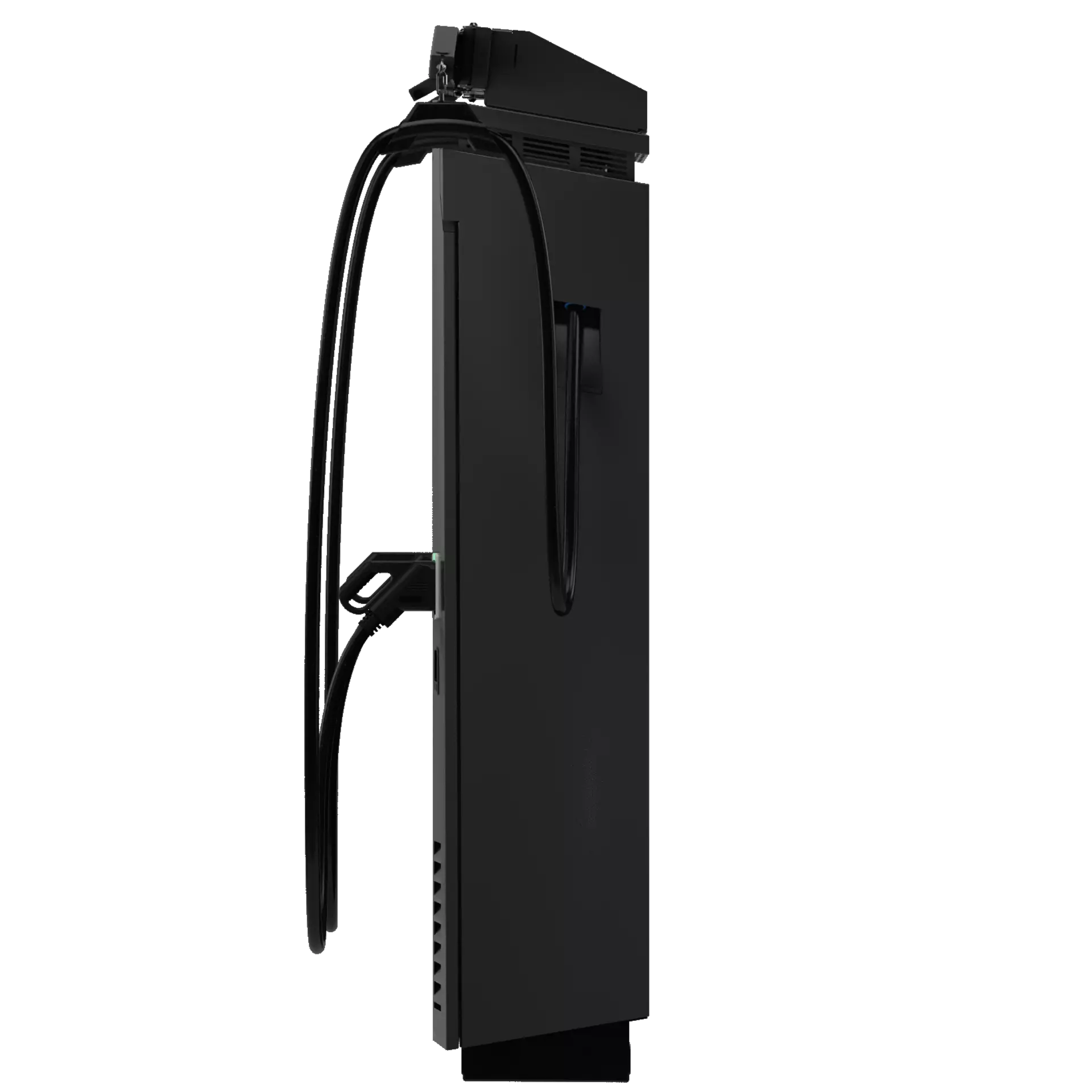

The eTower also supports compact installation with the smallest service area in its class. With a depth of only 450 mm and front access for service, the charger an efficient use of space. All components can be accessed directly thourgh a single door.

Loading...

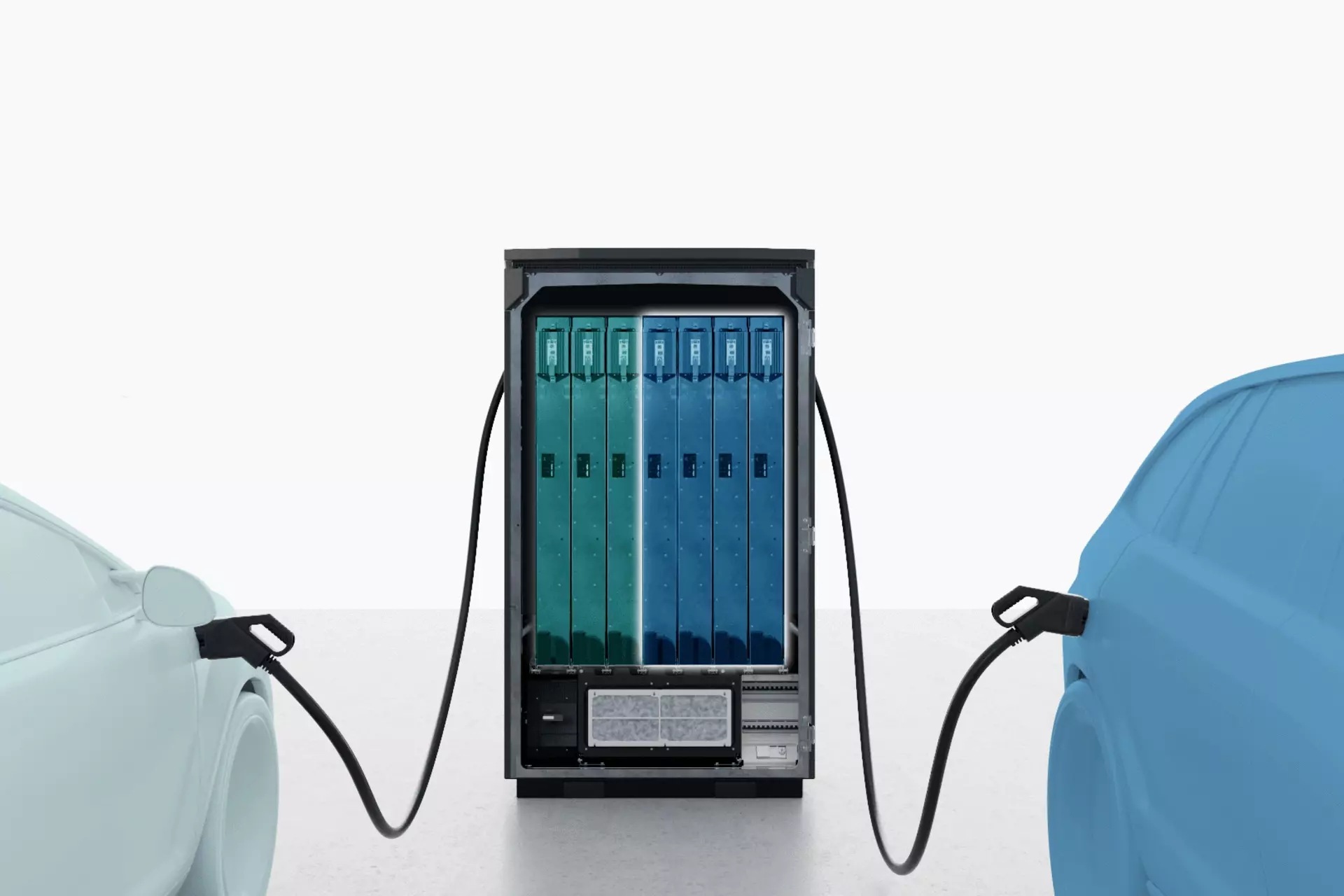

Modular design - small steps pay off

With seven power modules, the eTower can react flexibly to charging requirements. When two vehicles are connected, the power can be allocated modularly and dynamically in 29 kW increments. Higher charging speed for the vehicle, more kilowatt hours delivered.

And the power modules offer complete redundancy - each can take on the role of team leader. Should one fail, the HPC Charger remains available at all times.

Loading...
Maximum uptime thanks to complete redundancy
Loading...
Front access for optimum service operations
Loading...
HPC also in noise sensitive areas
Loading...

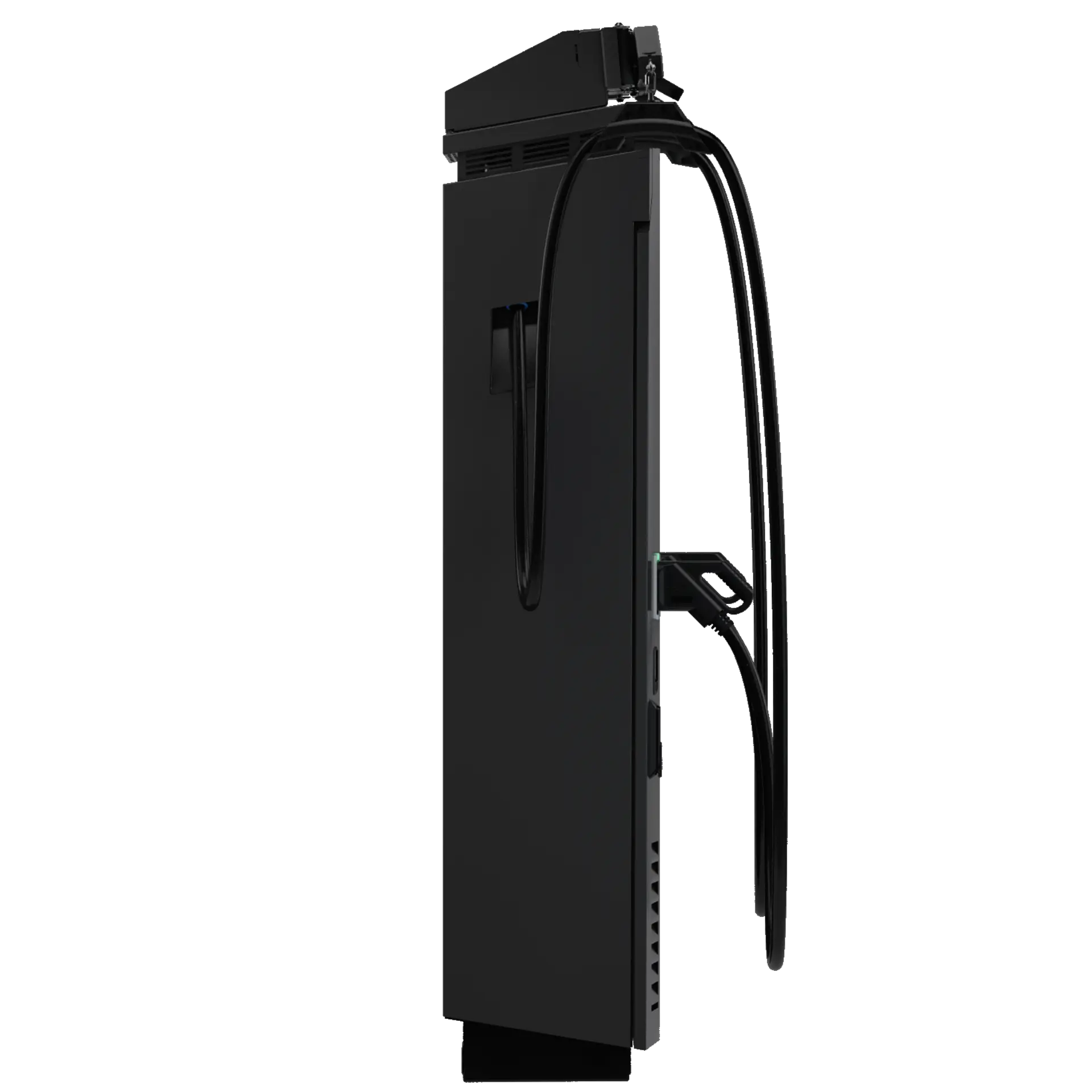

Easily connected everywhere

onvenient handling of the charging cable plays a key role in charging stations, especially when it comes to lengths of more than three metres. The eTower offers an optional long cable version with an integrated cable management system. Two CCS connections each offer a usable charging cable length of 6 metres. This is particularly easy for the user.

Optionally, the eTower 200 with 6 m cable length can be equipped with our anti-theft protection for DC charging cables. It prevents vandalism and copper theft. The cable remains flexible during use due to its moderate additional weight.



Learn more

Loading...

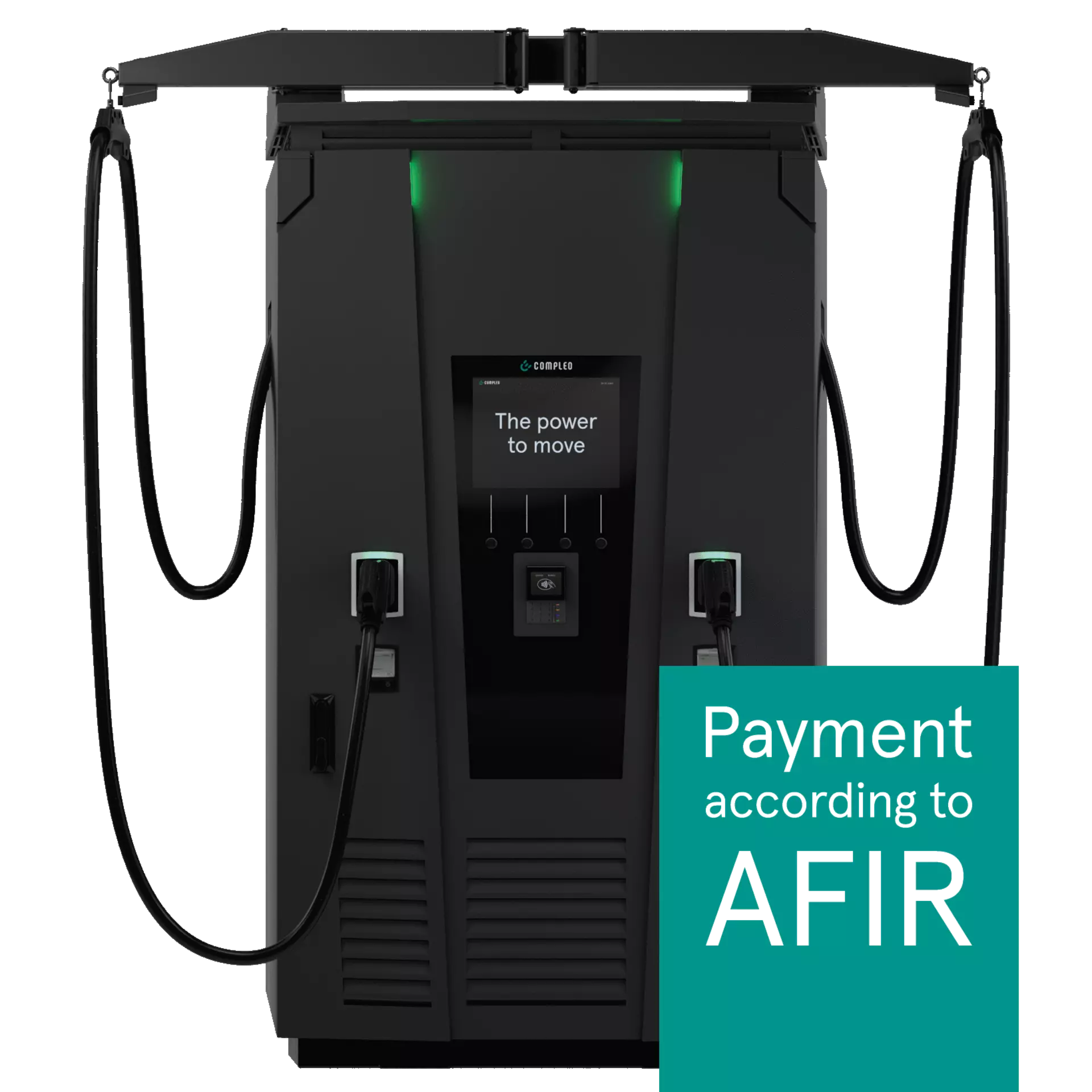

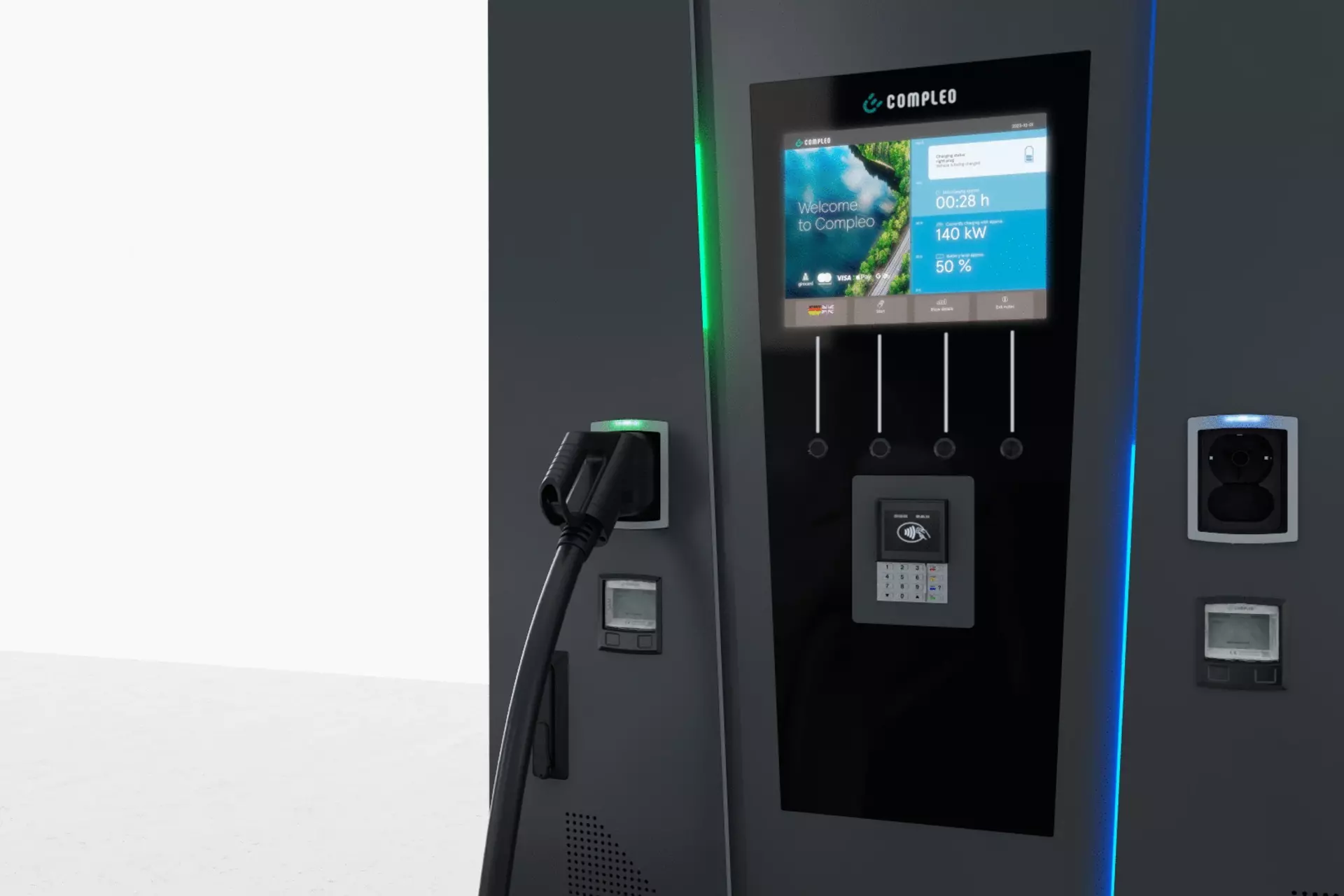

Intuitive and barrier-free handling

Recognise which charging point is free from a distance - no problem with the eTower LED display. The intuitive user guidance at the charging station guides the user step by step - not just via the display. Access is barrier-free.

With the integrated terminal, paying with the eTower 200 is even as easy as in the supermarket: by presenting a credit or debit card, you can pay directly, even without registration.

Loading...

Precise functionality – with any IT backend

The eTower can be controlled from any IT backend and the charger is connected via the OCPP 1.6J standard. Calibration law-compliant metering and billing is possible via SAM module and OCMF.



Compare our charging solutions



eTower 200

DUO

Maximum charging power per charging point DC: max. 200 kW flexible load distribution to both charge points 22 kW
Number of charging points 2 2
Charging connector 2x CCS charging cable (3,5 m); optional 2x CCS charging cable (6 m) with integrated cable management system 2x type 2 socket, incl. sliding cover
Compliant with calibration law DC meter with SAM storage and display module 2x MID-compliant smart meter; optional with SAM® storage and display module
Protection MCCB 400 A 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C40 3P; 1x circuit breaker B16 1P
Communication interface to IT backends OCPP 1.6 JSON OCPP 1.6 JSON
Authorisation Free charging, RFID, smartphone app, credit card, girocard Free charging, RFID, smartphone app, Giro-e able

Documents for download

With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.

Document Centre

Product name
eTower 200

Number of charging points
2

Charging connector
2x CCS charging cable (3,5 m);
optional 2x CCS charging cable (6 m) with integrated cable management system

Authorisation
Free charging, RFID, smartphone app, credit card, girocard

Display
Bright all-weather display, size: 15"

User interface
User instructions via display and four buttons

Maximum charging output per charge point
DC: max. 200 kW flexible load distribution to both charge points

Nominal voltage, number of phases, nominal frequency
400 V; 3; 50 Hz

Maximum input current
342 A per phase, configurable

Protection
MCCB 400 A

IT backend connection
OCPP 1.6 JSON

Meter / German calibration law
DC meter with SAM storage and display module

Montageart
Base mounted (bm)

Enclosure material
Stainless steel

IP protection class
IP54

Impact resistance
IK10

Weight
Approx. 750 kg

Lock
Swivelling lever, built-in space for one profile half cylinder

Environmental operating temperature
-25 °C to +40 °C

Approvals
CE, RoHS, REACH, GPSD, WEEE

Standards
IEC 61851-1;
IEC 61851-23;
IEC 62196;
ISO 14443A/B;
IEC 61851-21-2;
VDE-AR-N-4100

Abmessungen (H x B x T)
2,000 x 1,200 x 450 mm

Cable management system

Wire Hub
Connection Console
240 mm2

Foundation

  • pdf (1 MB)

    eTower 200 - overview

    Download
  • pdf (624 KB)

    12236773_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (532 KB)

    12236777_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (616 KB)

    12236780_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (521 KB)

    12236781_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (525 KB)

    12236782_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (536 KB)

    12236785_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (625 KB)

    12236786_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (625 KB)

    12236787_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (521 KB)

    12236788_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (625 KB)

    12236789_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (538 KB)

    12236791_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (625 KB)

    12237980_eTower200_Compleo_datasheet_EN.pdf

    Download
  • pdf (137 KB)

    en_eTower_200_TenderText.pdf

    Download
