360°

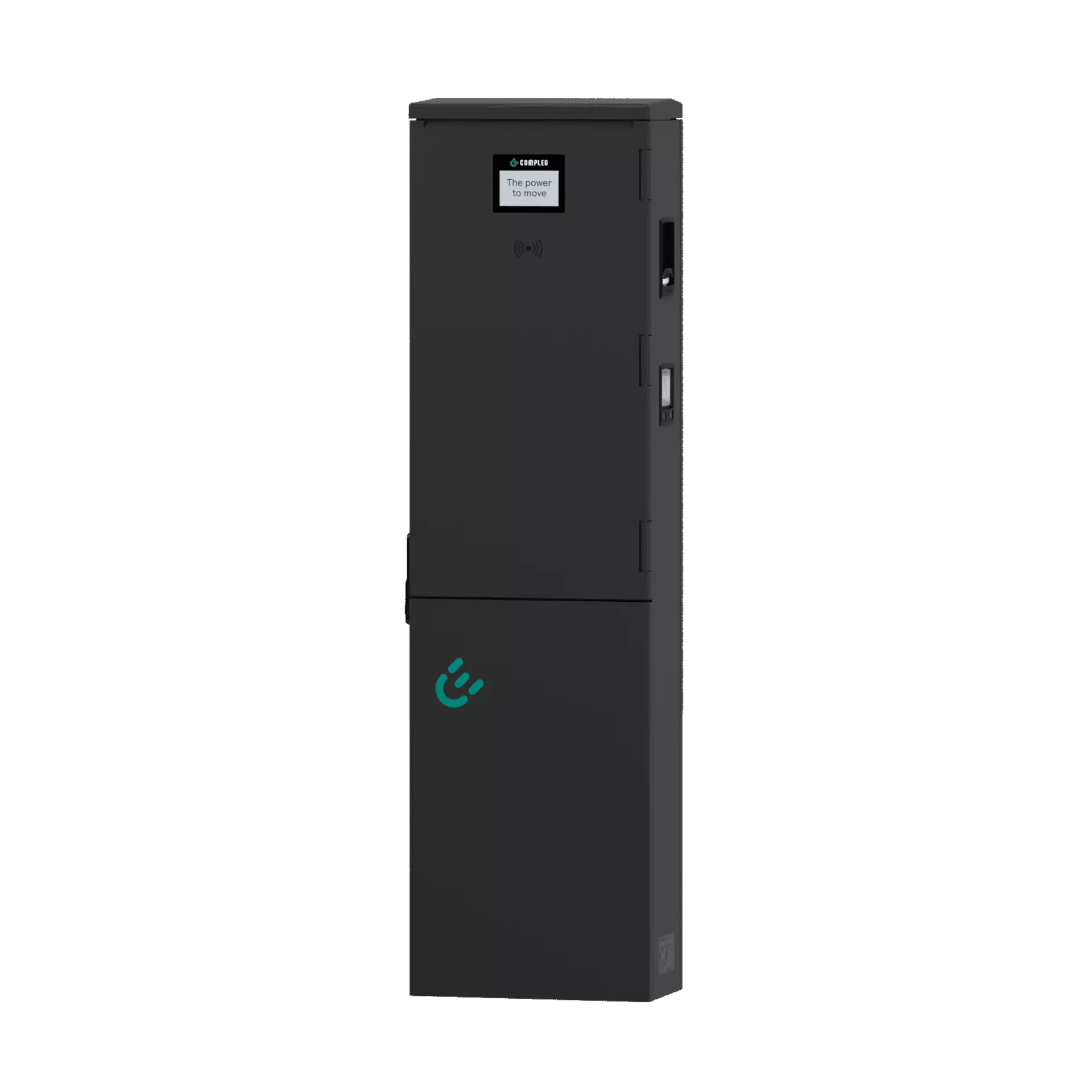

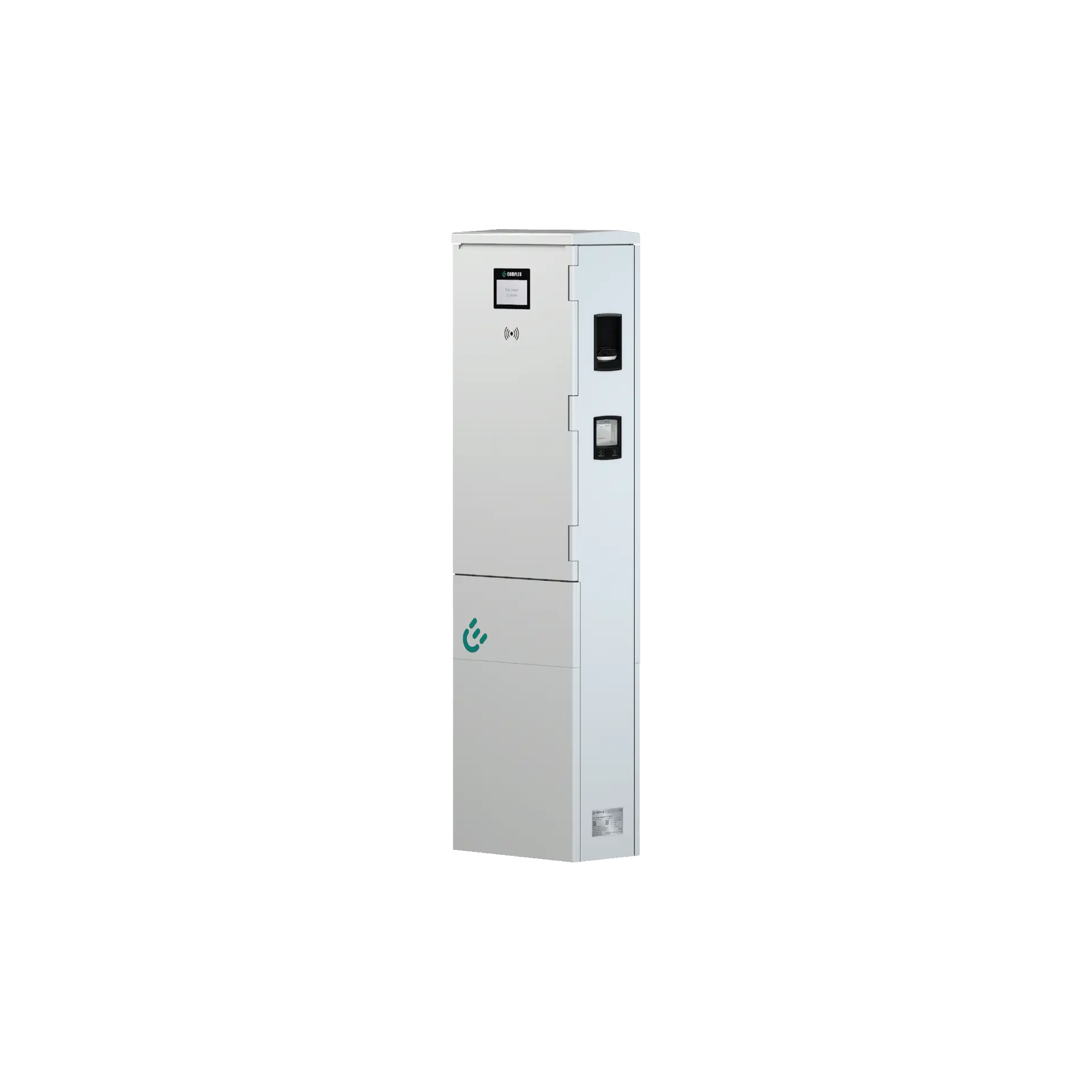

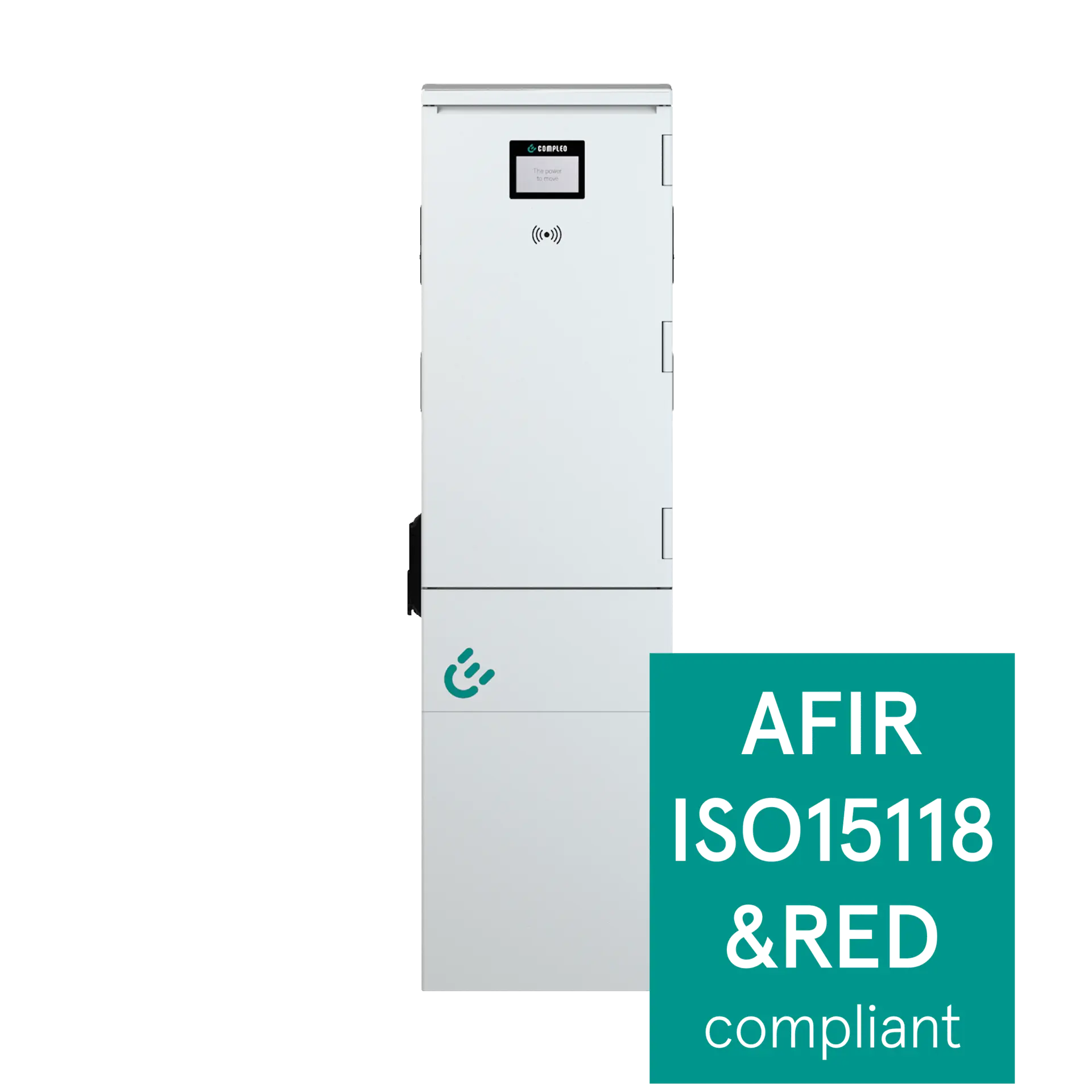

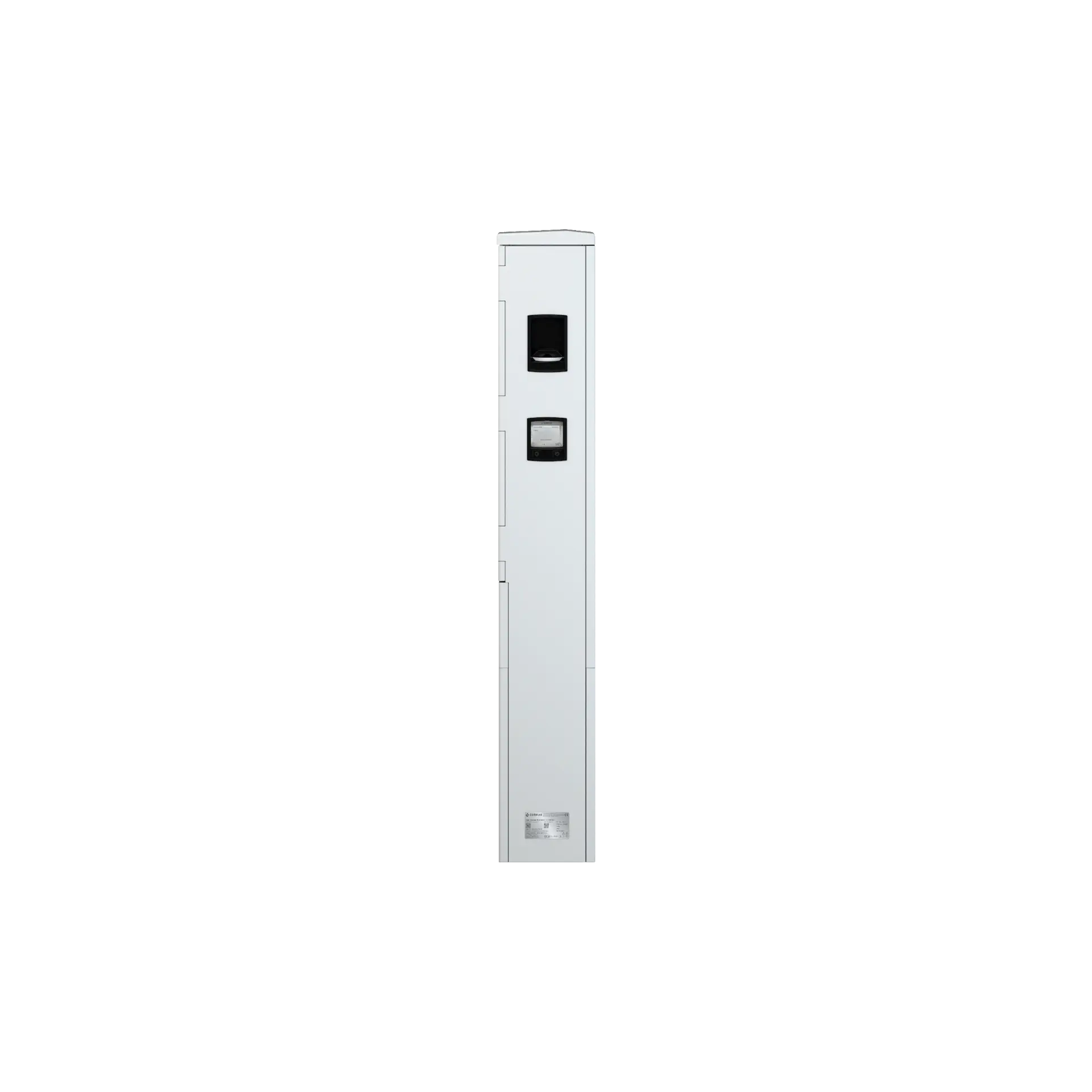

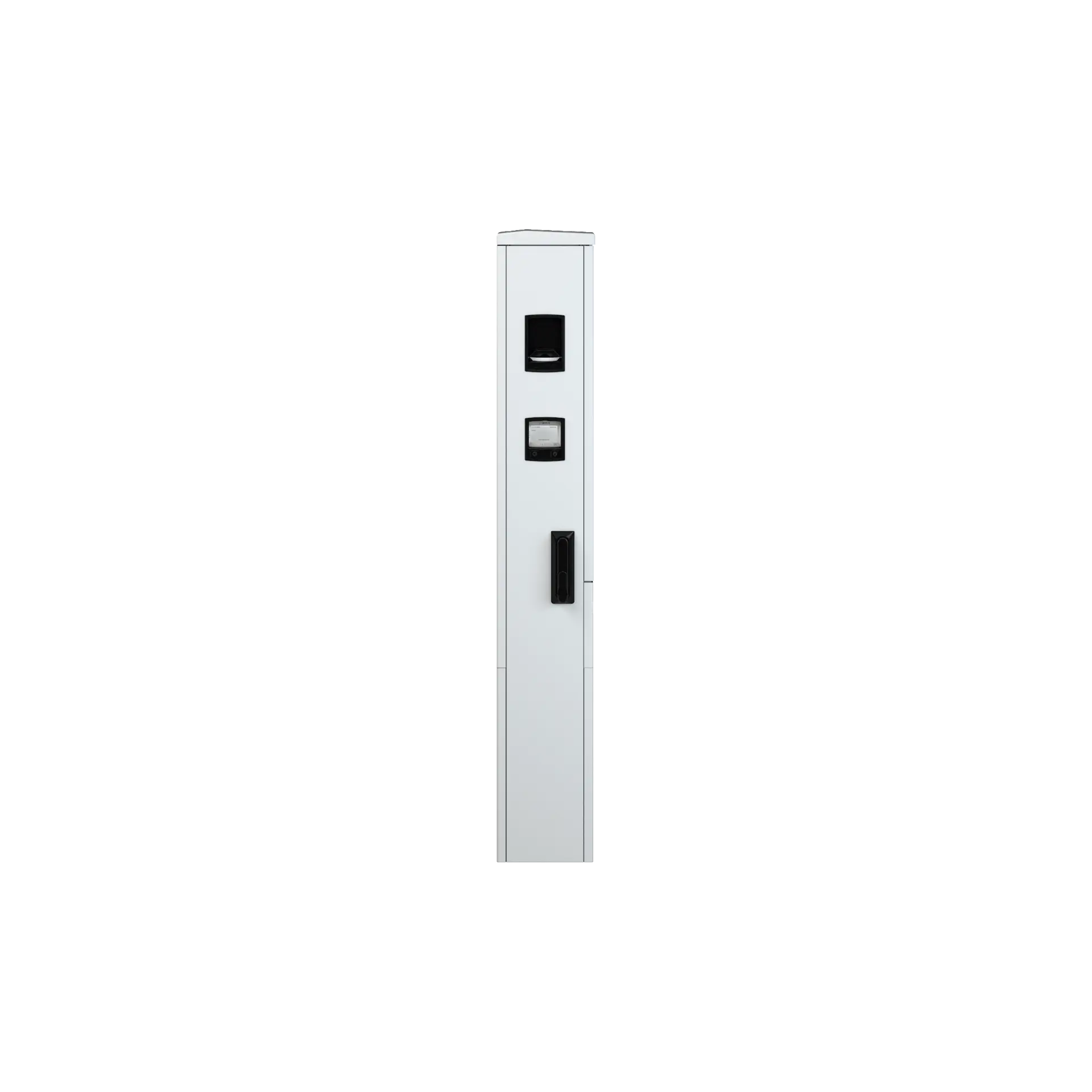

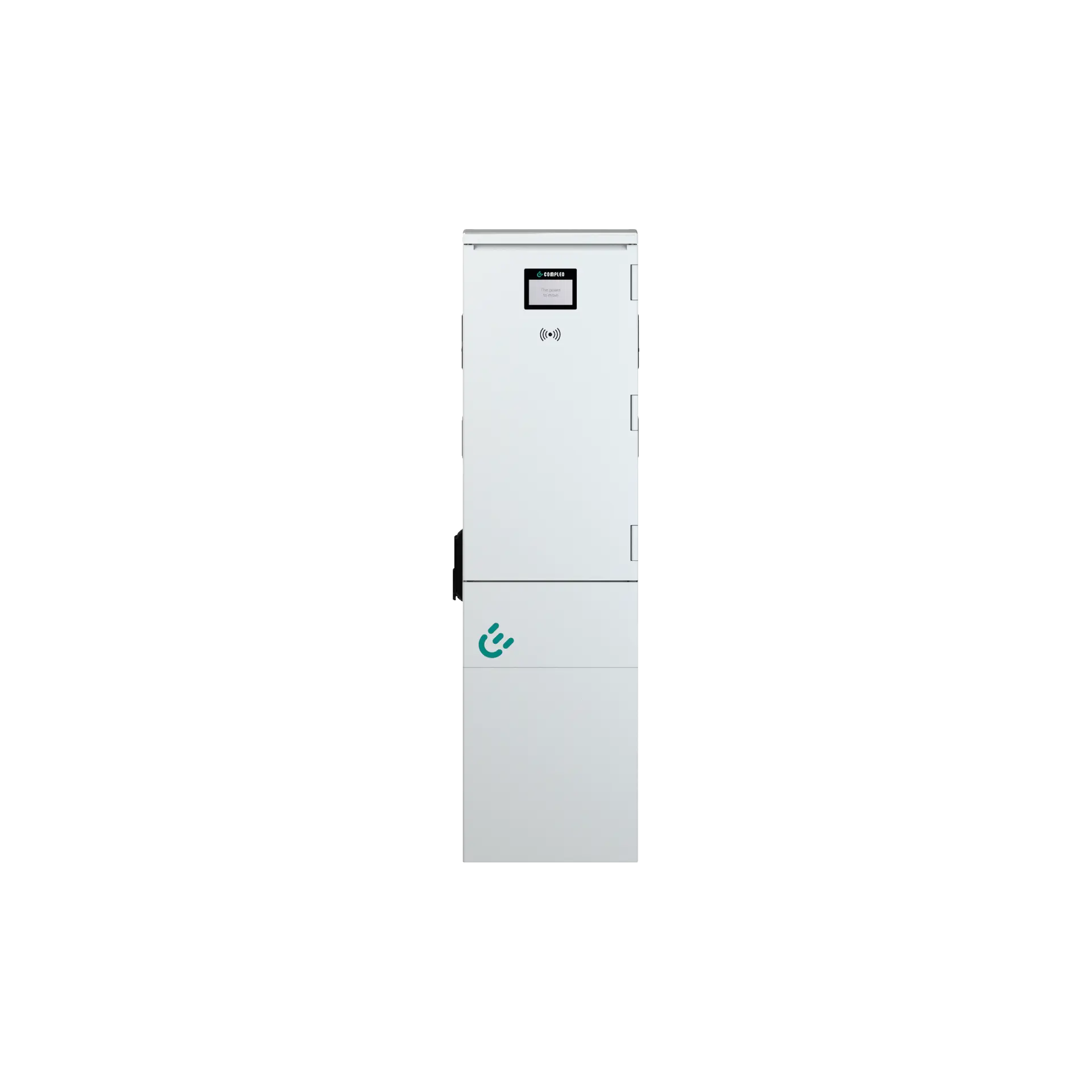

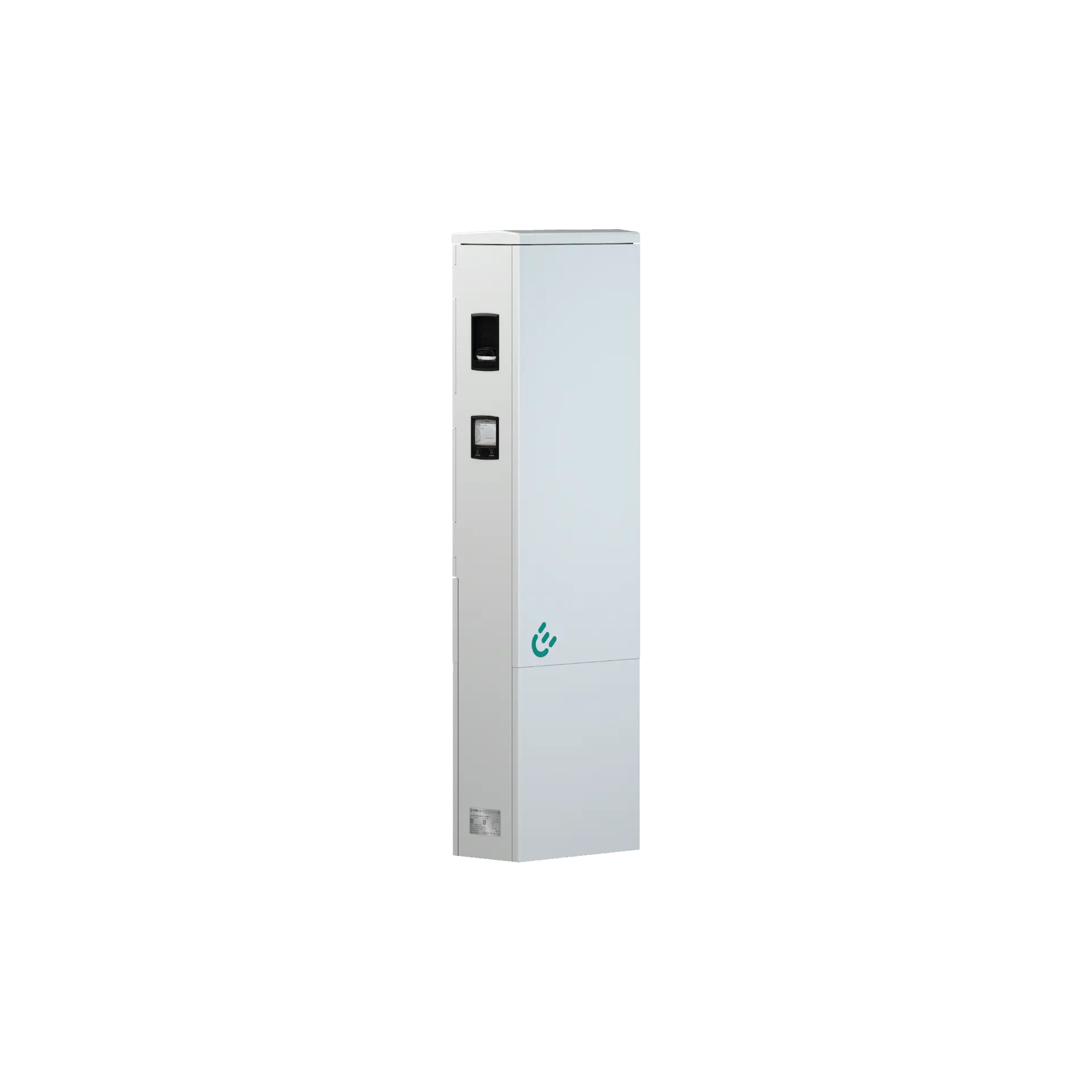

DUO

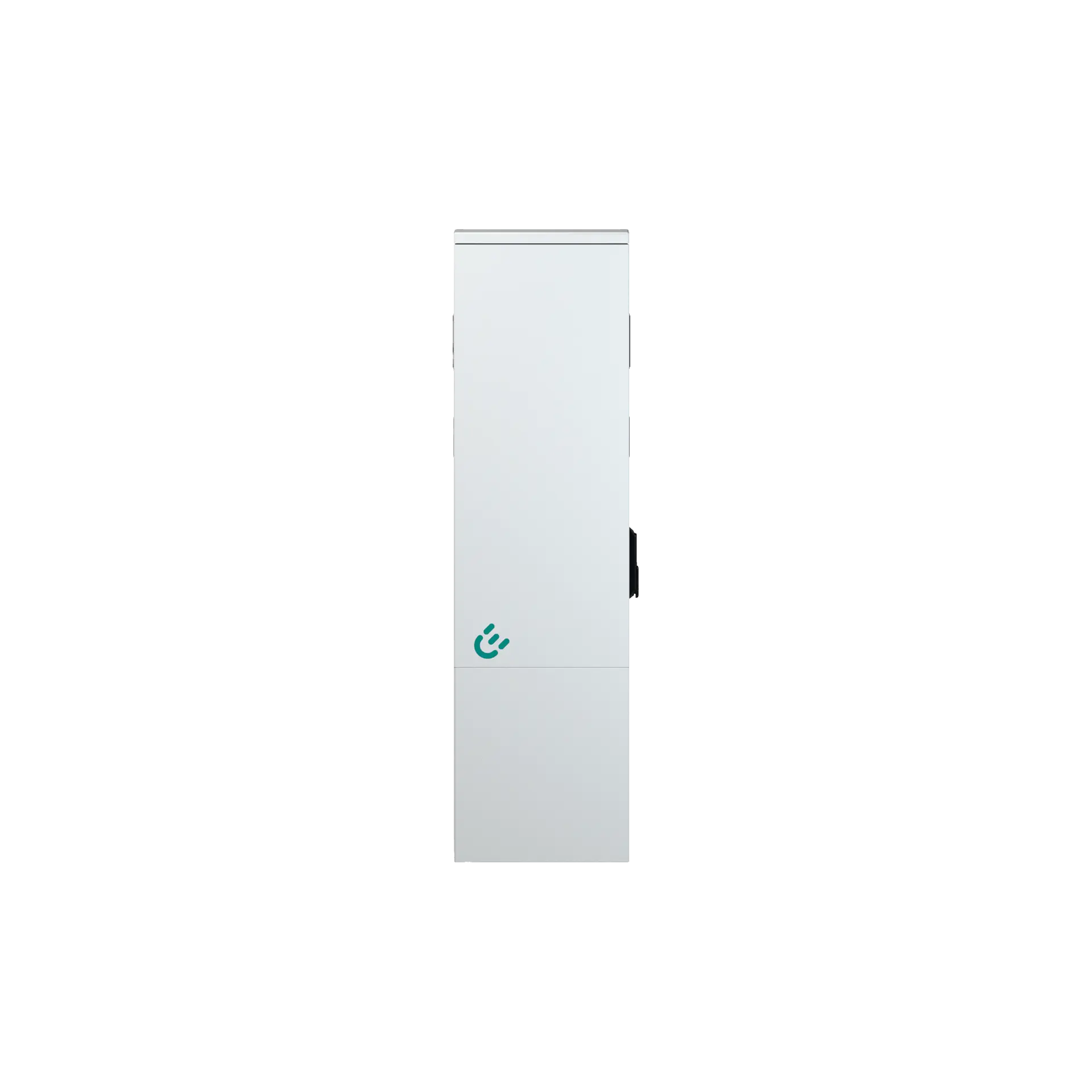

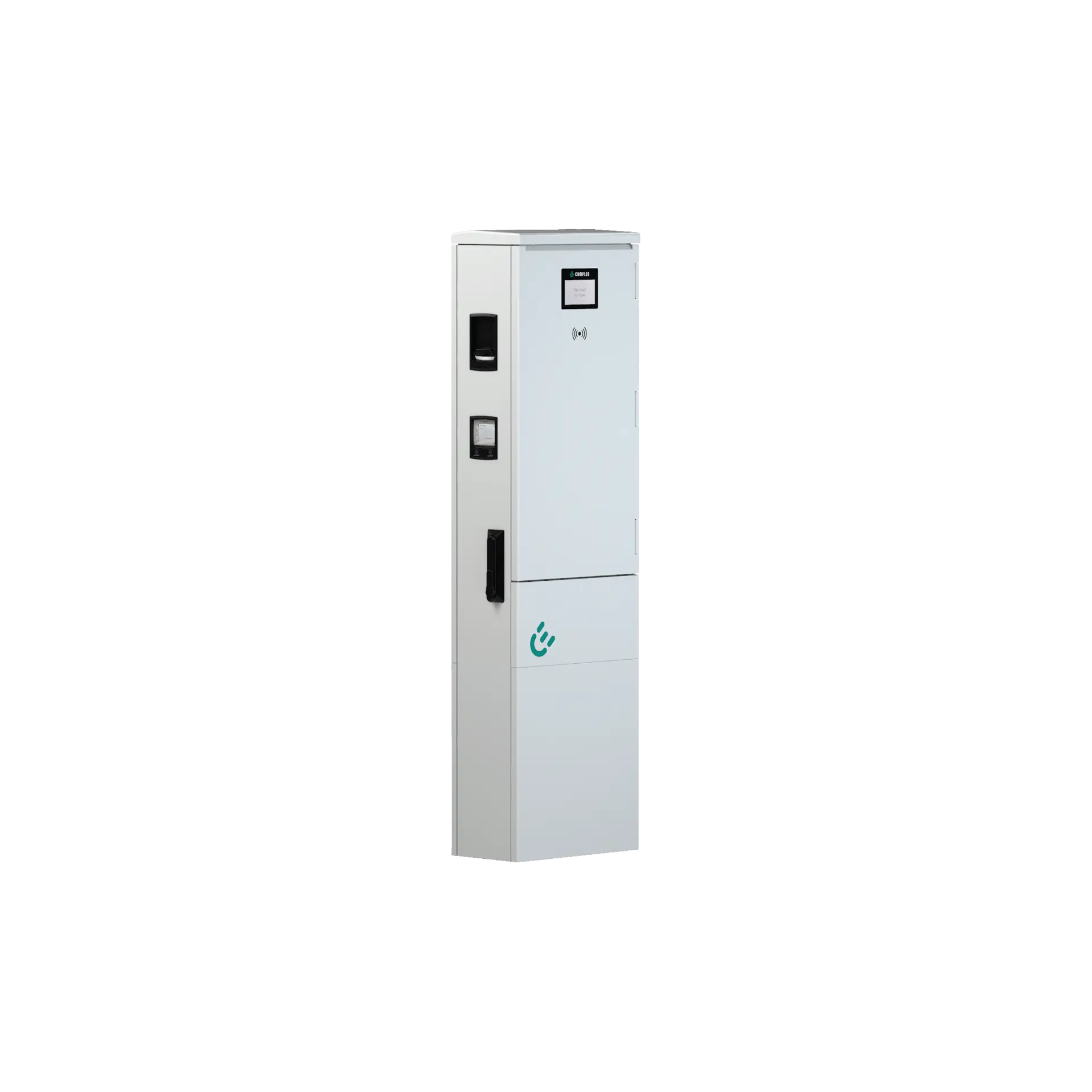

AC charging station
A pioneer for all situations

Up to 2 x 22 kW of charging power (AC)

The DUO is the pioneer for all situations. All components are already integrated into this all-in-one charging station. This saves installation and operating costs – year after year.

  • Floor-mounted for two parking spaces
  • Compliant with German calibration law
  • LAN and 4G connectivity
Loading...
Can be combined with any OCPP-compatible IT backend
Loading...
Extremely robust sheet moulding compound (SMC) enclosure; corrosion-free – forever
Loading...
Energy and load management via MODBUS/TCP protocol
Loading...

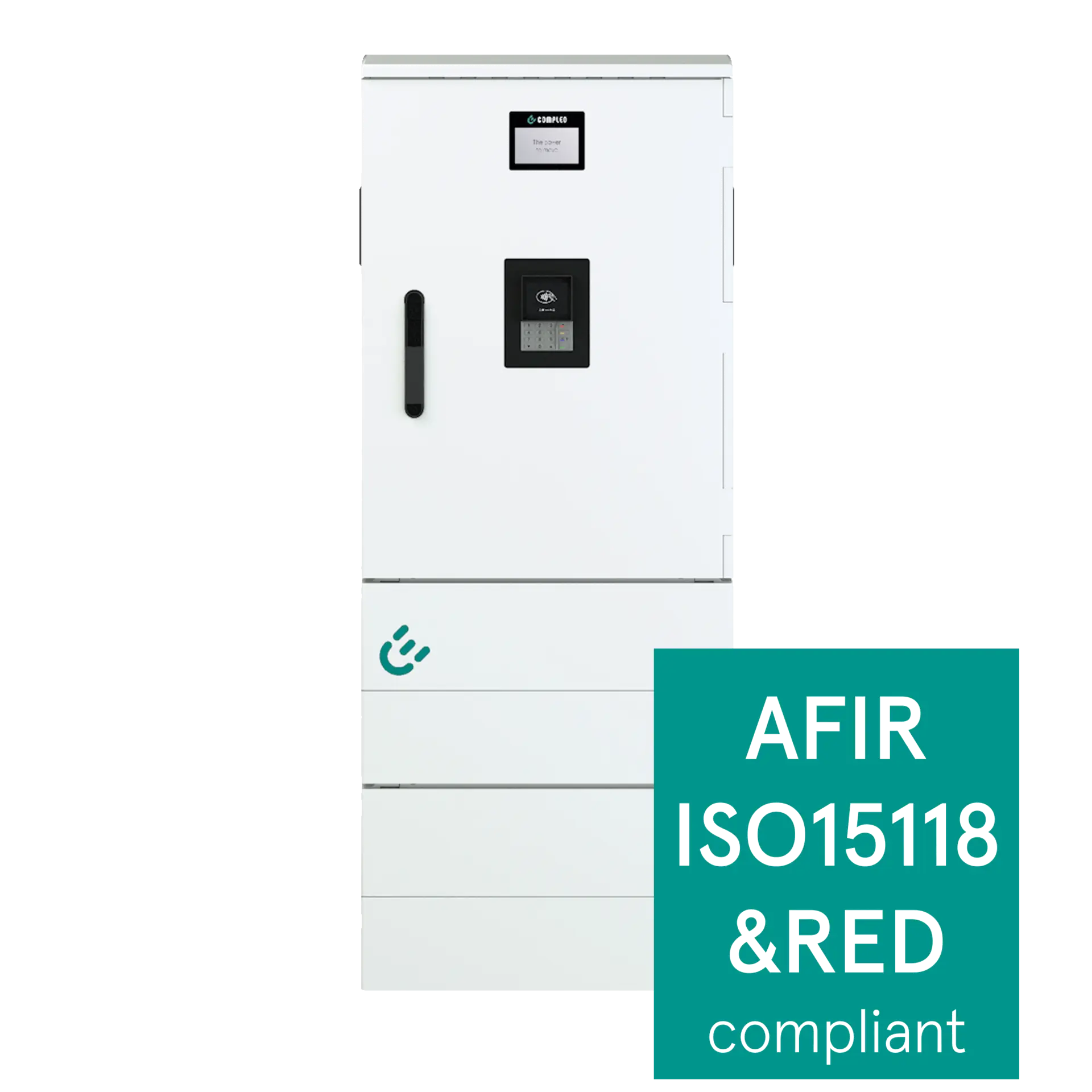

Paying by EC card? No problem!

The most convenient form of payment is the one that we always carry with us. Millions of people in Germany own an EC card with Girocard functionality. Using their card, they can charge anywhere without registering first. The charging process is compliant with German calibration law and the price is conveniently shown in the display window.



Loading...

Precise functionality – with any IT backend

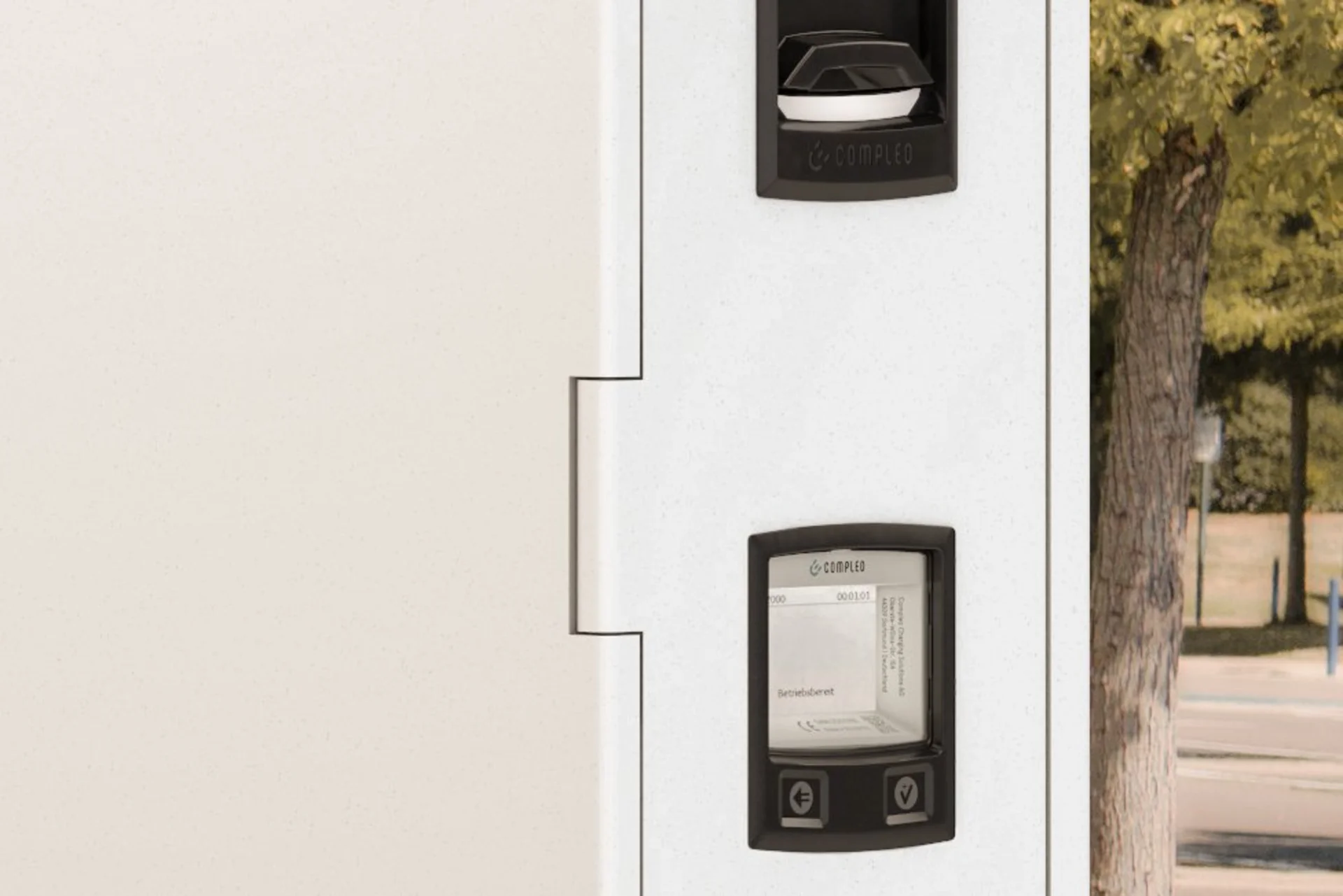

The DUO can be controlled from any IT backend and provides calibration law-compliant metering via SAM module. Thanks to SAM technology, the user can monitor and check consumption without being connected to the IT backend.



Compare our charging solutions



DUO

DUO fleet

DUO ims

Maximum charging power per charging point 11/22 kW 22 kW: type 2 socket; 11 kW: type 2 spiral lead; configurable 22 kW, configurable
Number of charging points 2 2 2
Charging connector 2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m) 2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m) 2x type 2 socket, incl. sliding cover
Compliant with calibration law 2x MID-compliant smart meter; optional with SAM® storage and display module 2x MID-compliant smart meter; optional with SAM® storage and display module 2x MID-compliant smart meter with SAM® storage and display module
Protection 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P
Communication interface to IT backends OCPP 1.6 JSON OCPP 1.6 JSON OCPP 1.6 JSON
Authorisation Free charging, RFID, smartphone app, Giro-e able Free charging, RFID, smartphone app, Giro-e able Free charging, RFID, smartphone app, optional: Giro-e, credit card terminal

Documents for download

With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.

Document Centre

Product name
DUO

Number of charging points
2

Charging connector
2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m)

Authorisation
Free charging, RFID, smartphone app, Giro-e able

Display
Size: 4.3’’ display

User Interface

Maximum charging output per charge point
22 kW: type 2 socket; 11 kW: type 2 spiral lead; configurable

Nominal voltage, number of phases, nominal frequency
400 V; 3; 50 Hz

Maximum input current
32 A / 63 A per phase, configurable

Protection
2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P

Protocols for communication with IT backends
OCPP 1.6 JSON

Meter / German calibration law
2x MID-compliant smart meter; optional with SAM® storage and display module

Mounting type
Wall mounted (wm); optional: Pole mounted (pm) or Base mounted (bm)

Enclosure material
Sheet moulding compound (SMC)

IP protection class
Enclosure: IP44; relevant components: IP54

Impact resistance
IK10

Weight
Approx. 35 - 45 kg, depending on added options

Lock
Swivelling lever, built-in space for one profile half cylinder

Environmental operating temperature
-25 °C to +40 °C

Approvals
CE, RoHS, REACH, GPSD, WEEE

Standards
DIN EN 61851-1;
DIN IEC/TS 61439-7

Dimensions (HxWxD)
Wall mounted version: 1000 x 400 x 225 mm;
pole mounted version: 1000 x 400 x 225 mm;
floor mounted version: 1441 x 400 x 225 mm

SMC base + base filler granulate
For mounting in ground

Installation kit
For mounting without base
