360°

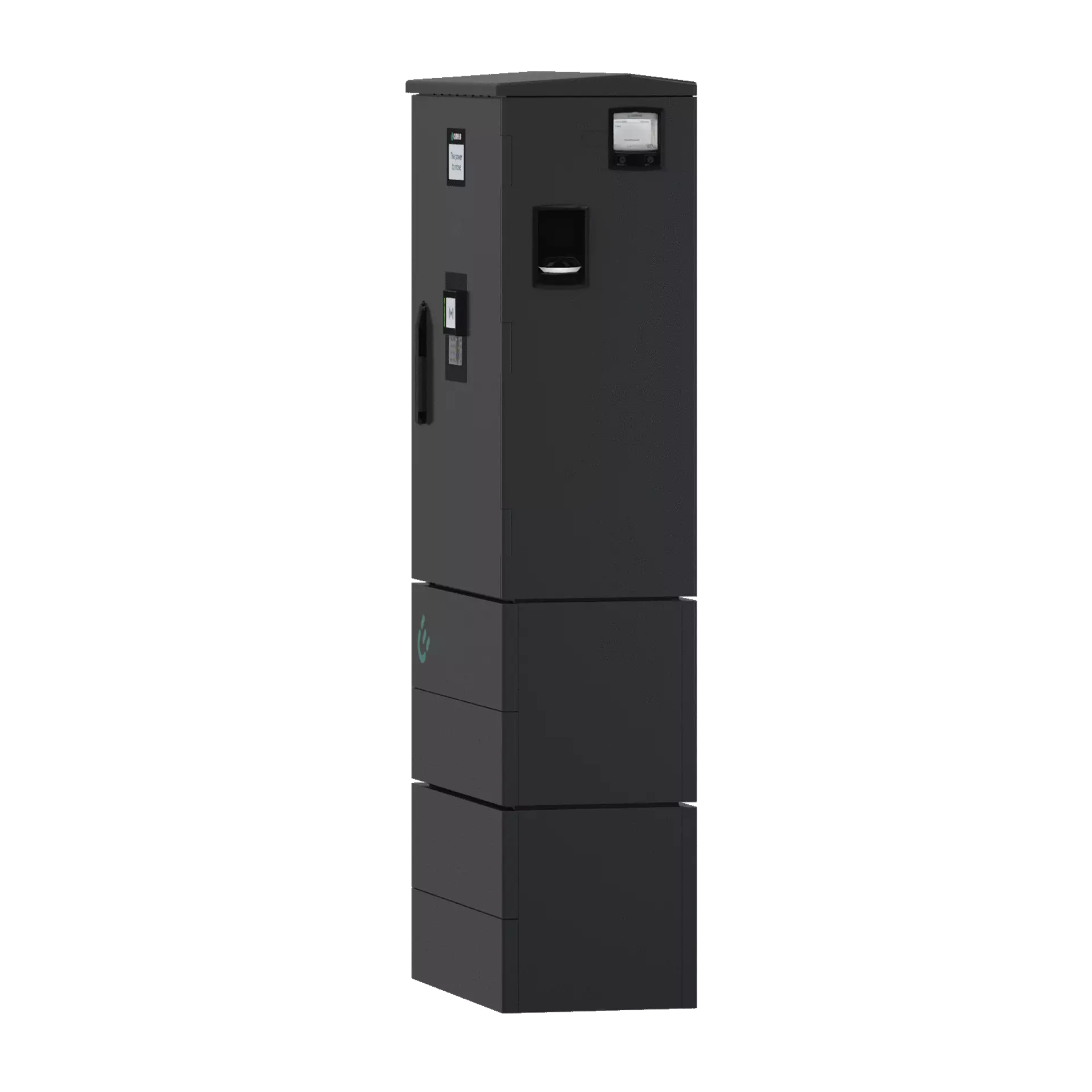

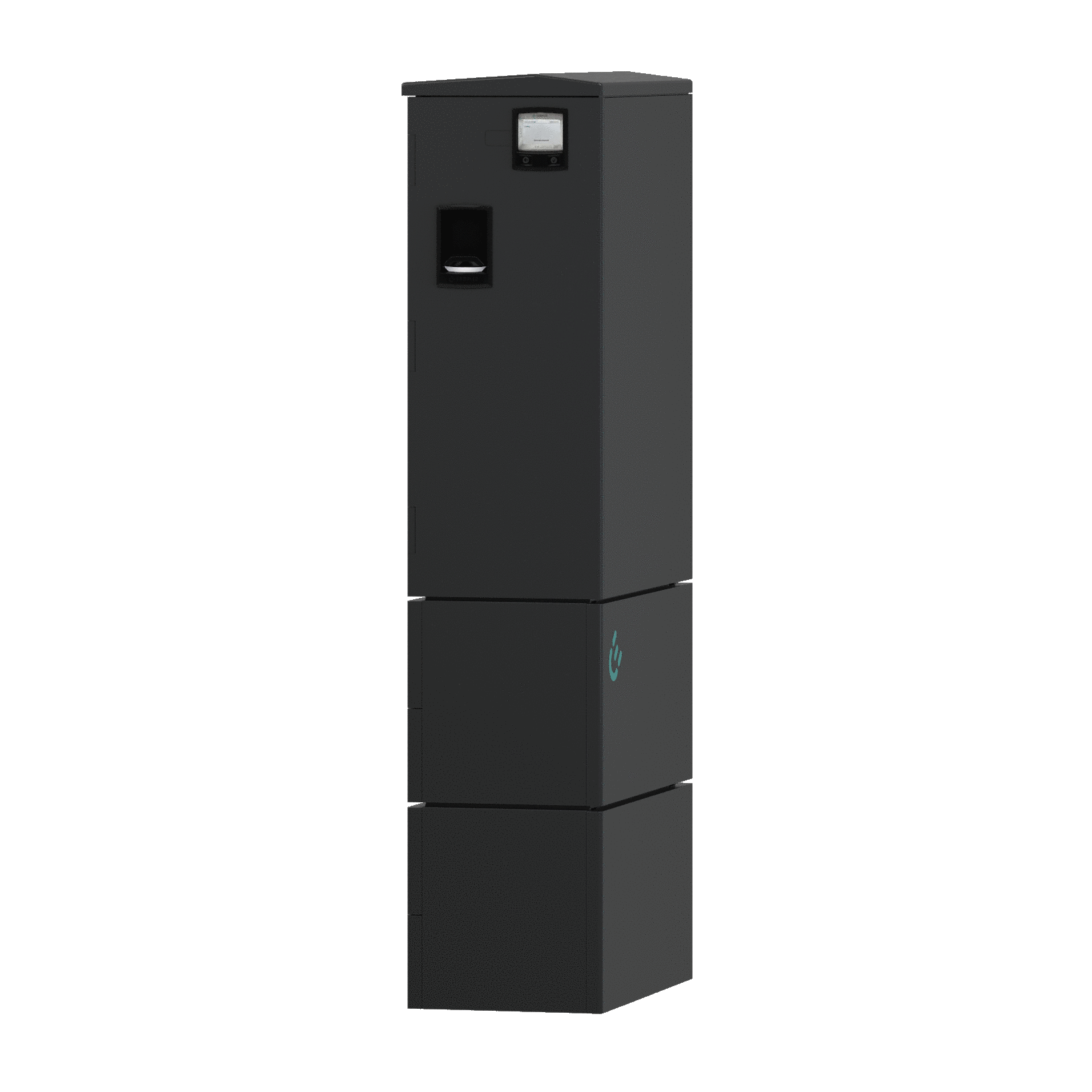

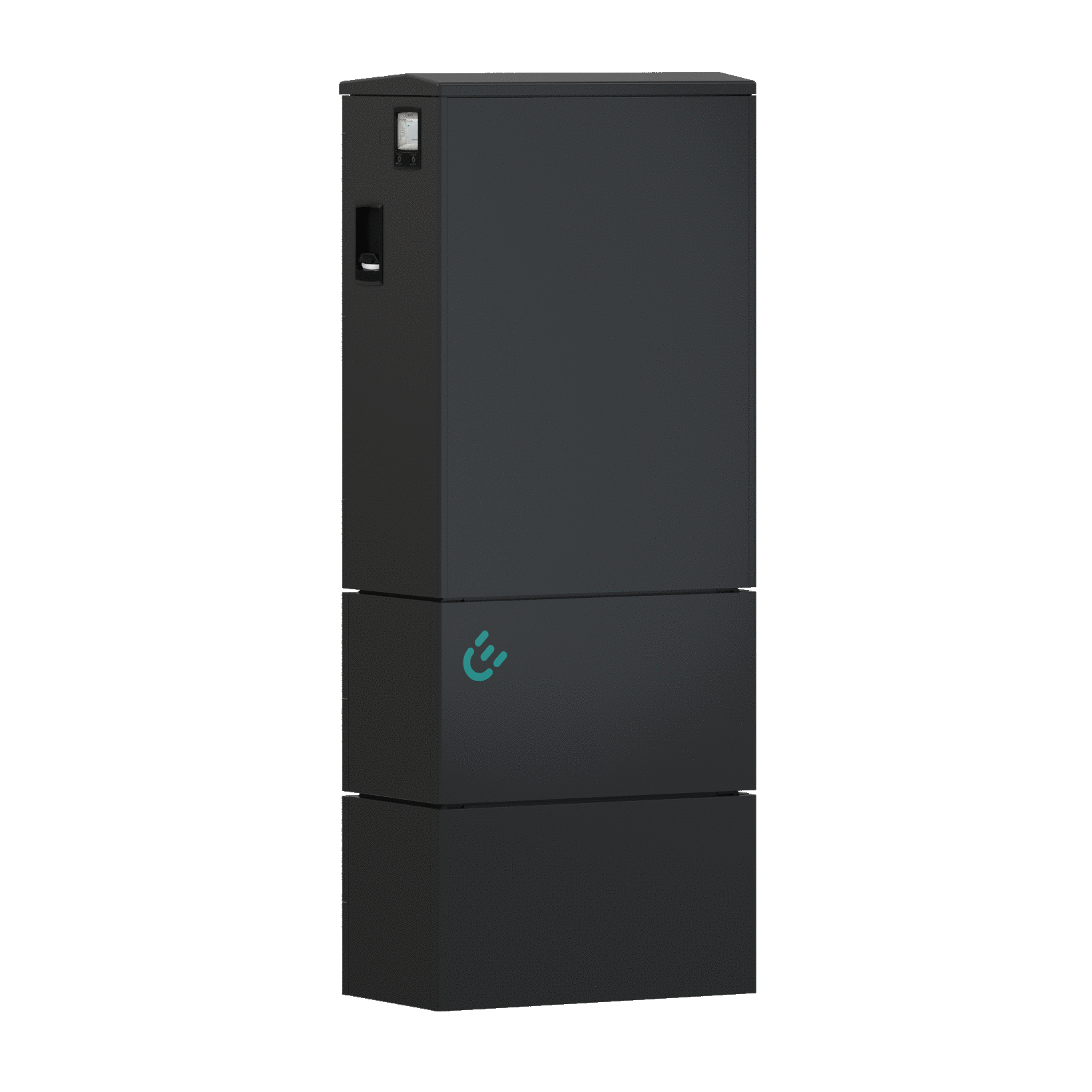

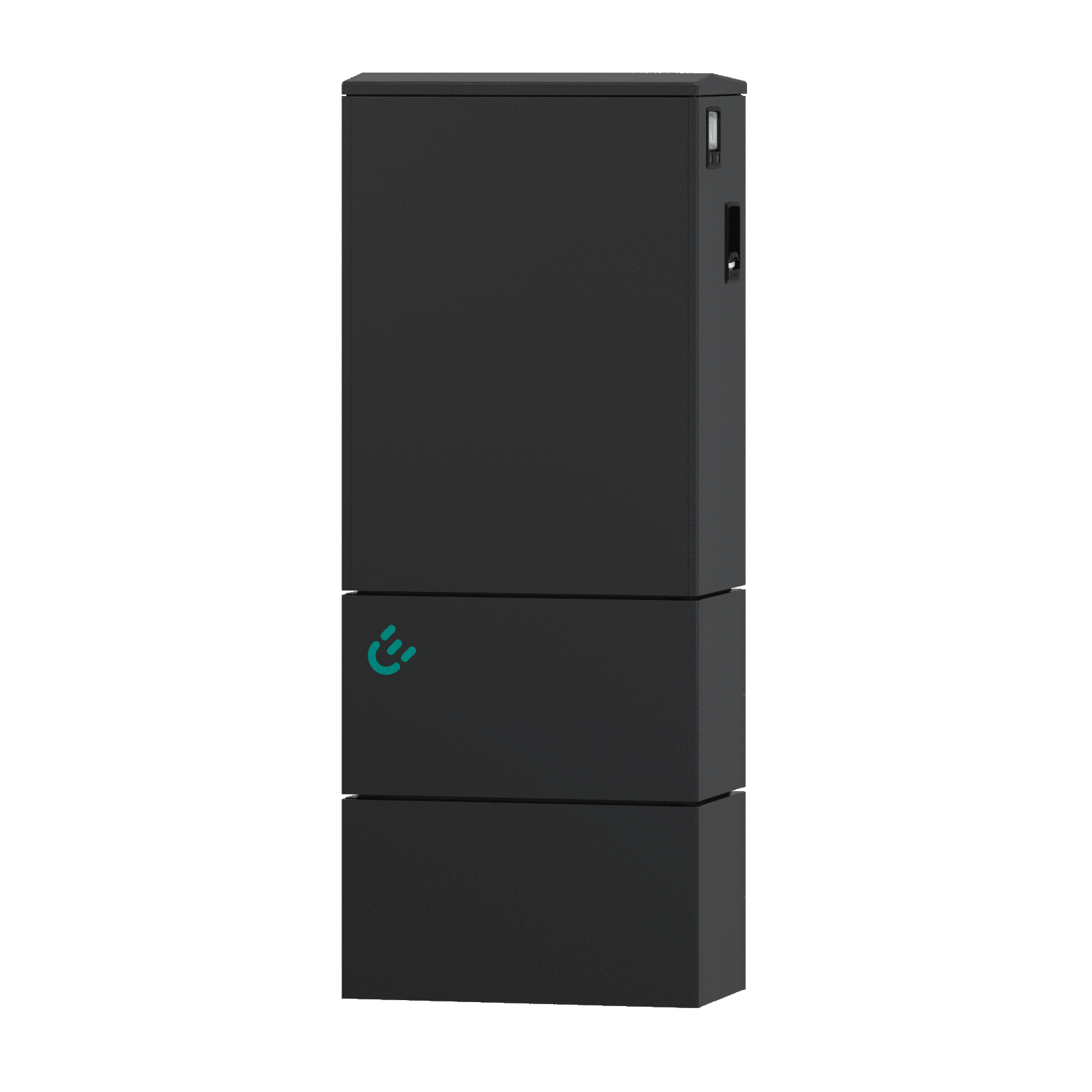

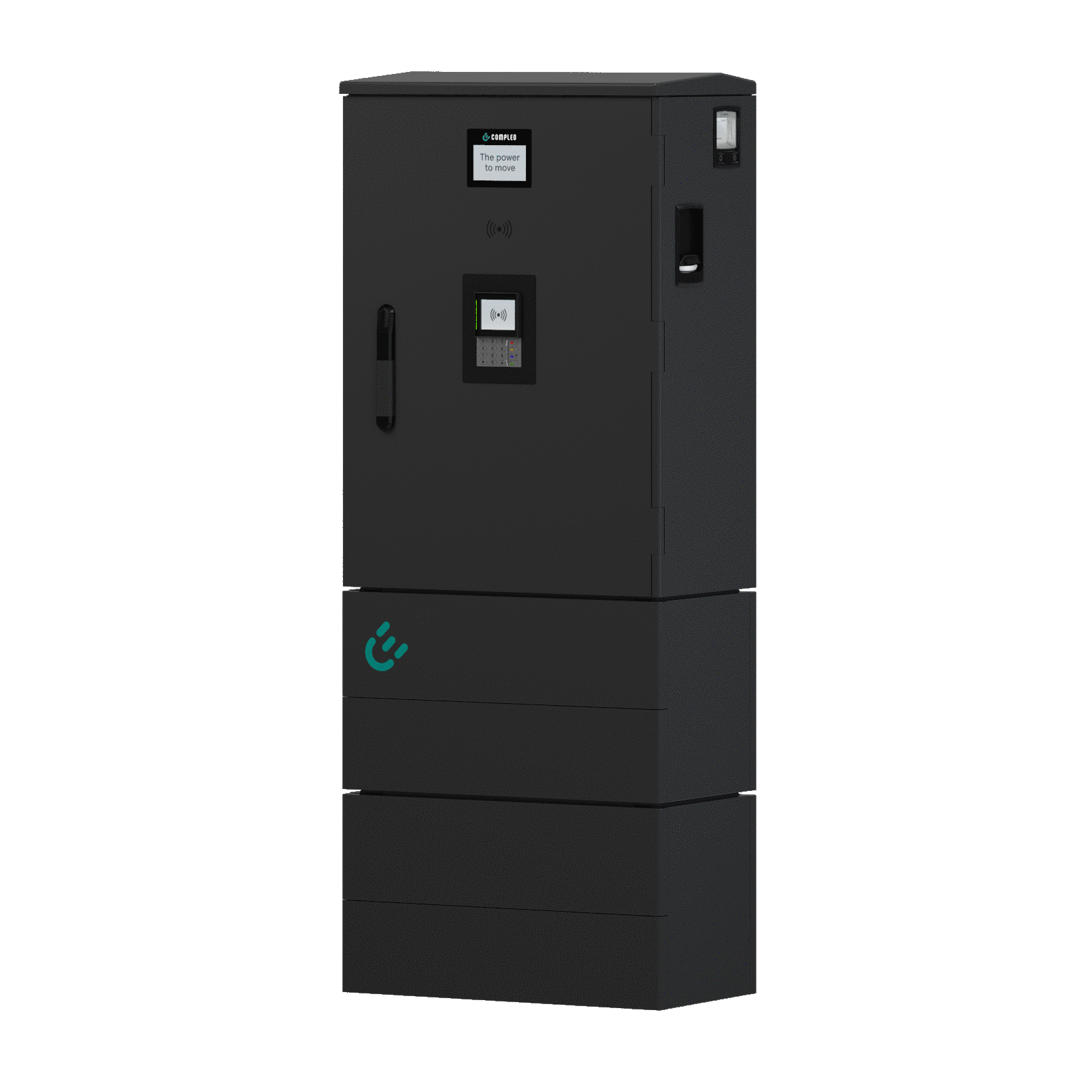

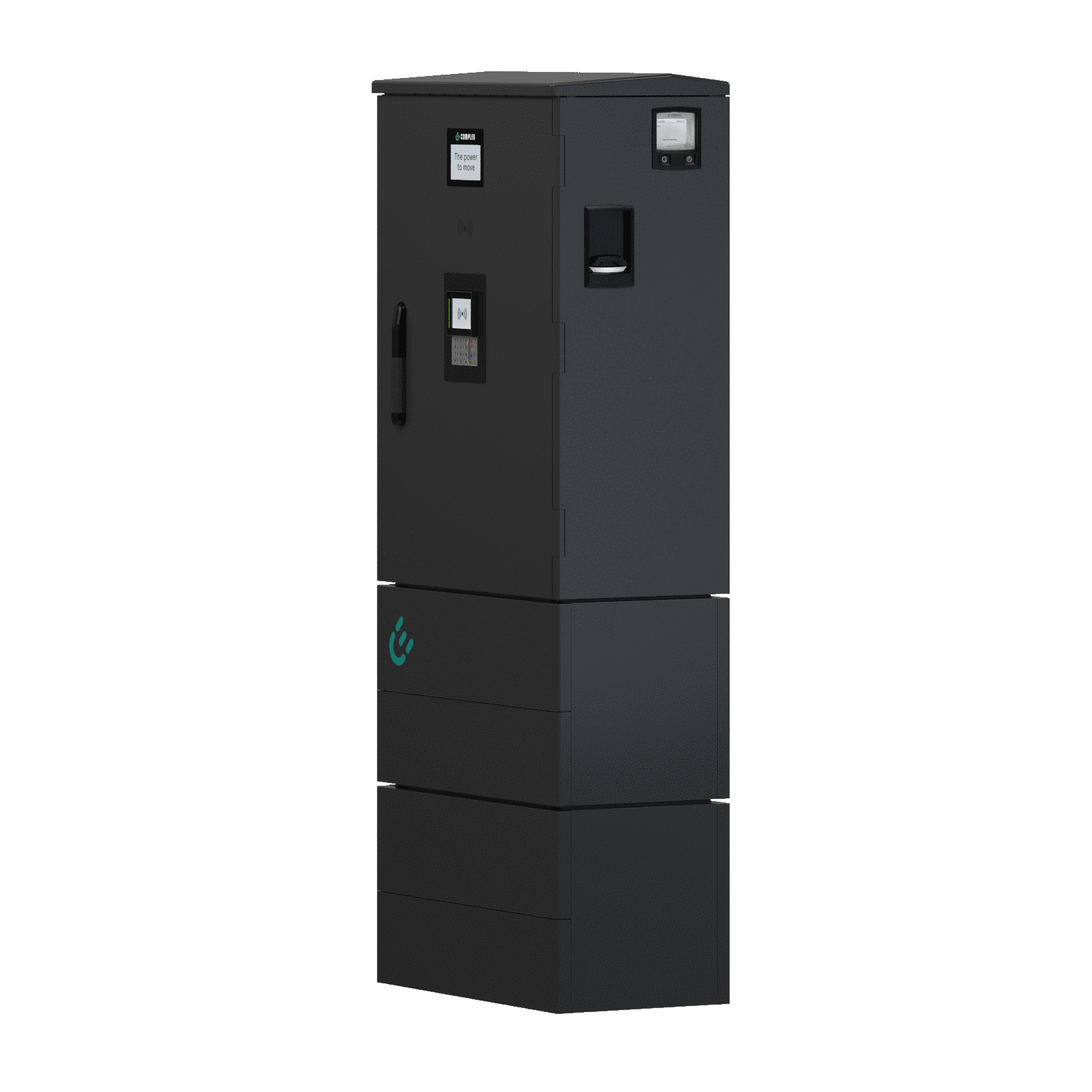

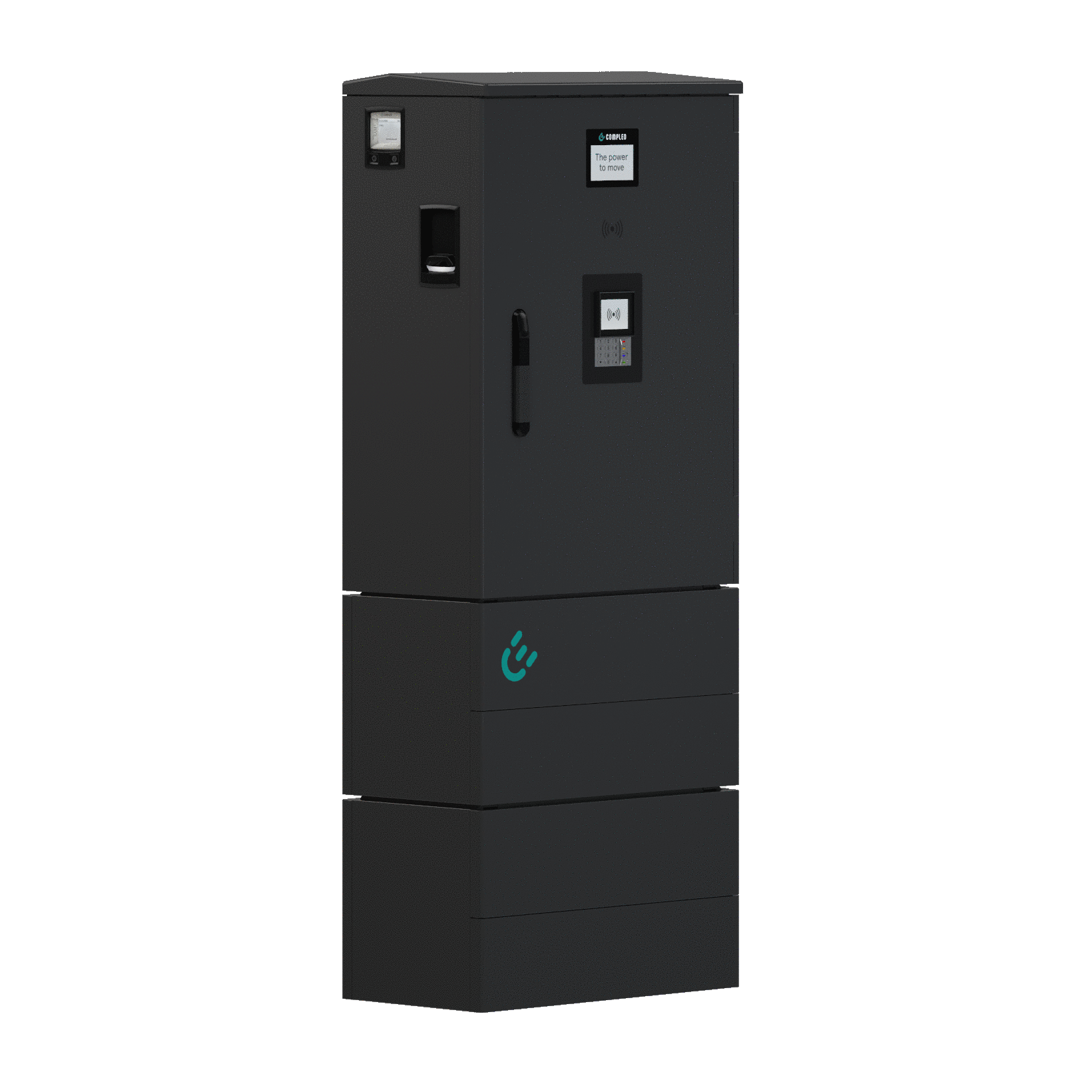

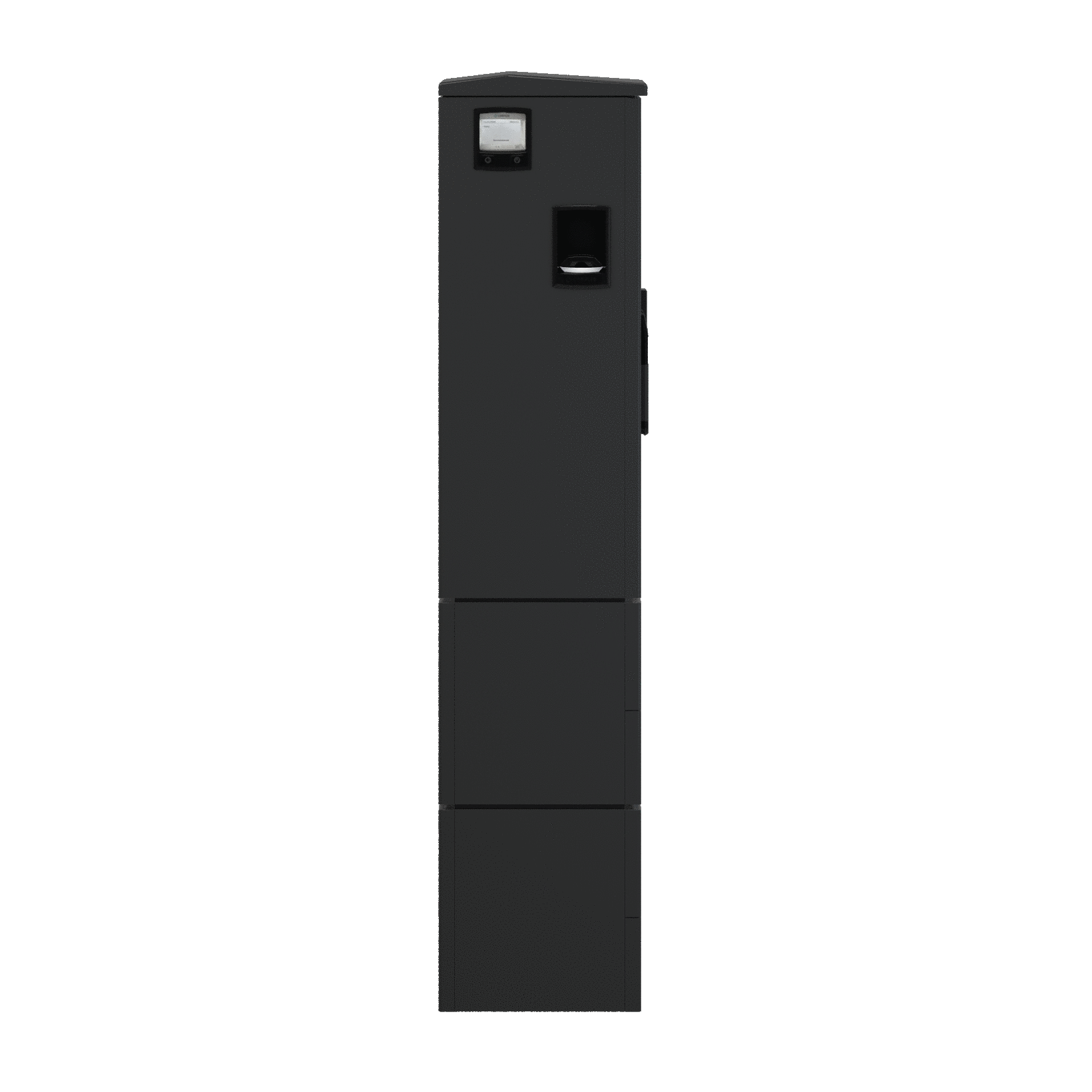

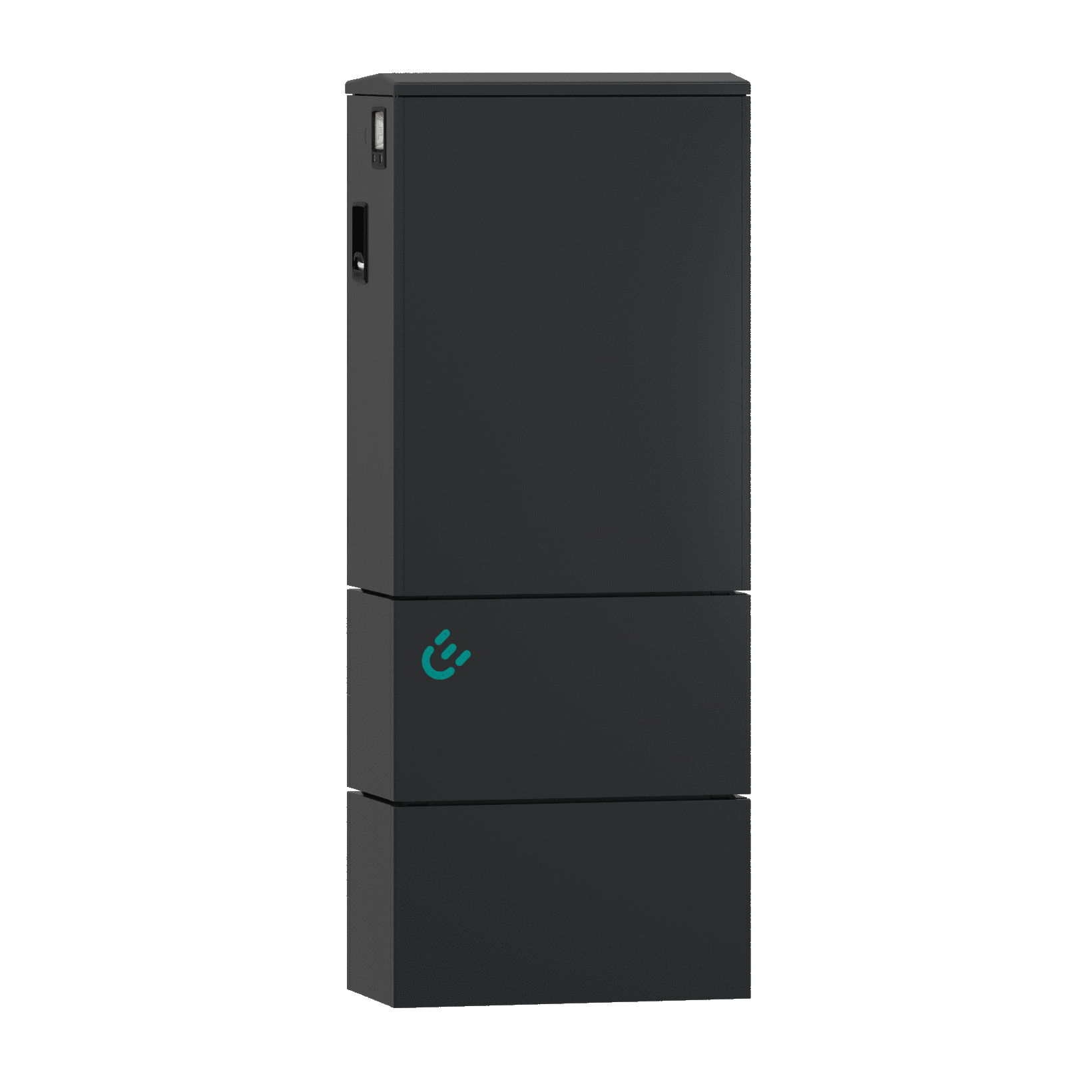

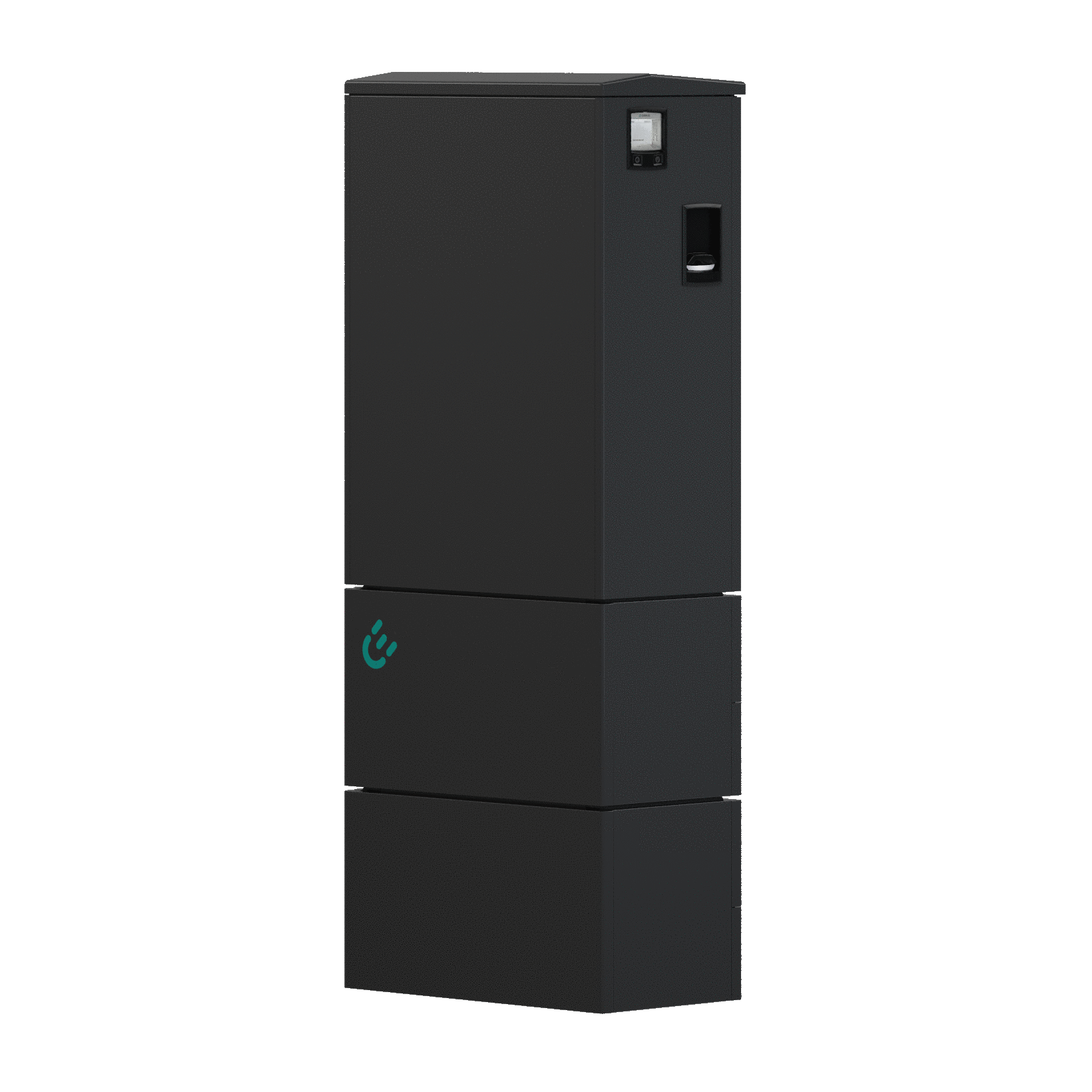

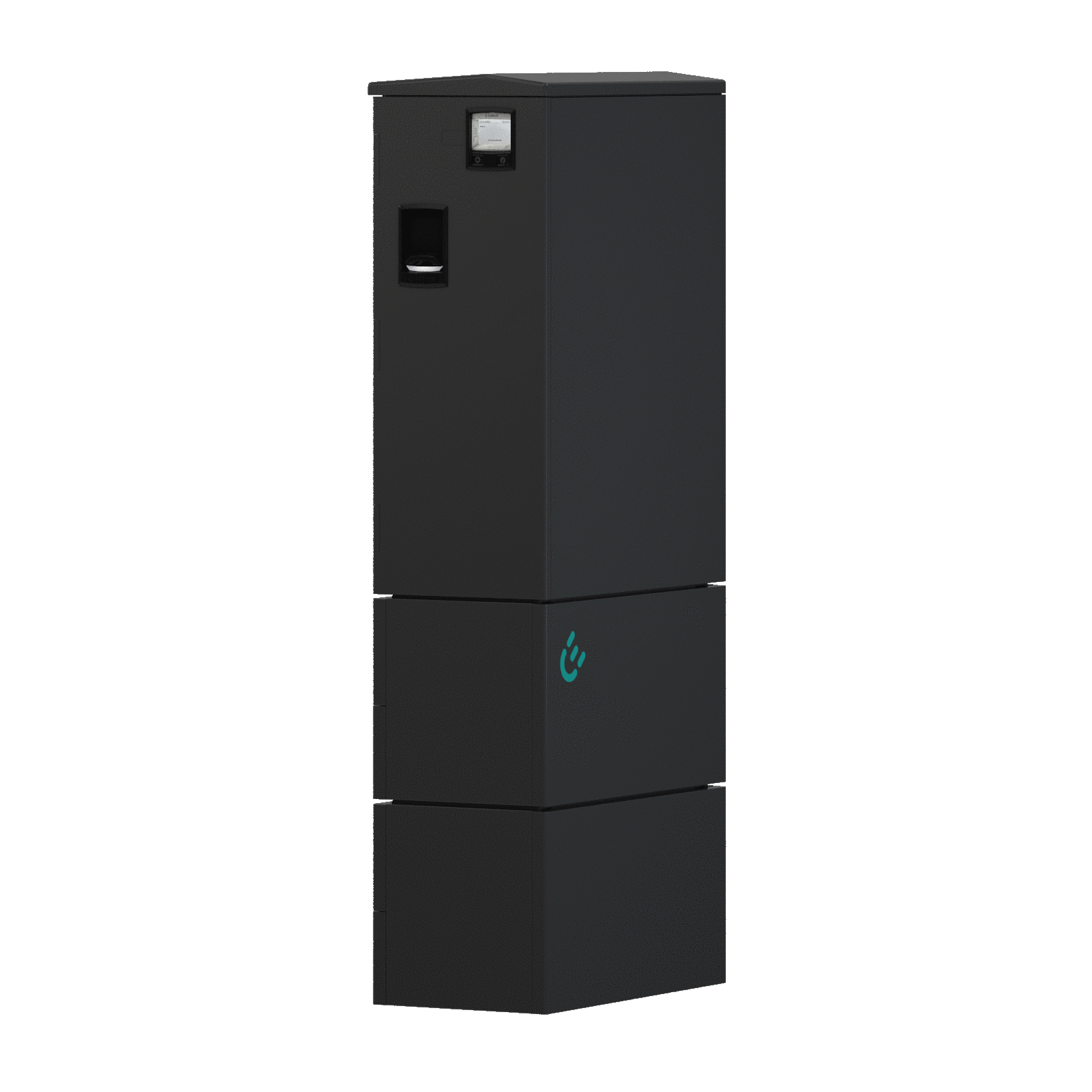

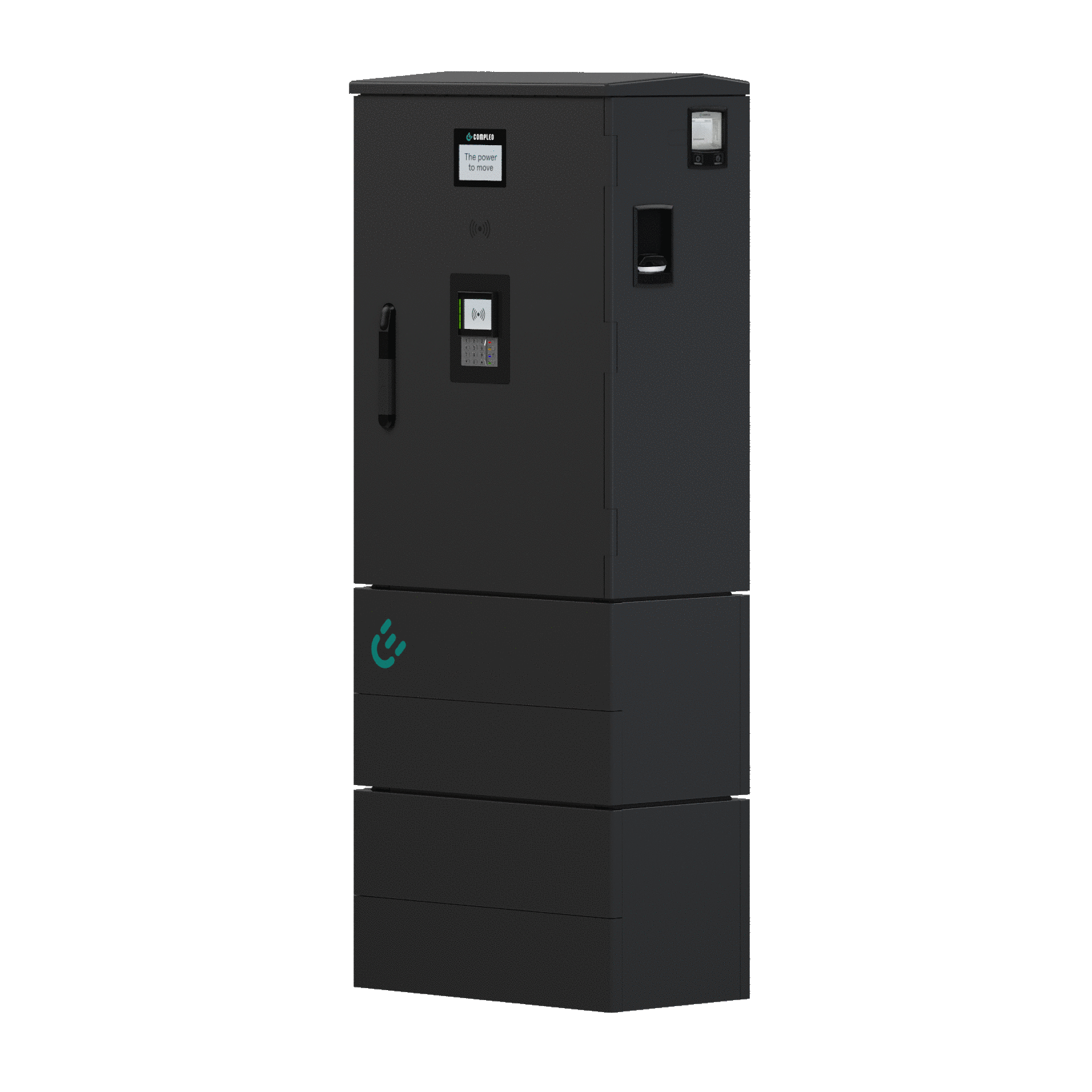

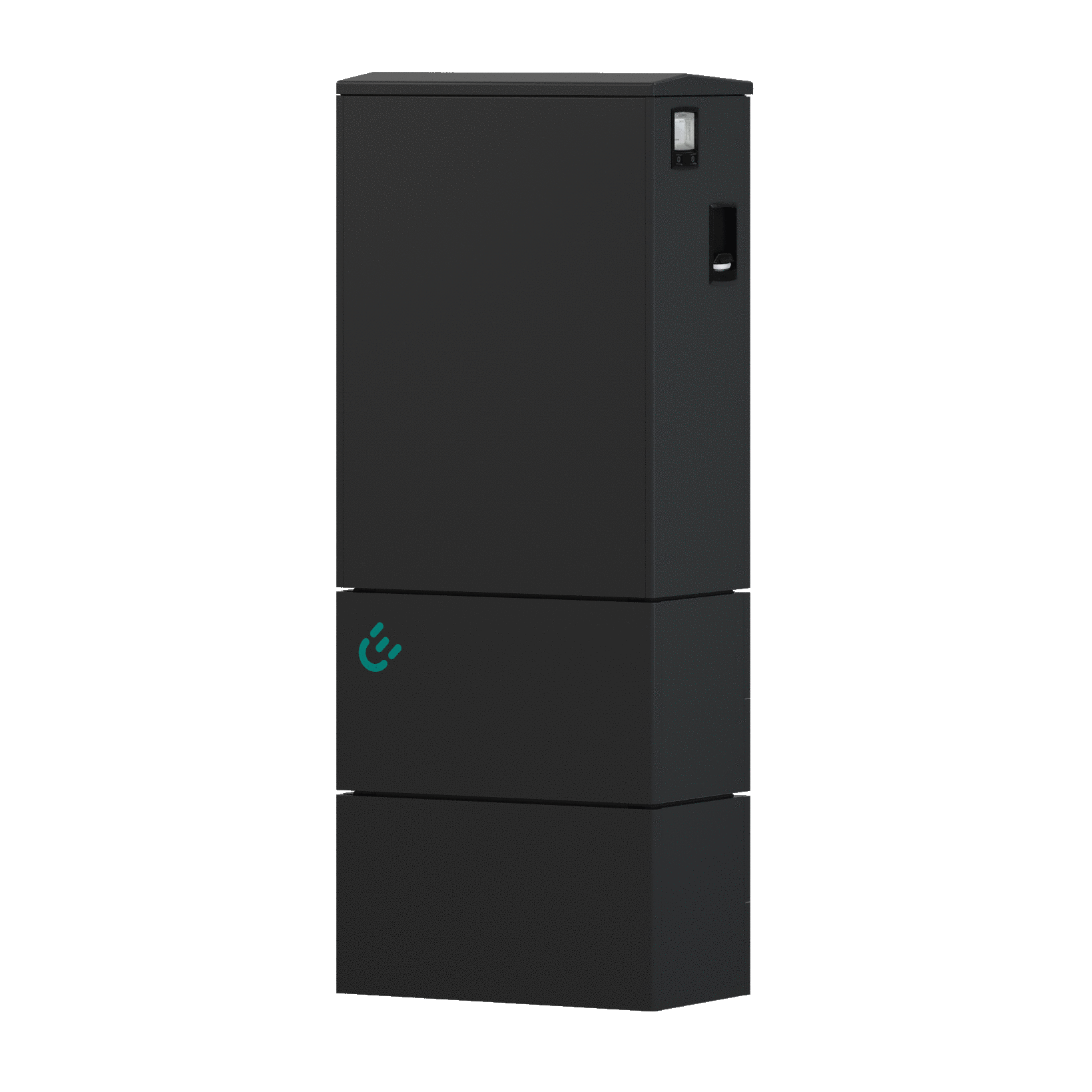

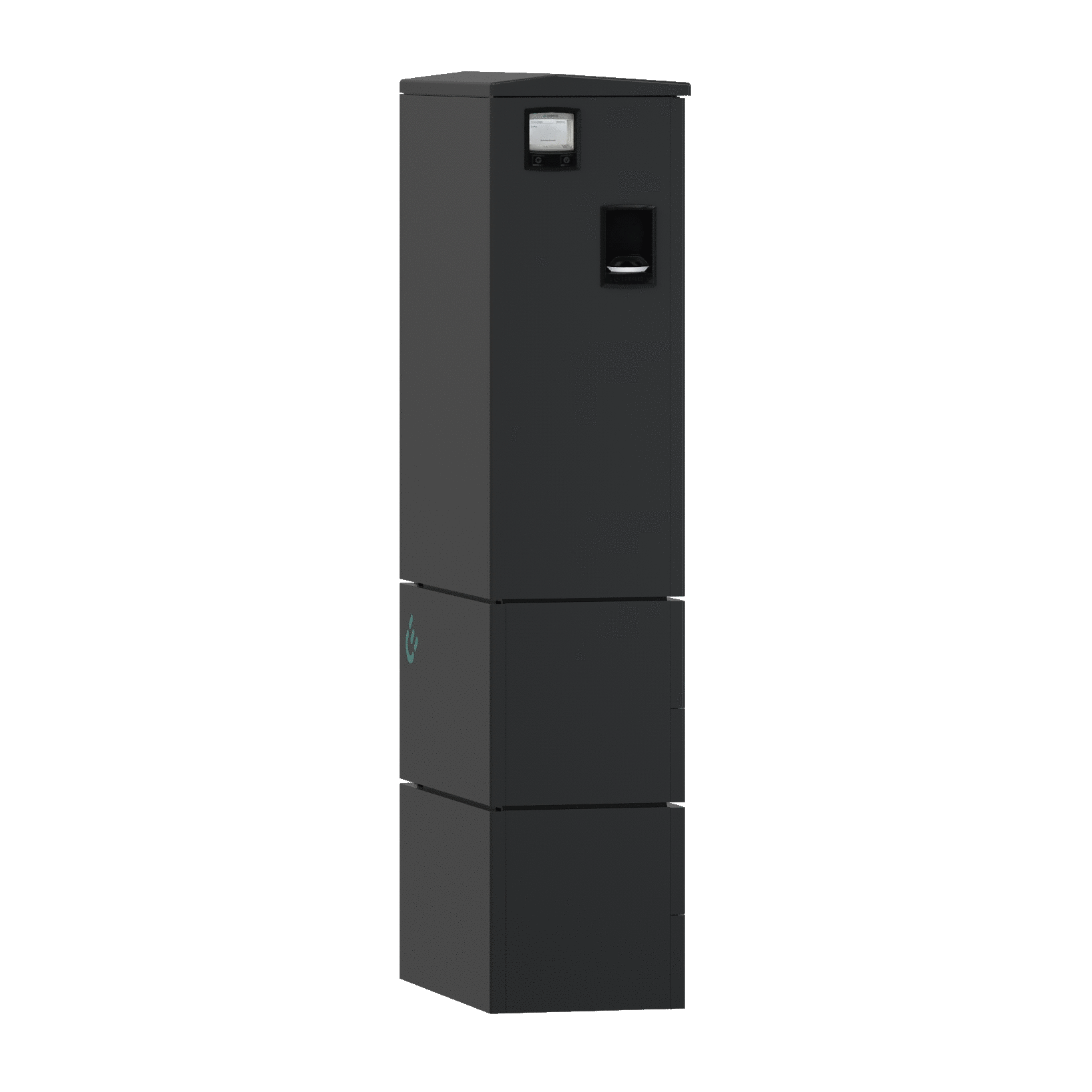

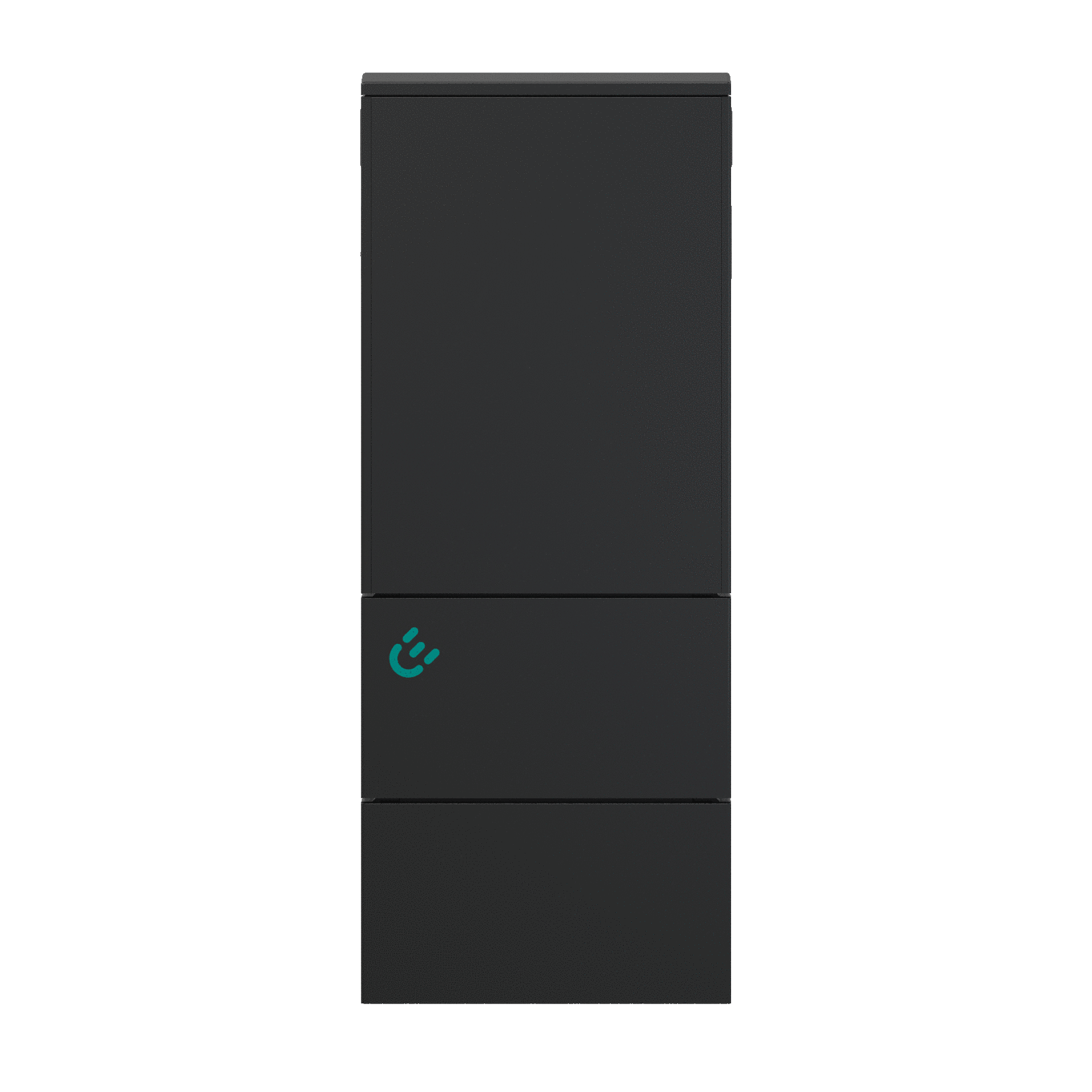

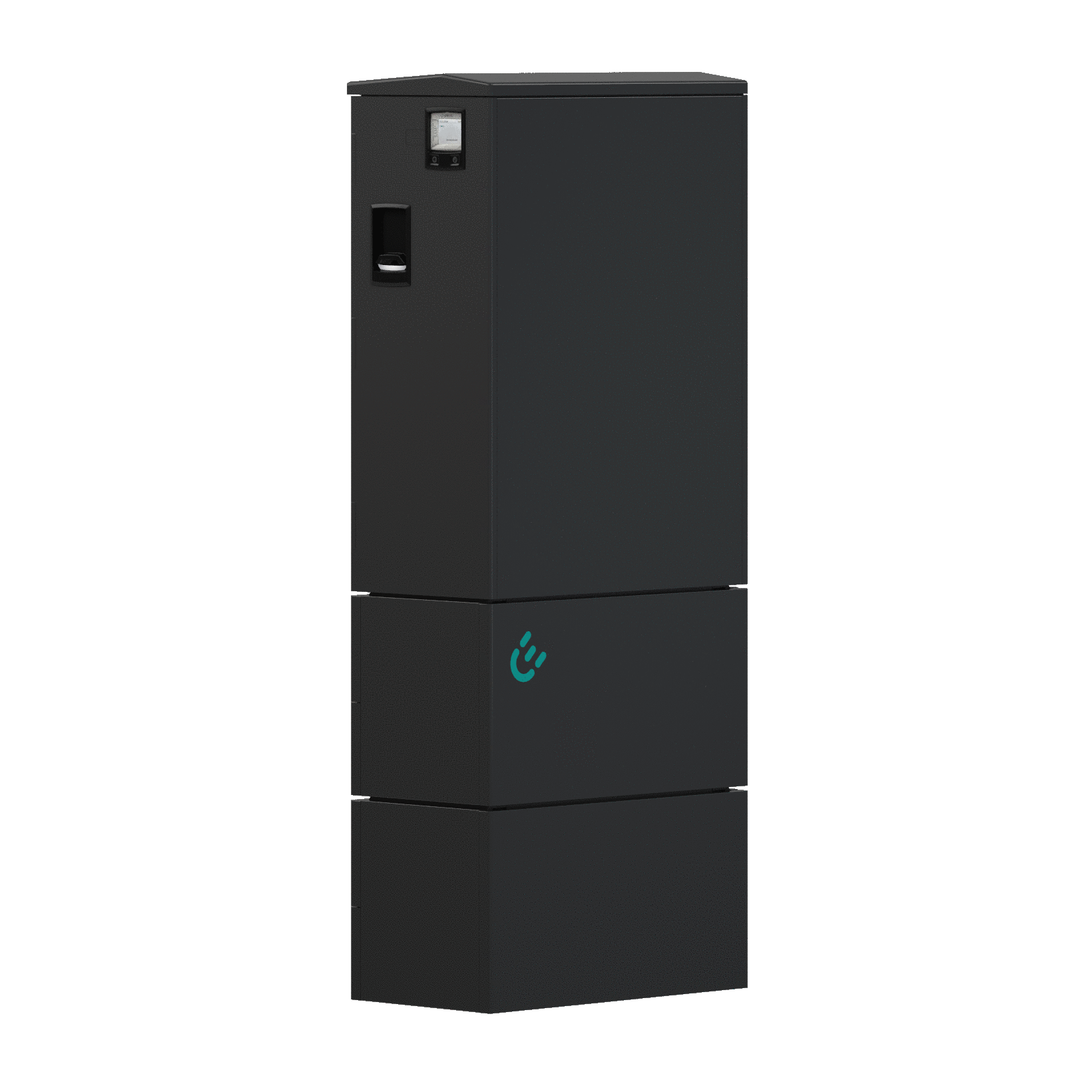

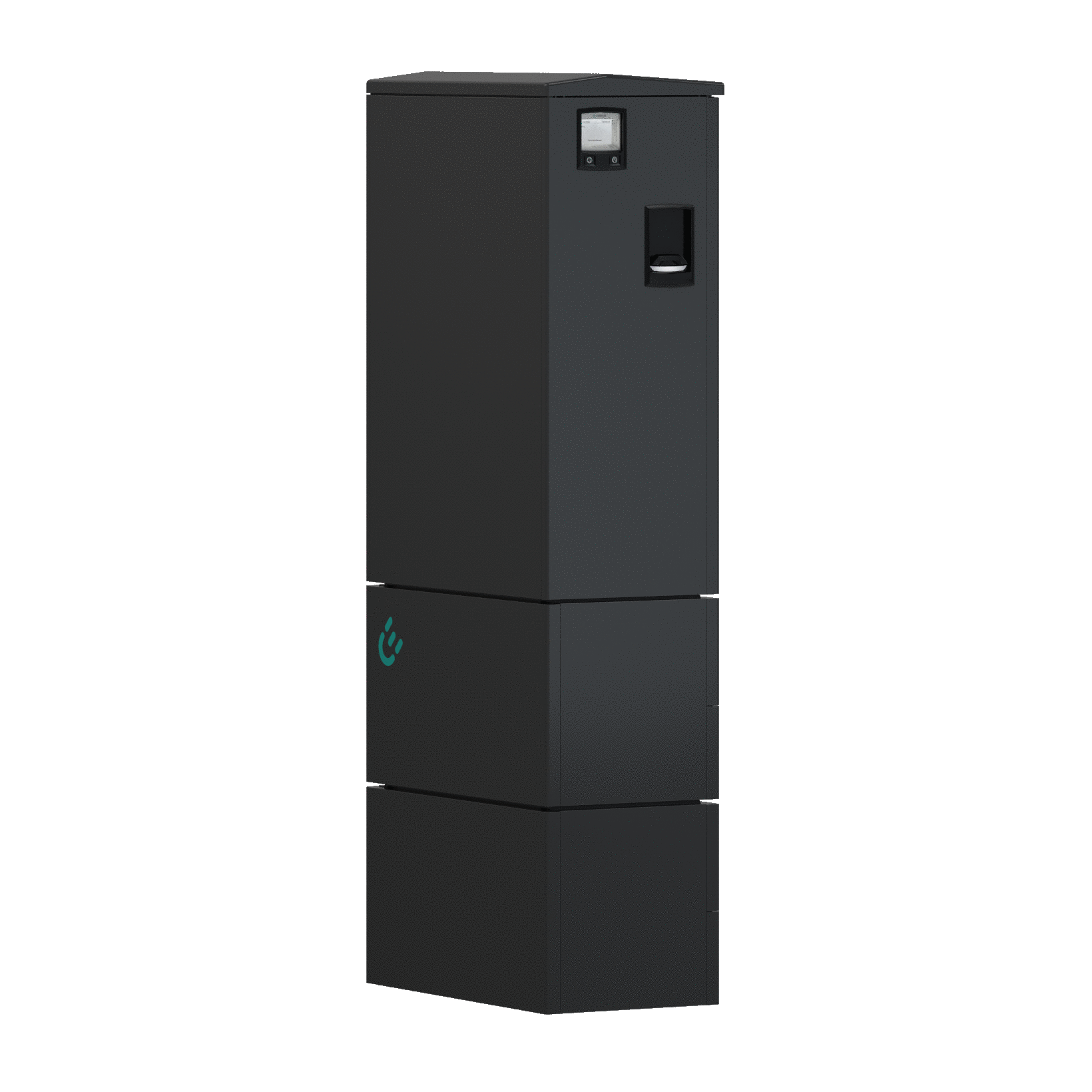

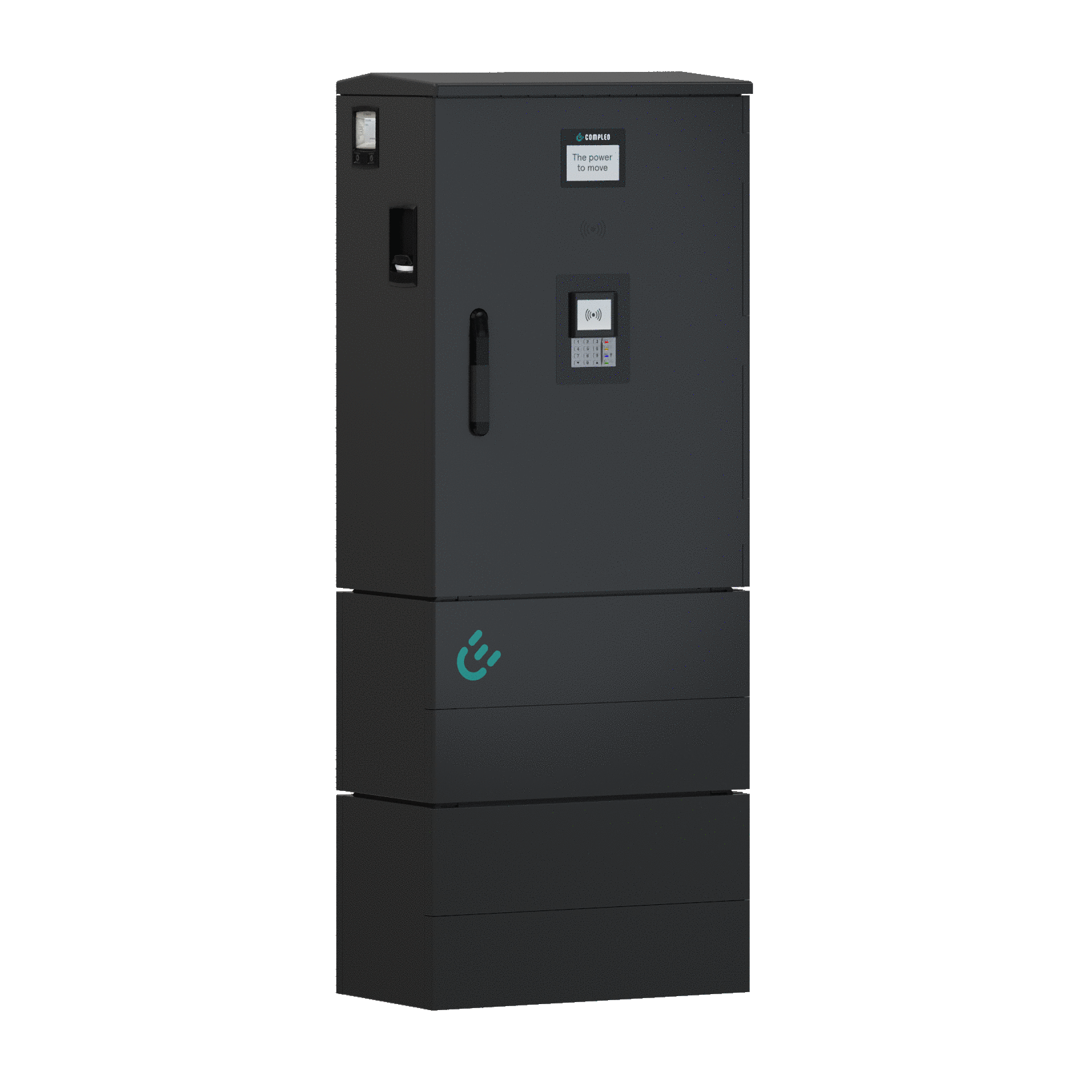

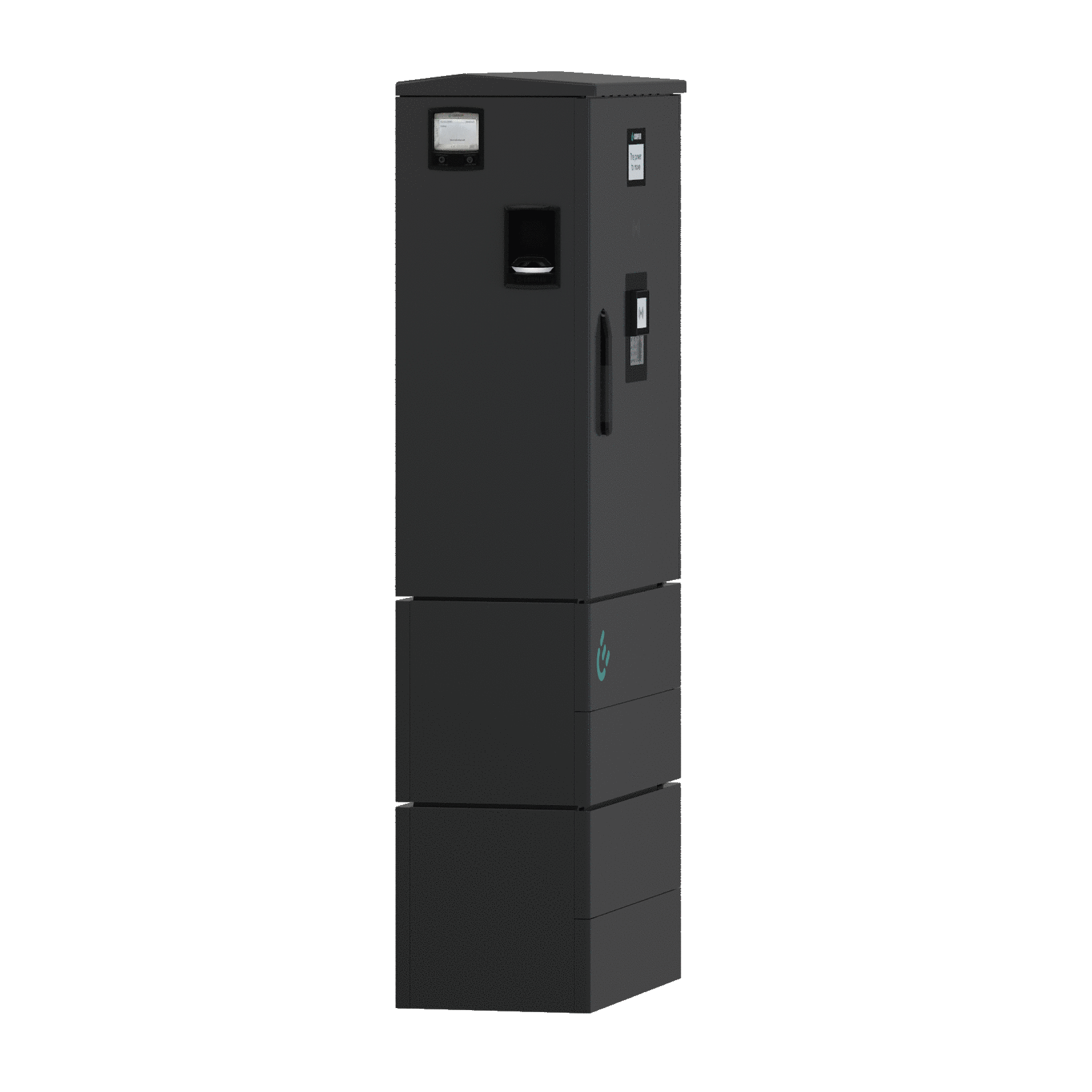

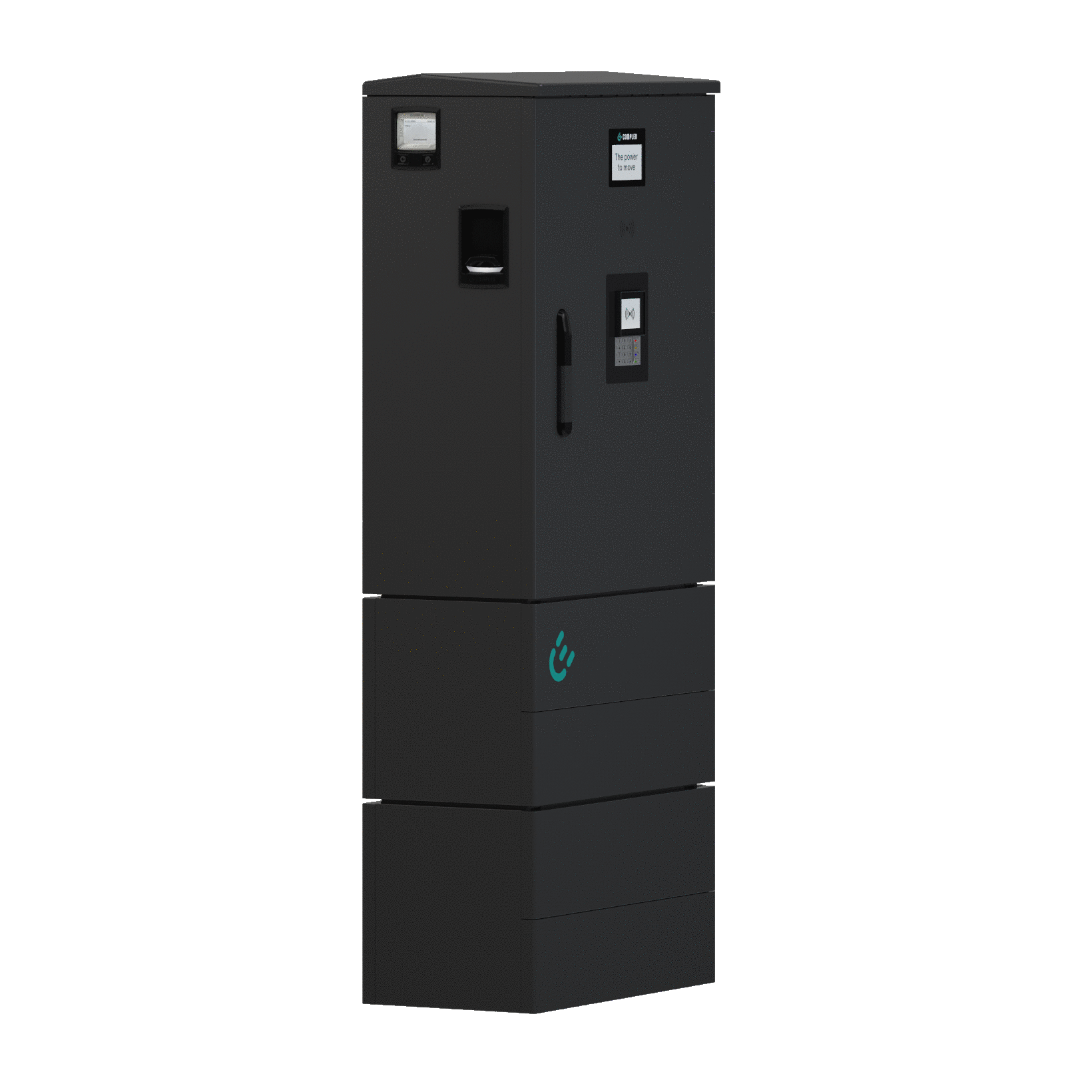

DUO ims

AC charging station
Likes being in the public eye

Up to 2 x 22 kW of charging power (AC)

The DUO ims was developed especially for being connected directly to the public distribution grid. All components are already integrated into this all-in-one charging station, reducing installation time and costs.

  • Full compliance with VDE-AR-N 4100 standard
  • Compliant with German calibration law

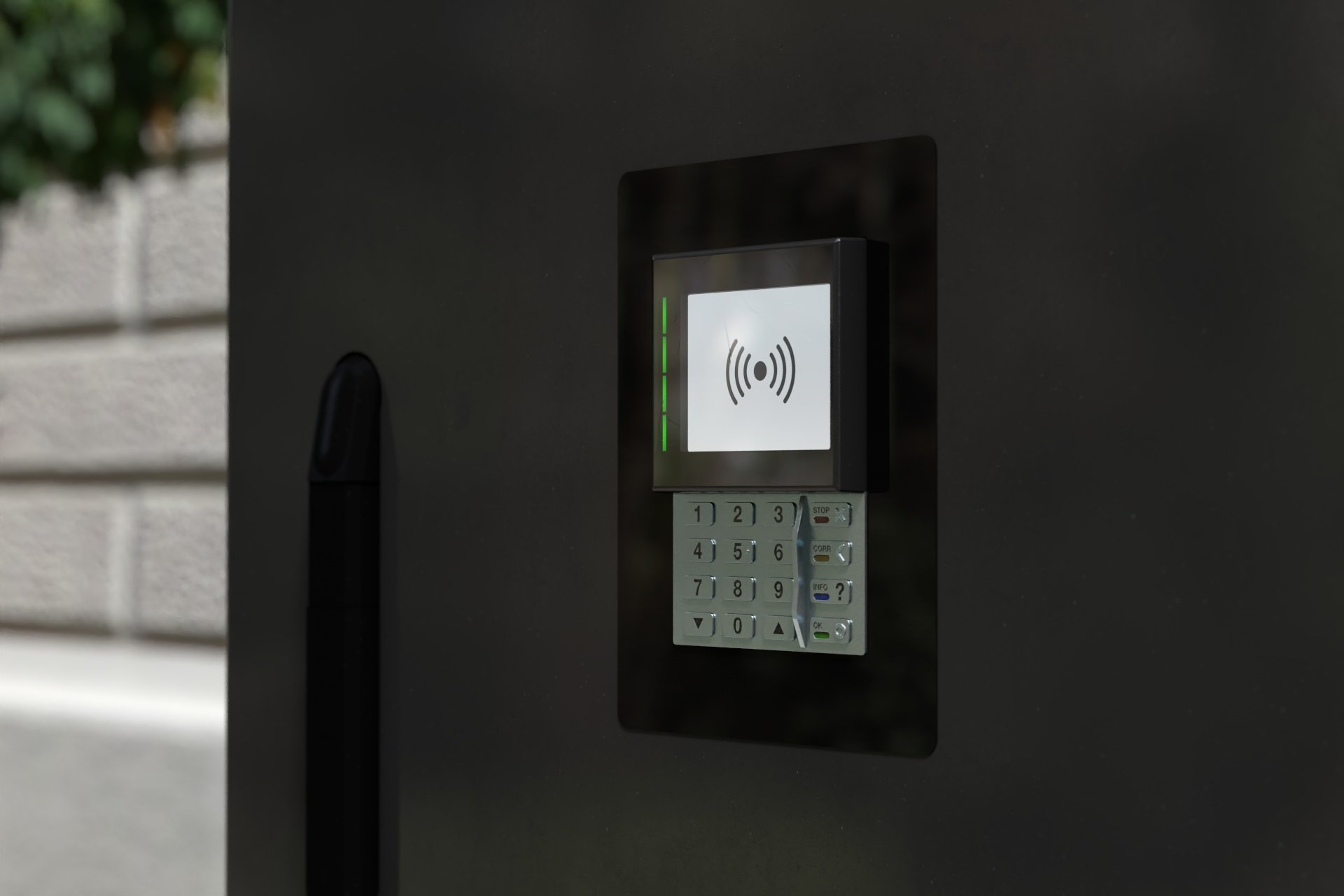

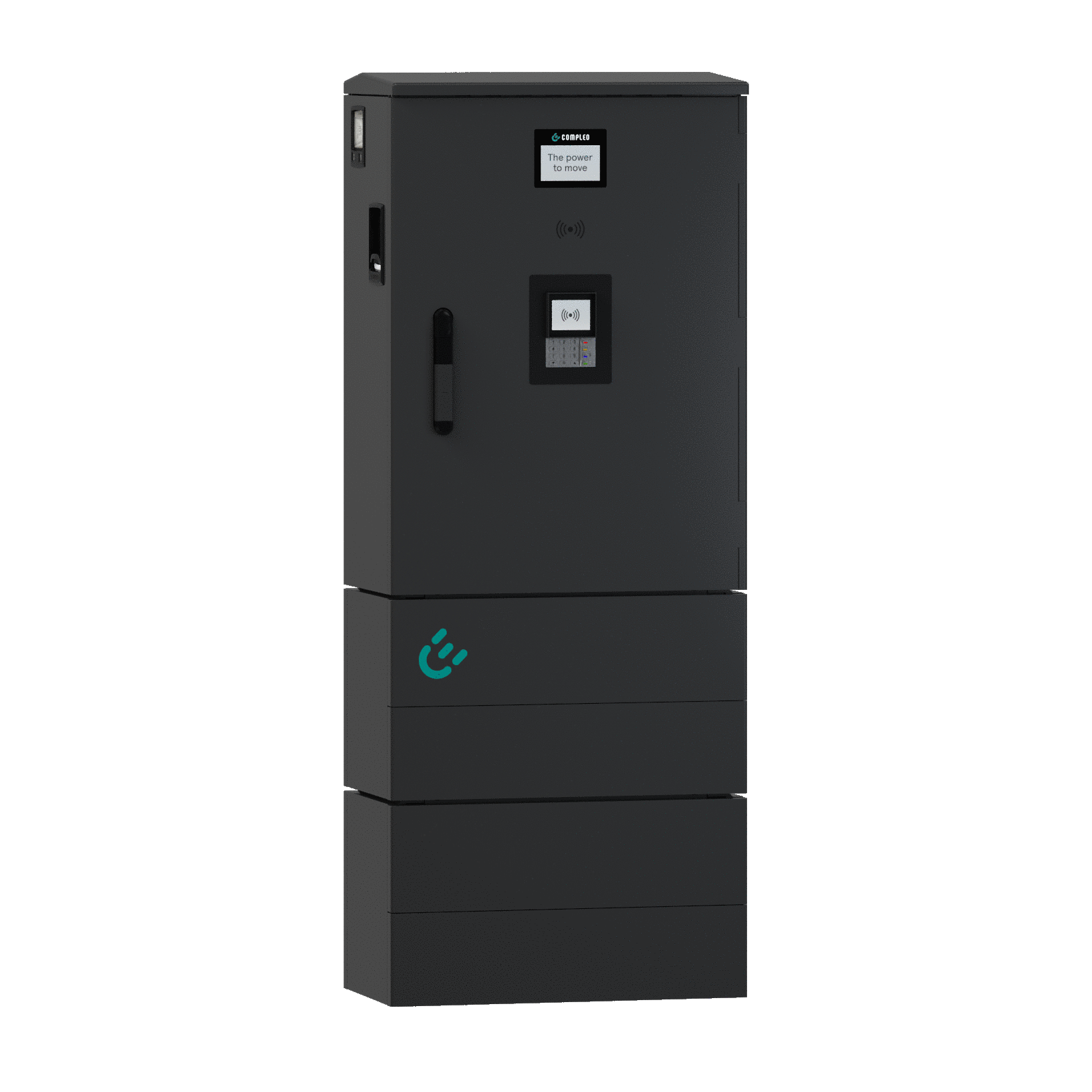

  • With integrated payment terminal and pin pad
  • Single-hand operation
Loading...

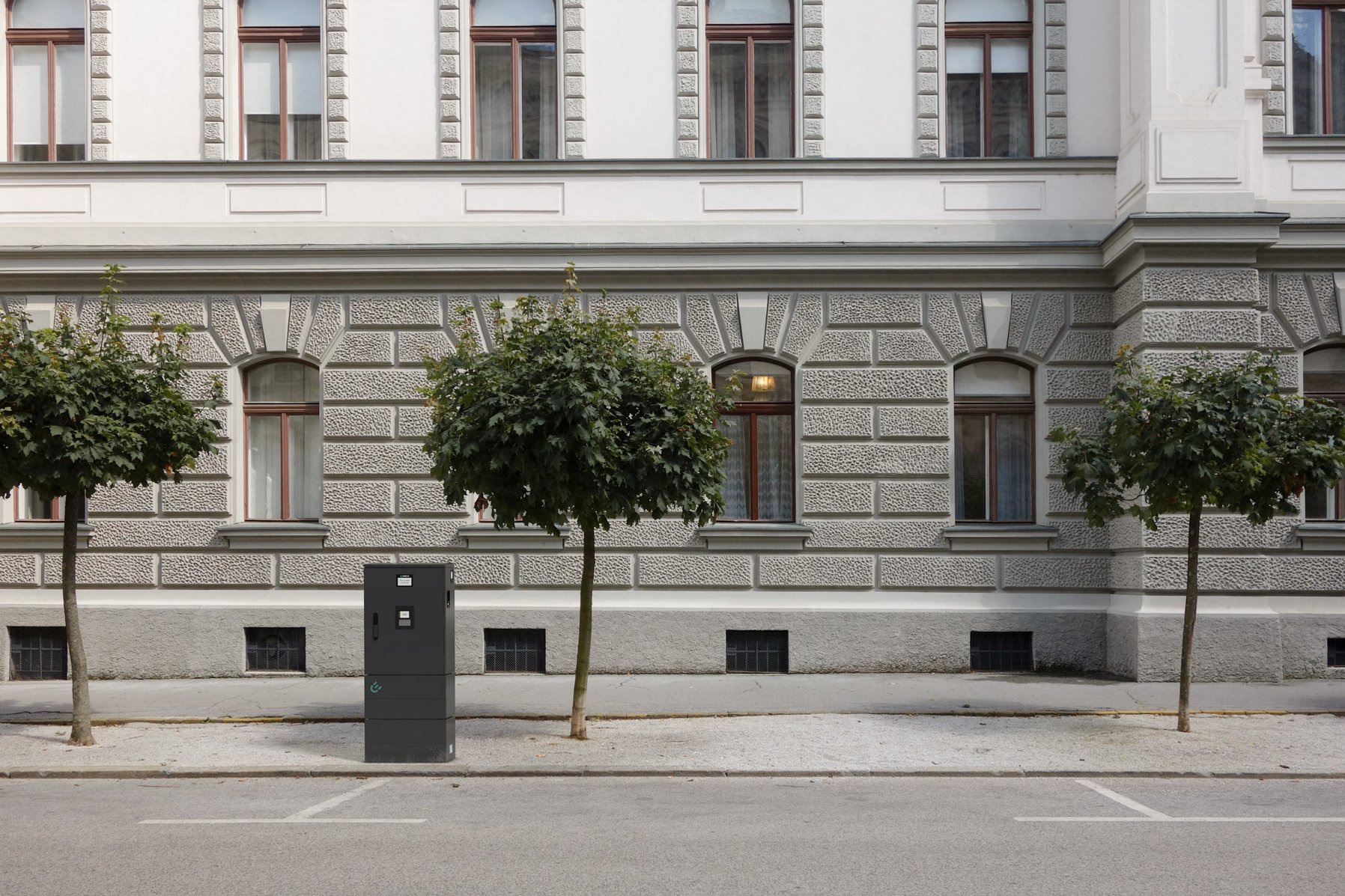

Likes being in the public eye

The DUO ims is the optimal solution for operators of public charging infrastructure. The charging station is compatible with all types of public low-voltage distribution grids and thus helps saving on additional connection costs.

Loading...

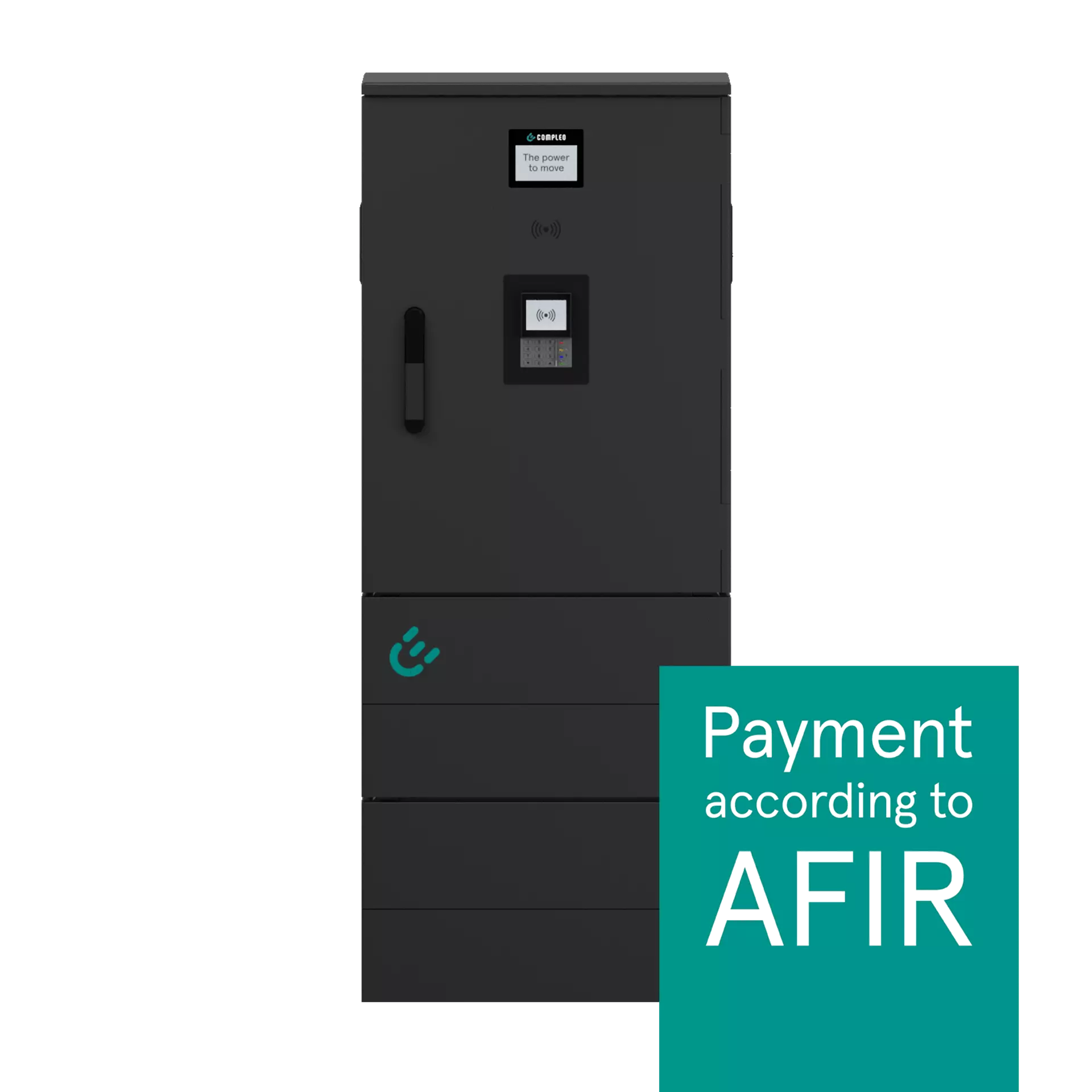

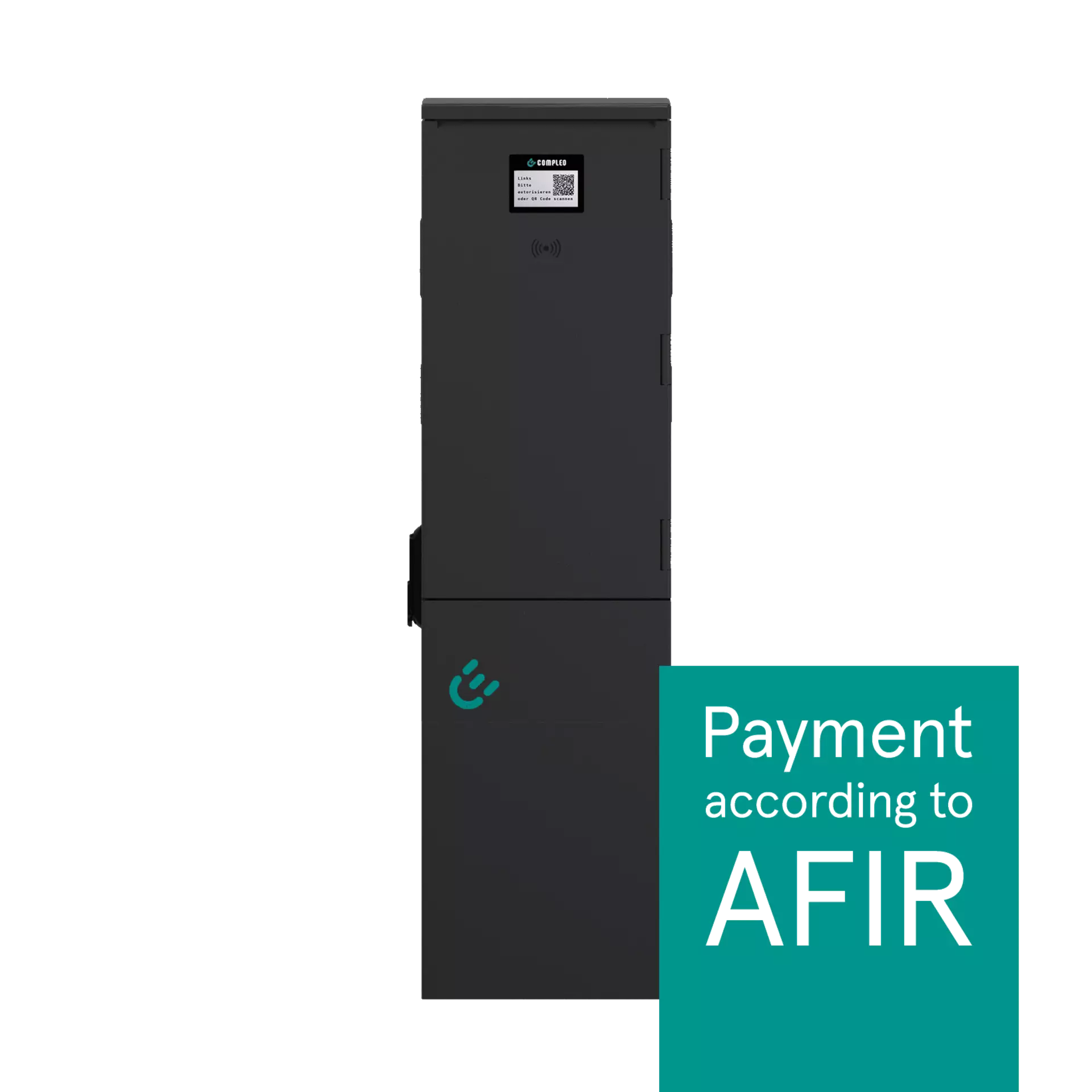

Payment fully integrated

A robust and fully integrated payment solution is ideal, especially for public charging stations. That is why, in Germany, the DUO ims is now optionally available with payment terminal and thus already complies with the future German charging station regulations. Ready for all payment methods.

Learn more

Loading...
Can be combined with any OCPP-compatible IT backend
Loading...
Extremely robust sheet moulding compound (SMC) enclosure: corrosion-free – forever
Loading...
For direct connection to the distribution grid
Loading...

Precise functionality – with any IT backend

The DUO ims can be controlled from any IT backend and provides calibration law-compliant metering via SAM module. SAM technology enables the user to monitor and check consumption without being connected to the IT backend.



Control ability according to German law

Our products can be controlled by grid operators and therefore comply in Germany with §14a EnWG. The charging point can be controlled either via Modbus or via OCPP Smart Charging using a suitable energy management system.

The DUO ims can also be controlled via control contacts.

Backends with successful integration of the DUO ims

List of compatible backends

Provider

Controller P4

Constroller P5

OCPP 1.6

ACEA

x

x

Yes

Allego

x

-

Yes

Ampeco

x

x

Yes

be.energised

x

x

Yes

chargecloud

x

x

Yes

clever

x

x

No

comfortcharge

x

-

Yes

Compleo Enterprise

x

x

Yes

driivz

x

x

Yes

E.ON

x

x

Yes

Ecards ESB

x

-

Yes

eCarOC

x

x

Yes

eCarUp

x

x

Yes

Elaad

x

-

Yes

electromaps

x

x

Yes

Elli

x

-

Yes

eneco

x

-

Yes

Enio

x

-

Yes

eOperate

x

x

Yes

Etrel

-

x

Yes

Everon

x

x

Yes

Frauenhofer Stuttgart

x

-

No

Freshmile

x

-

Yes

Greenflux

x

x

Yes

Grid&co

x

-

Yes

Ladenetz/Smartlab (former Lisy)

x

x

Yes

LastMileSolutions

x

-

Yes

Mer (former Gronn Kontakt)

x

-

No

Powerdale

x

-

No

Robotron

-

x

No

SAP e-Mobility Product

-

x

Yes

Skidata

-

x

Yes

Smartics

x

-

Yes

Stromnetz Hamburg

x

x

Yes

Swisscharge

x

x

Yes

TCC (GLS Mobility)

x

x

Yes

TheNewMotion

x

x

Yes

Ultima Payments

-

x

No

Vattenfall

x

-

Yes

Virta

x

x

Yes

Vlotte

x

x

Yes

Compare our charging solutions

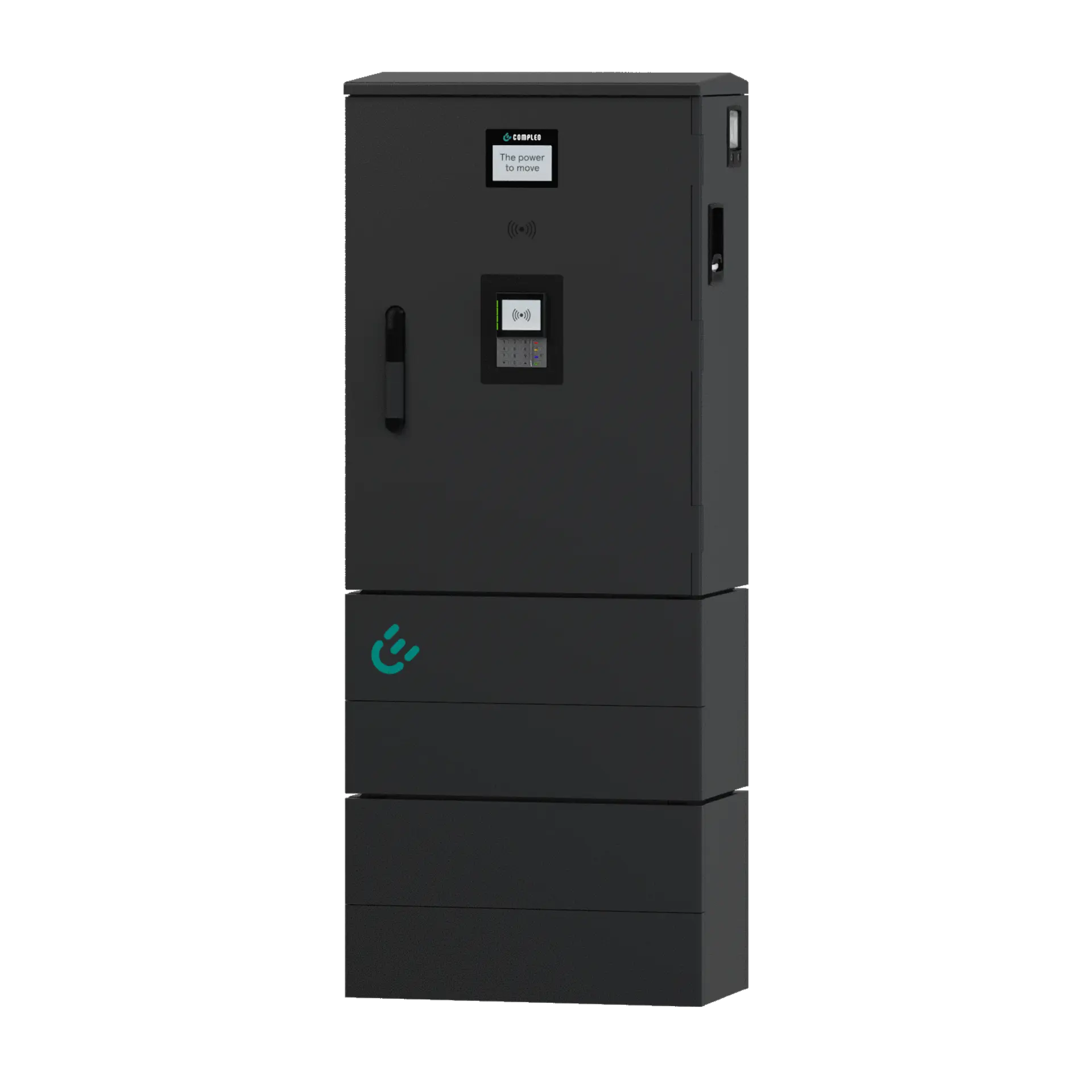

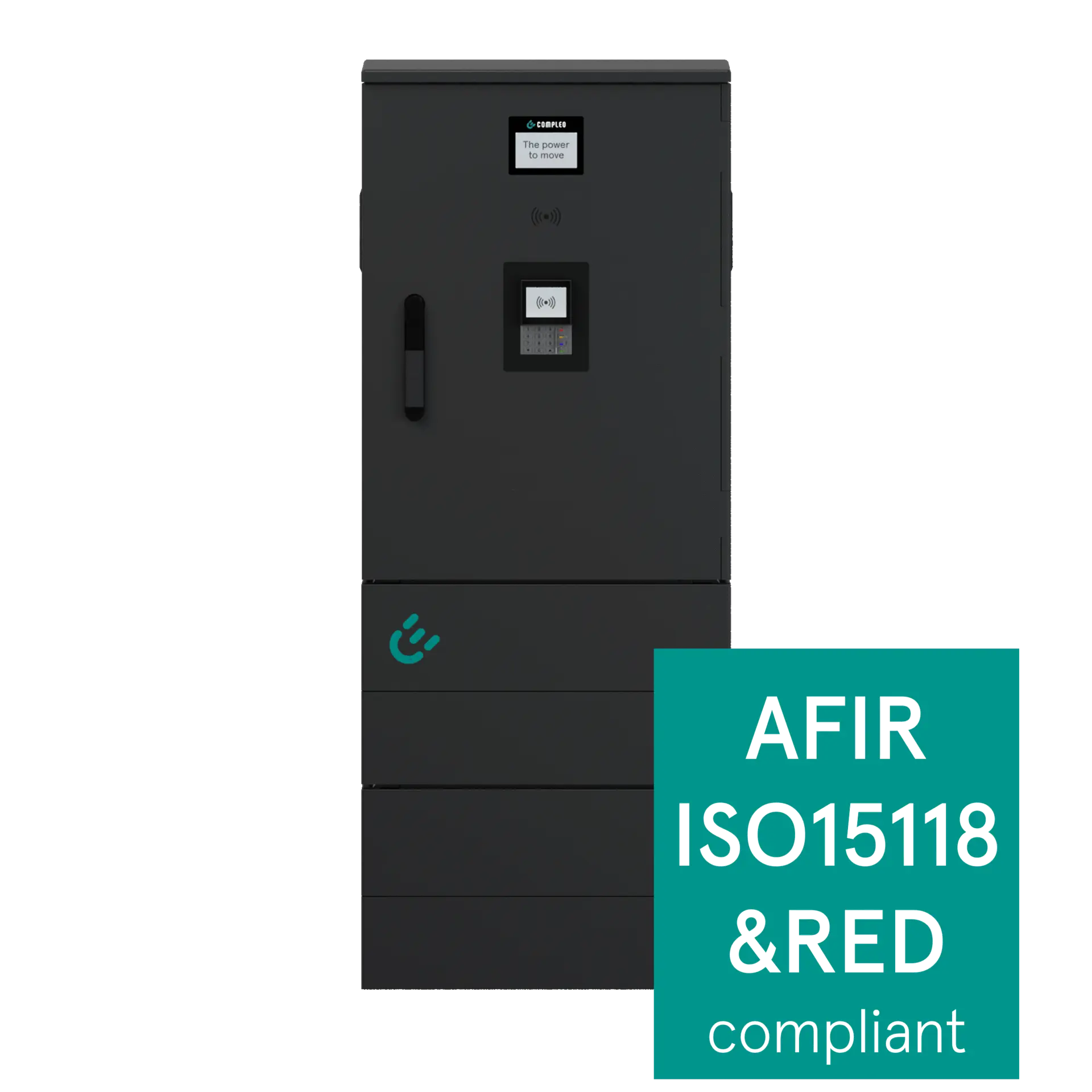

DUO ims

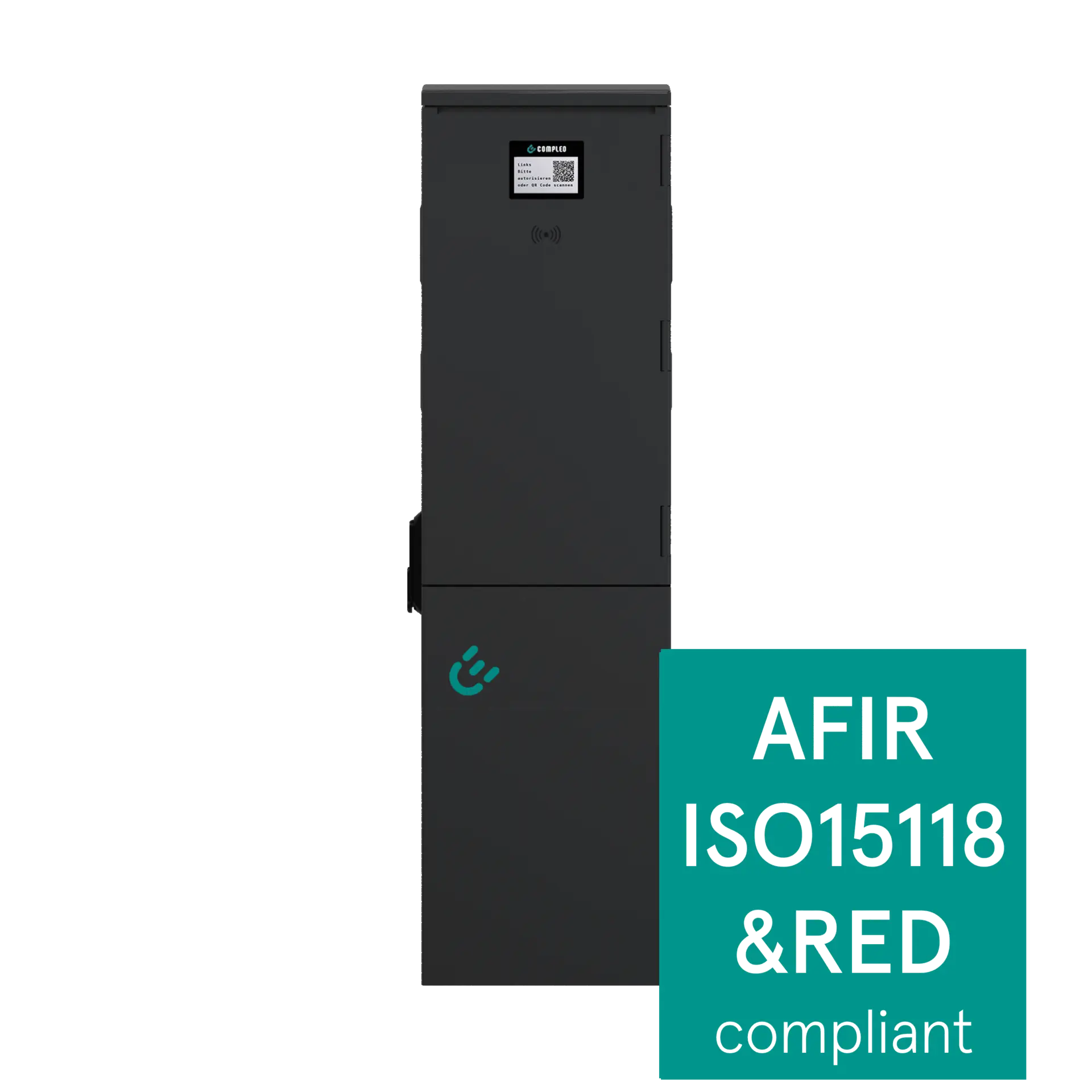

DUO

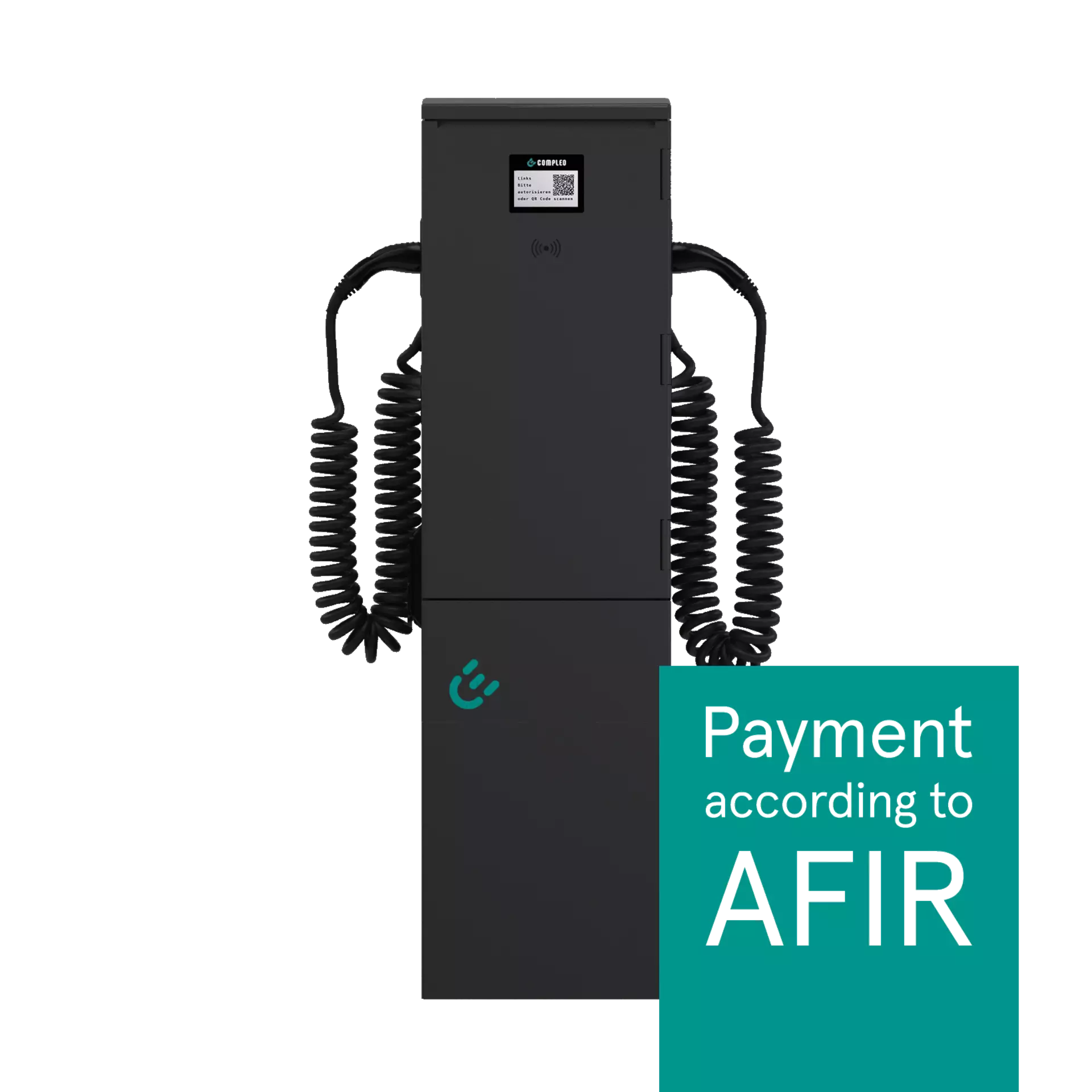

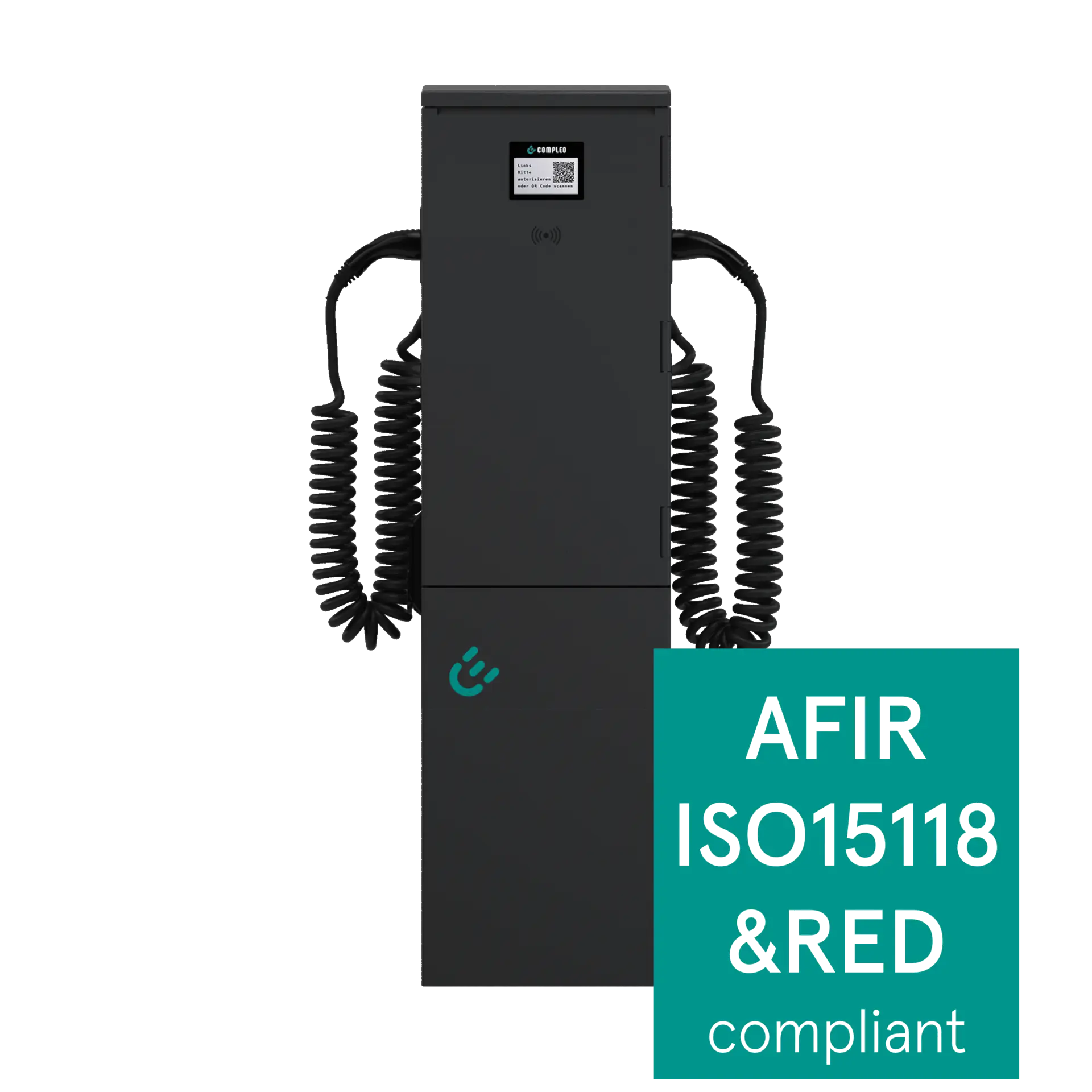

DUO fleet

Maximum charging power per charging point 22 kW, configurable 22 kW 22 kW: type 2 socket; 11 kW: type 2 spiral lead; configurable
Number of charging points 2 2 2
Charging connector 2x type 2 socket, incl. sliding cover 2x type 2 socket, incl. sliding cover 2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m)
Compliant with calibration law 2x MID-compliant smart meter with SAM® storage and display module 2x MID-compliant smart meter; optional with SAM® storage and display module 2x MID-compliant smart meter; optional with SAM® storage and display module
Protection 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C40 3P; 1x circuit breaker B16 1P 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C40 3P; 1x circuit breaker B16 1P 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P
Communication interface to IT backends OCPP 1.6 JSON OCPP 1.6 JSON OCPP 1.6 JSON
Authorisation Free charging, RFID, smartphone app, direct payment via debit and credit card Free charging, RFID, smartphone app, Giro-e able Free charging, RFID, smartphone app, Giro-e able

Documents for download

With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.

Document Centre

Product name
DUO ims

Number of charging points
2

Charging connector
2x type 2 socket, incl. sliding cover

Authorisation
Free charging, RFID, smartphone app, Giro-e able
optional: credit card terminal

Display
Size: 4.3’’ display

User Interface

Maximum charging output per charge point
22 kW, configurable

Nominal voltage, number of phases, nominal frequency
400 V; 3; 50 Hz

Maximum input current
32 A / 63 A per phase, configurable

Protection
2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P

Protocols for communication with IT backends
OCPP 1.6 JSON

Meter / German calibration law
2x MID-compliant smart meter with SAM® storage and display module

Mounting type
Base mounted (bm)

Enclosure material
Sheet moulding compound (SMC)

IP protection class
Enclosure: IP44;
relevant components: IP54

Impact resistance
IK10

Weight
Approx. 72 - 77 kg, depending on added options

Lock
Swivelling lever, built-in space for one profile half cylinder

Environmental operating temperature
-25 °C to +40 °C

Approvals
CE, RoHS, REACH, GPSD, WEEE

Standards
DIN EN 61851-1;
DIN IEC/TS 61439-7

Dimensions (HxWxD)
Floor mounted version: 1483 x 590 x 320 mm

SMC base + base filler granulate
For mounting in ground

  • pdf (317 KB)

    EN_CCS_Data_sheet_DUO_ims_PT_240619.pdf

    Download
  • pdf (108 KB)

    Description for tenders DUO ims, English

    Download
