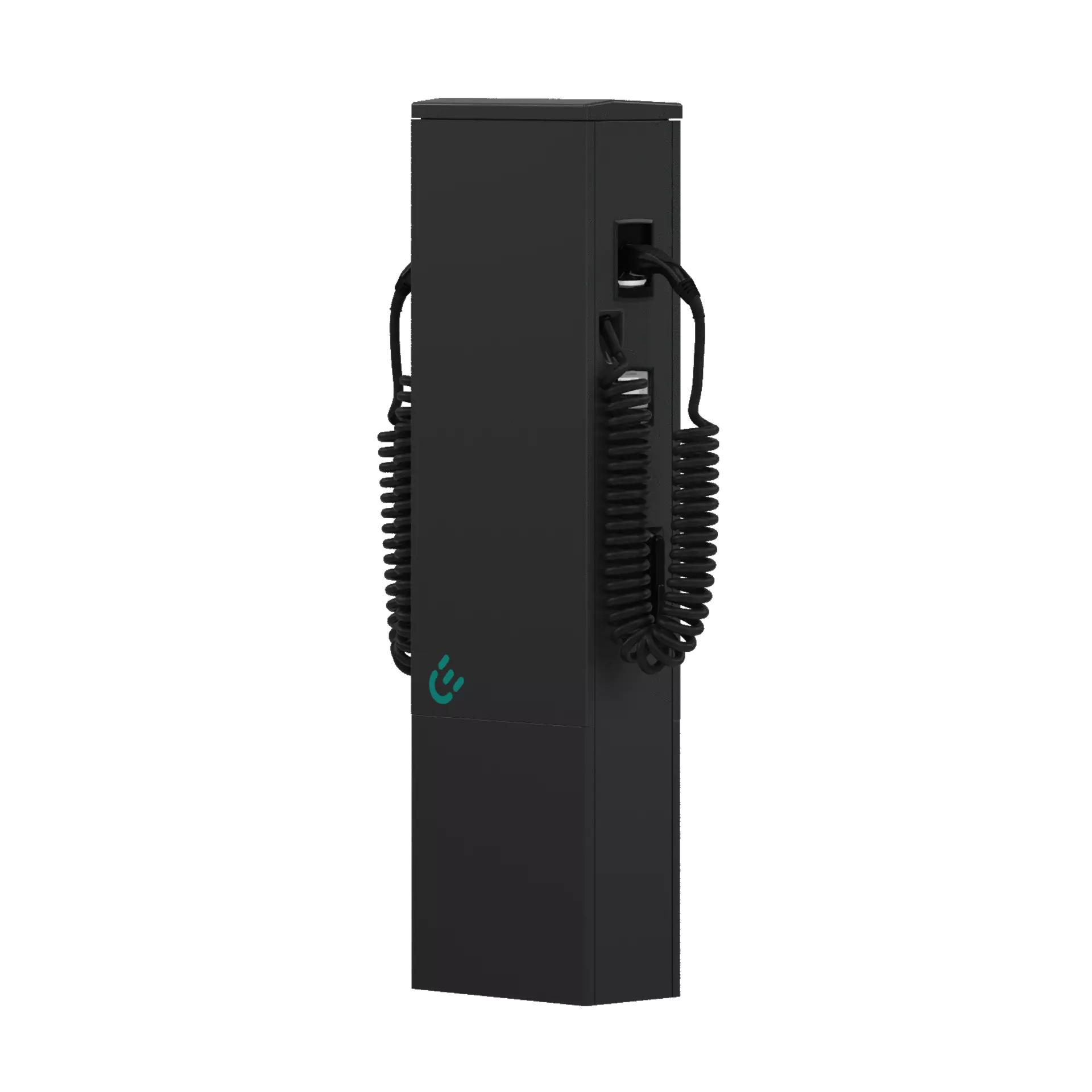

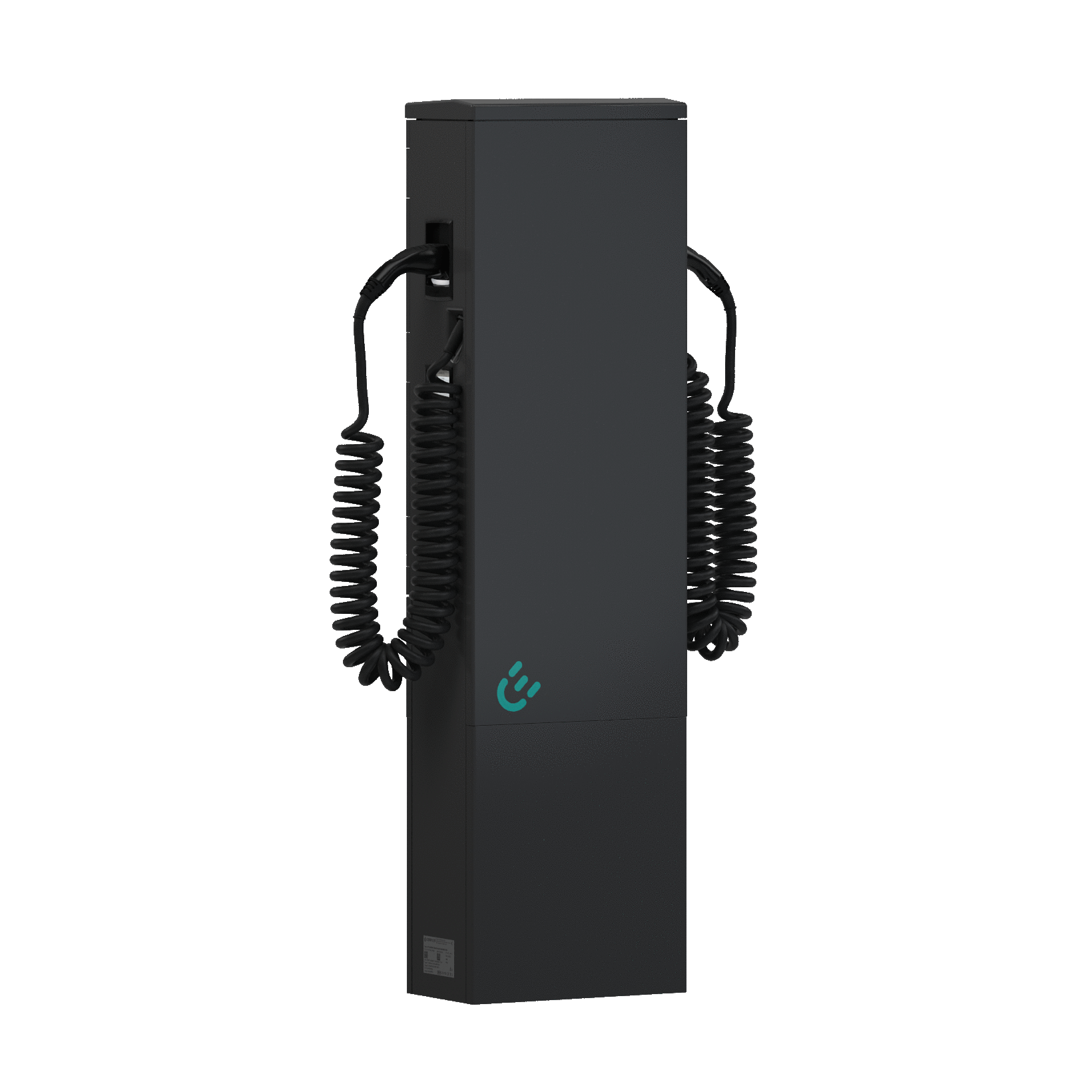

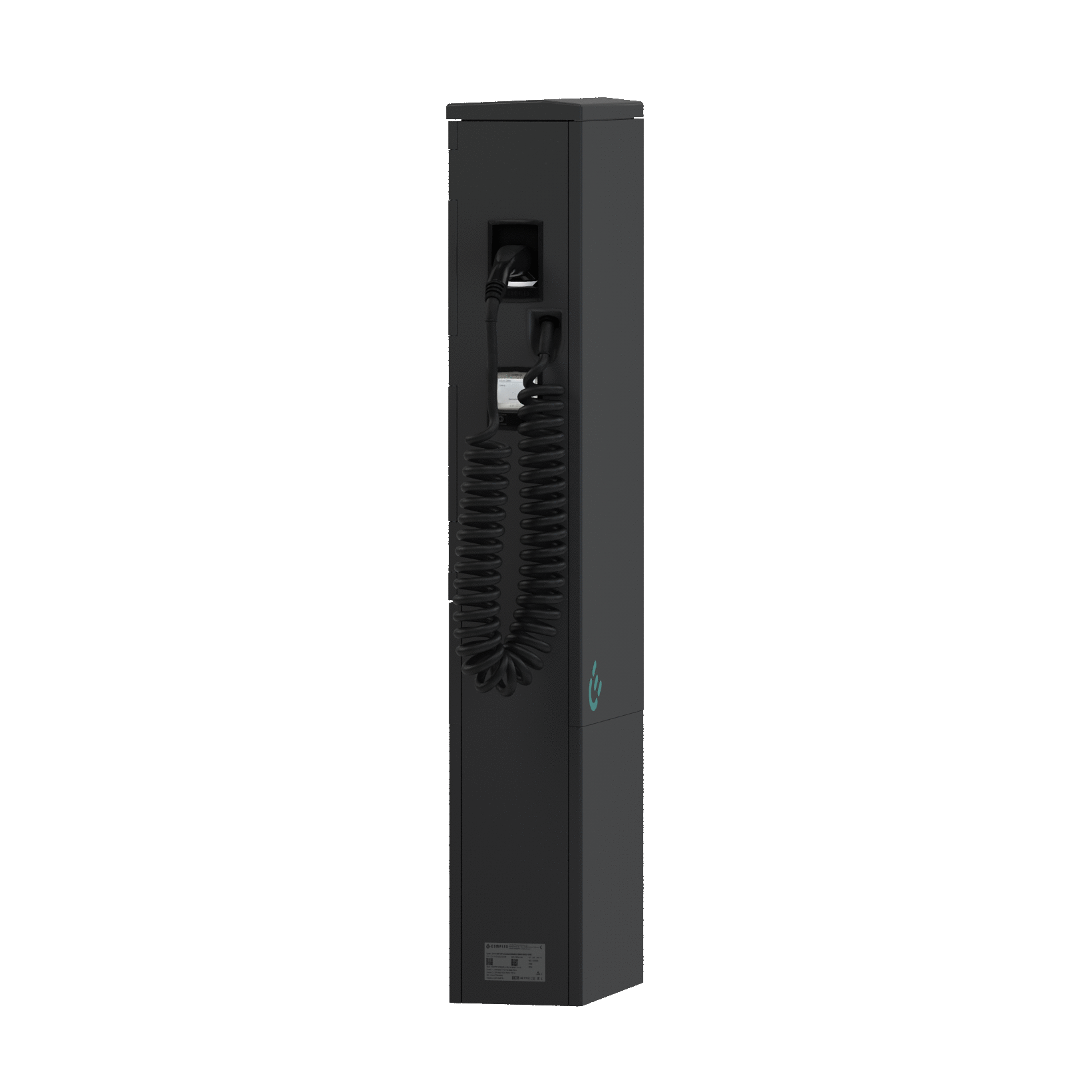

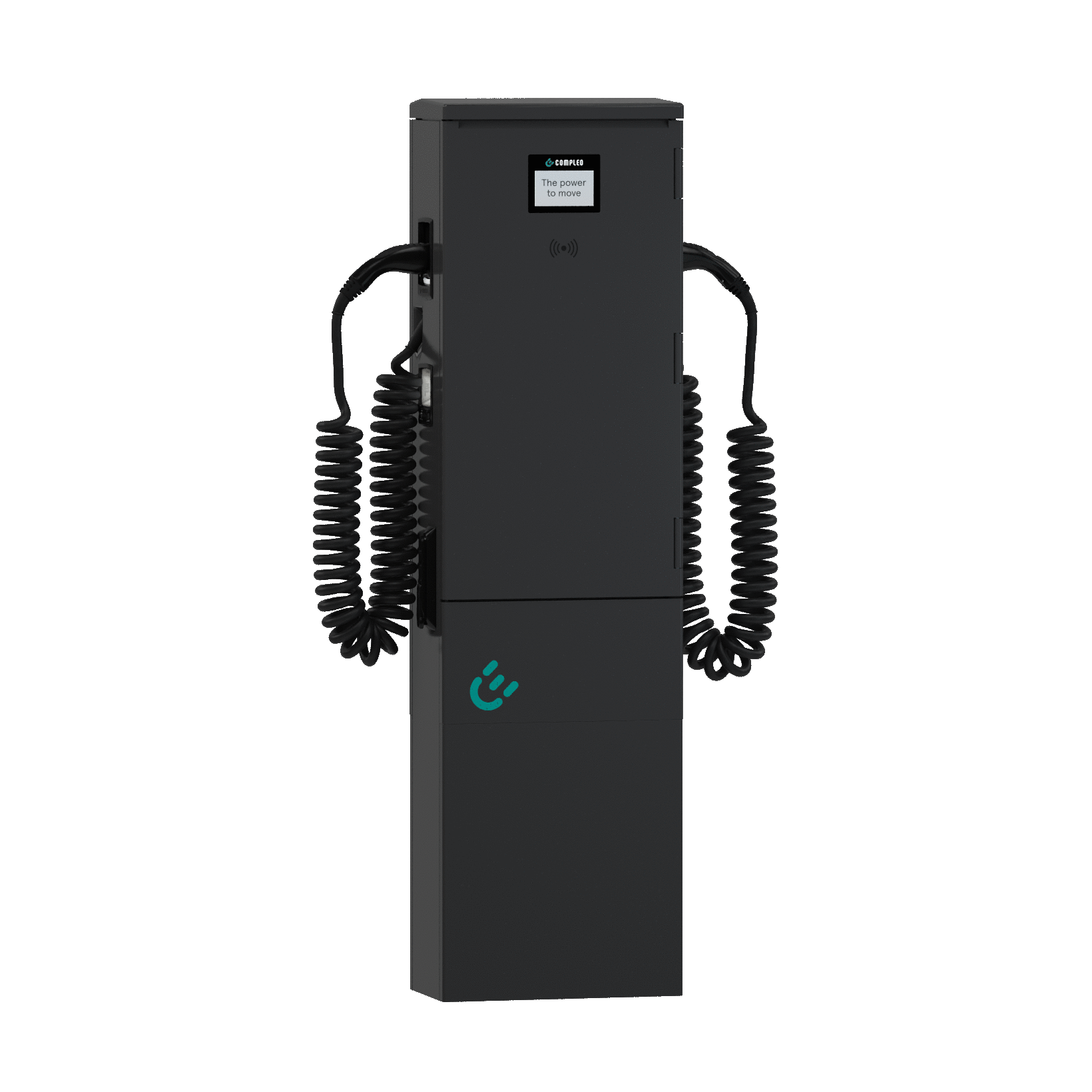

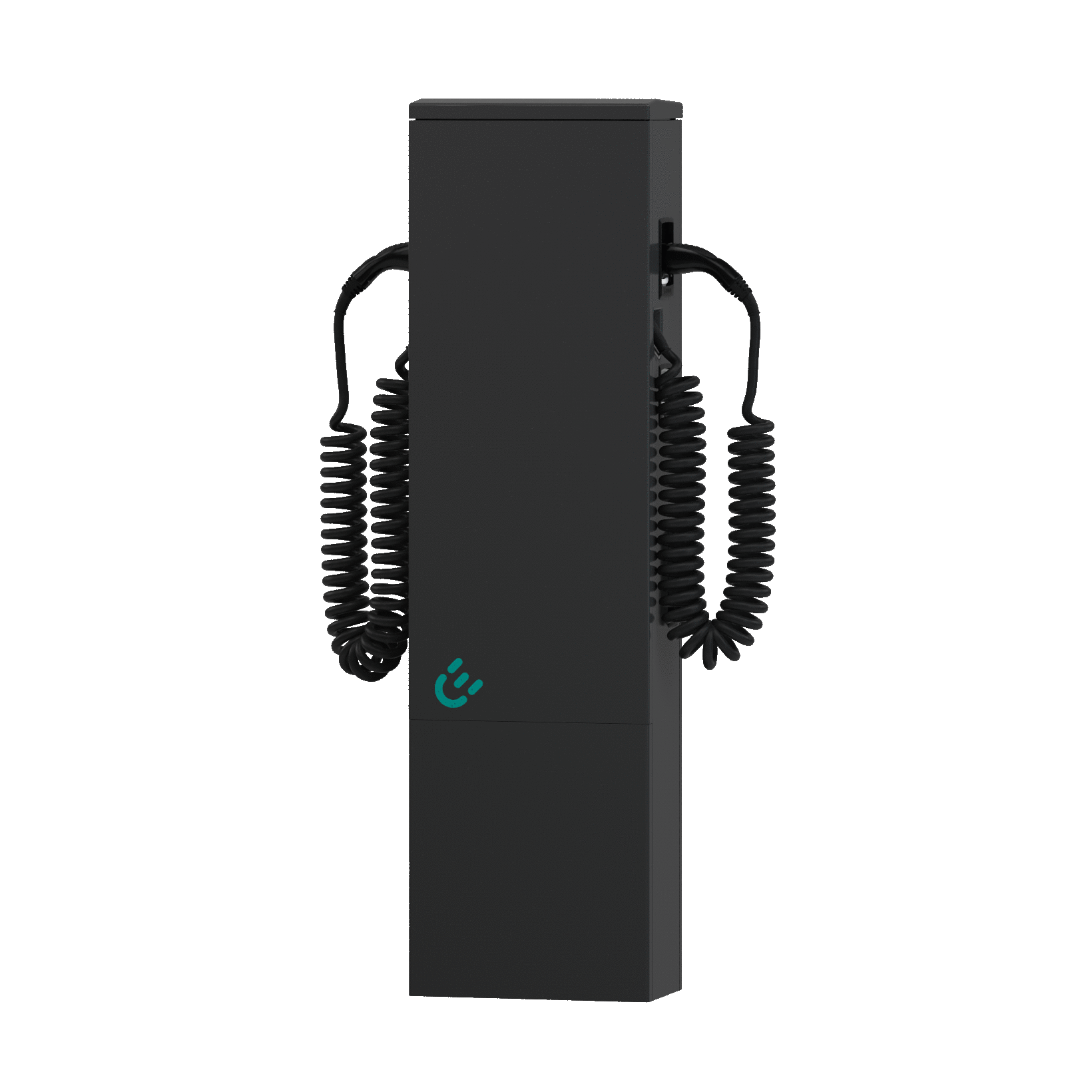

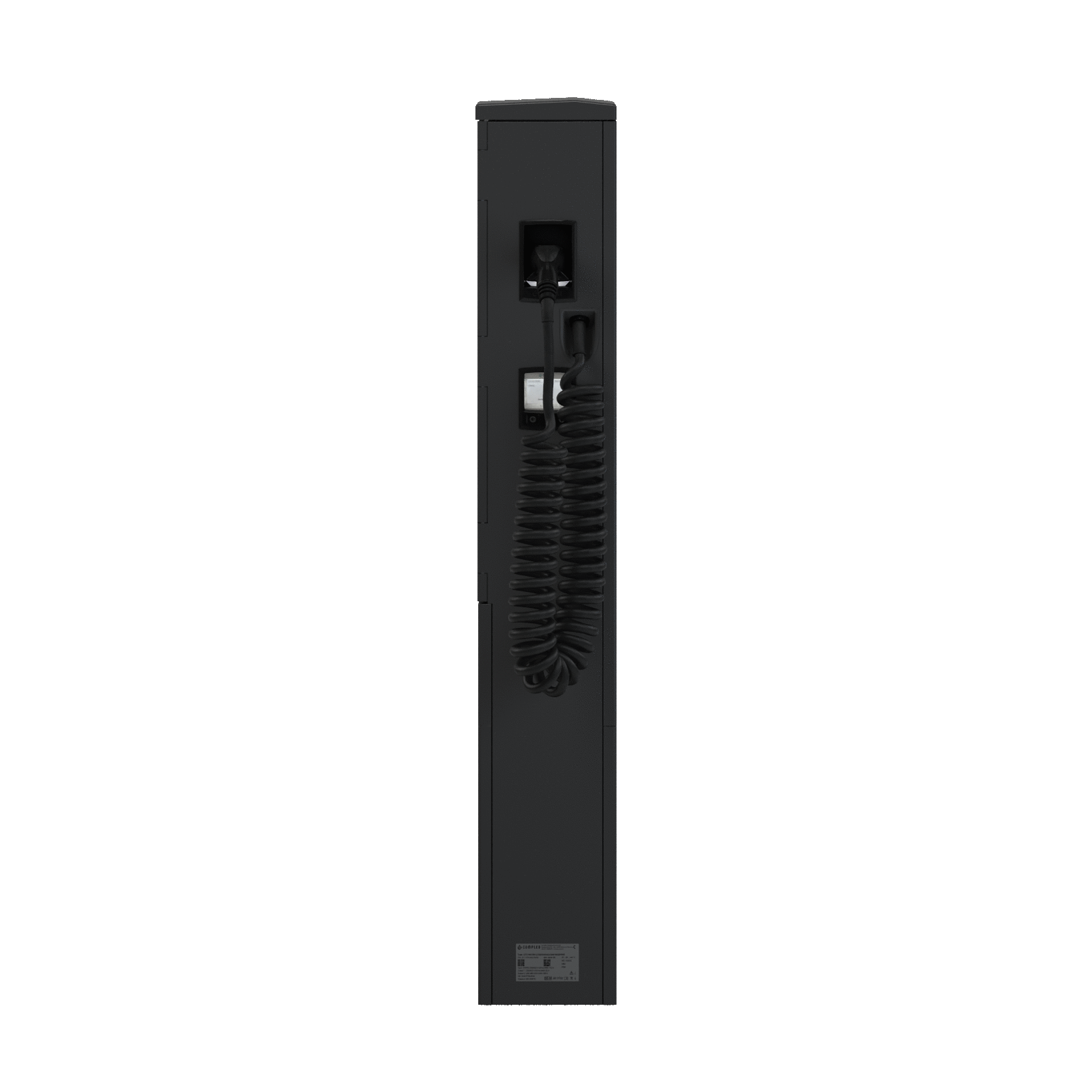

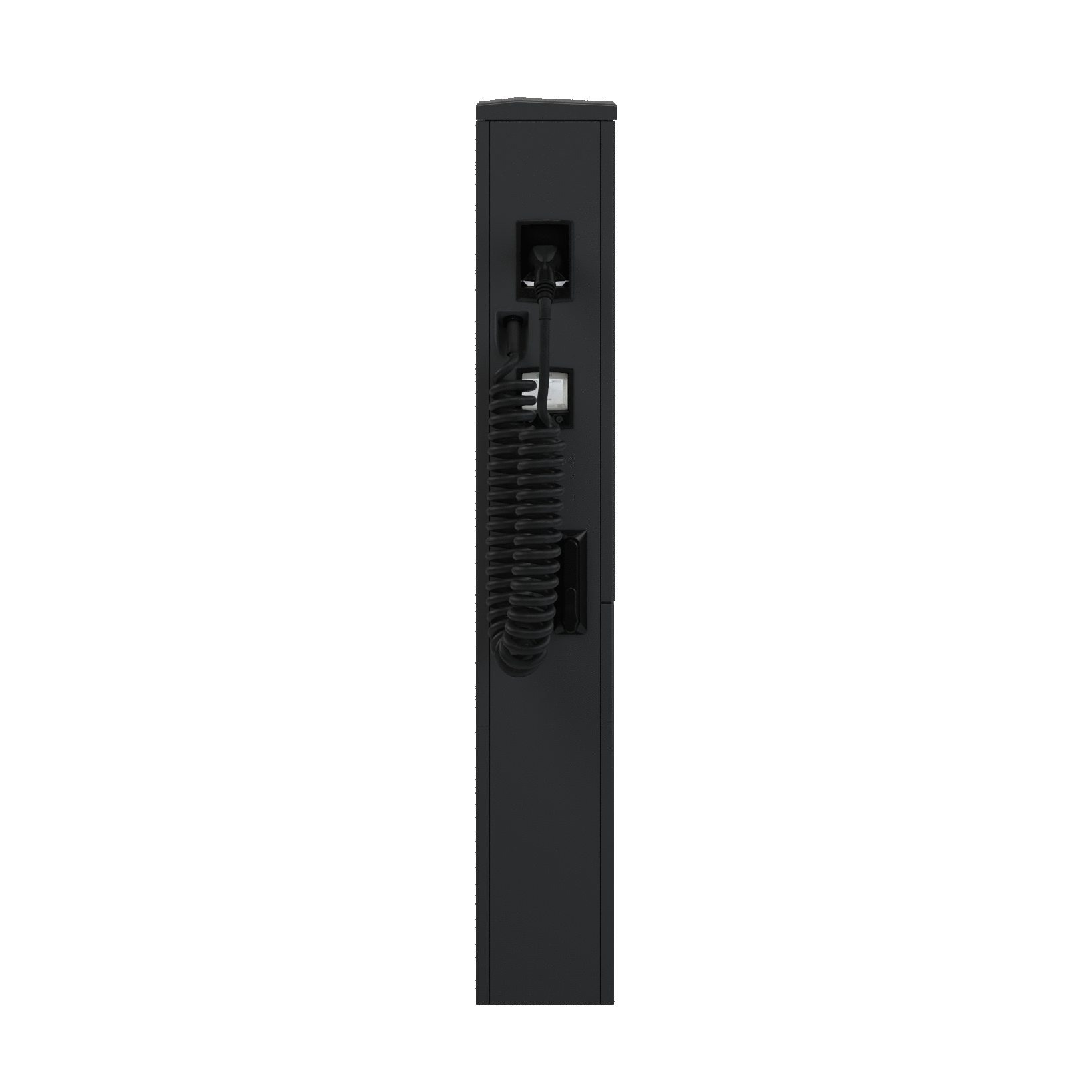

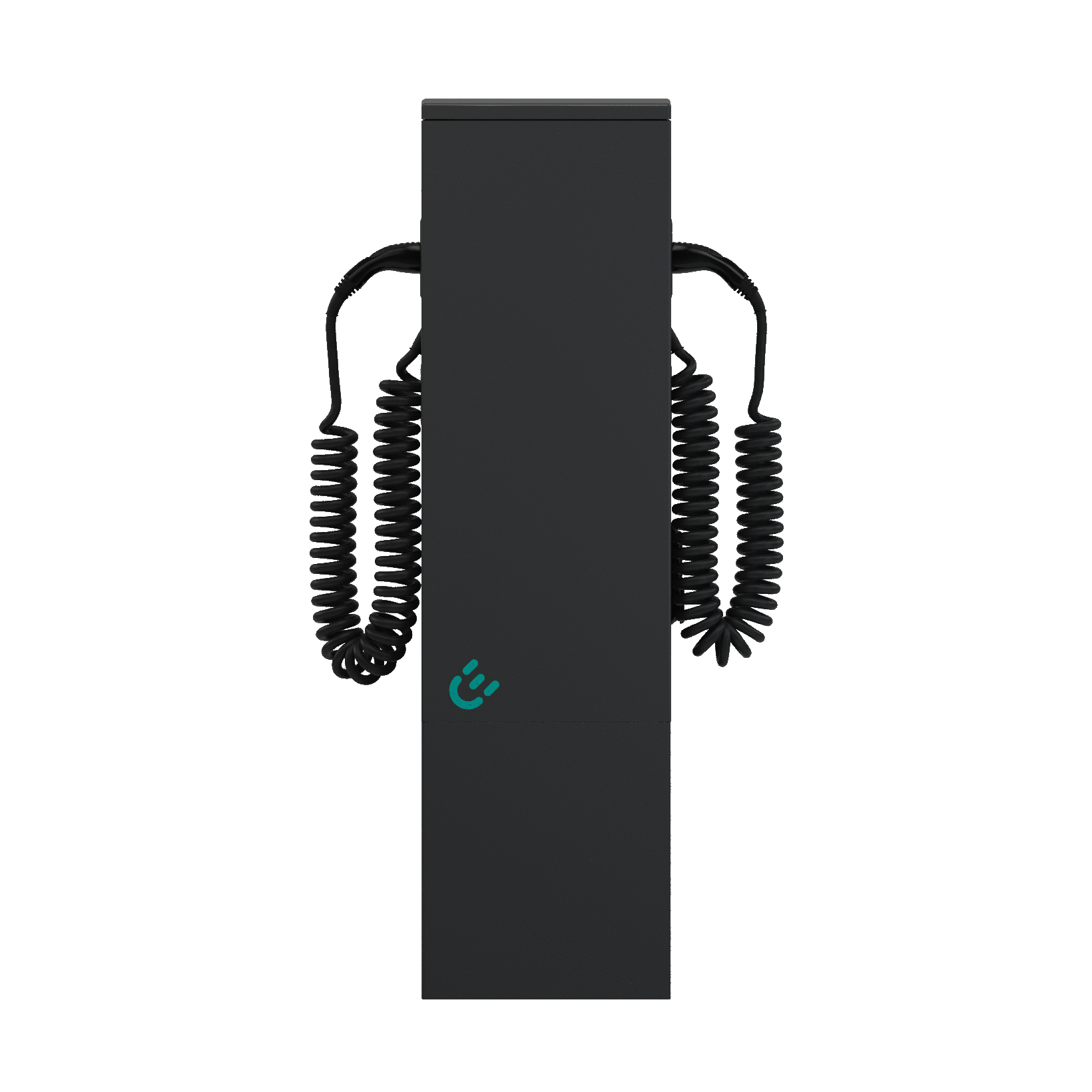

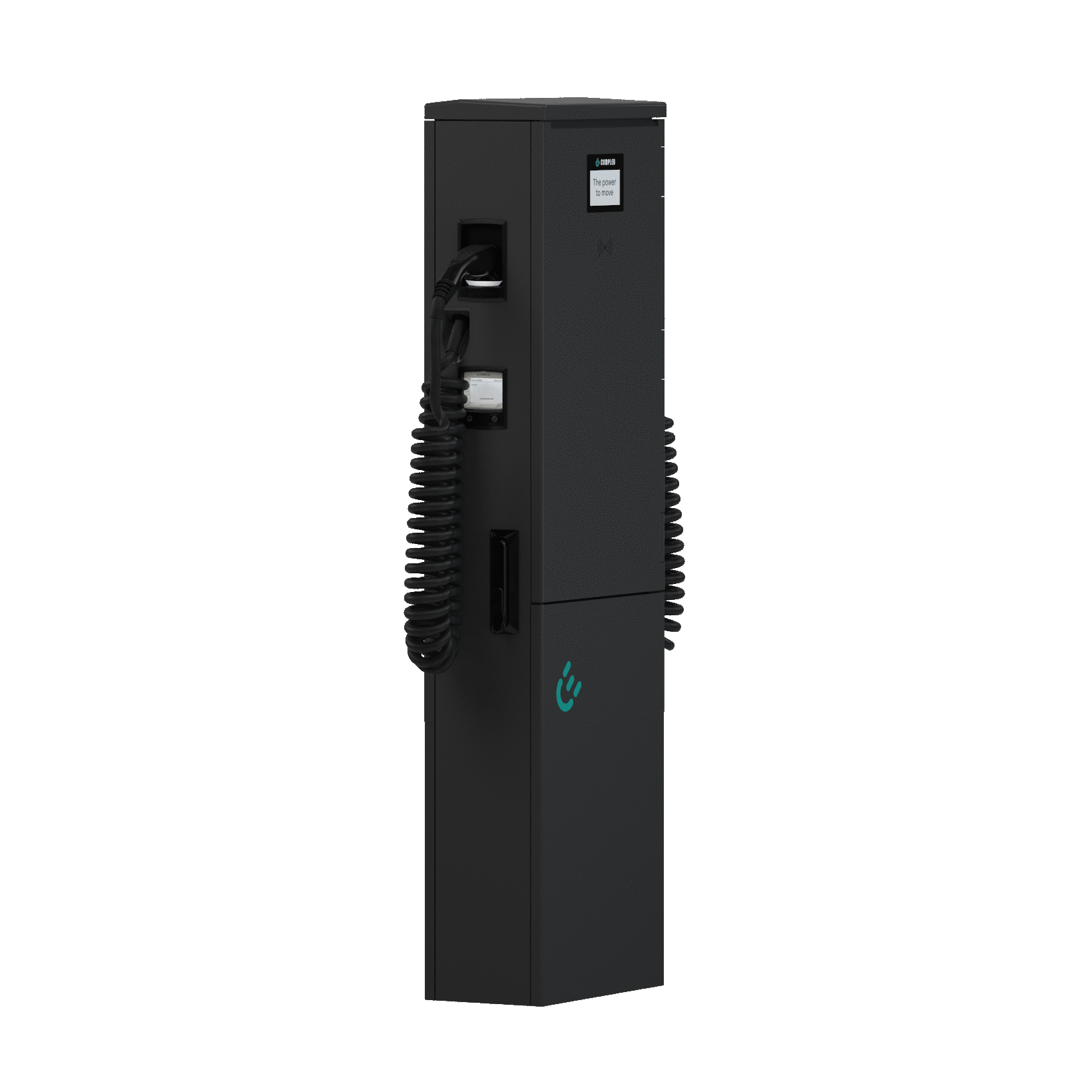

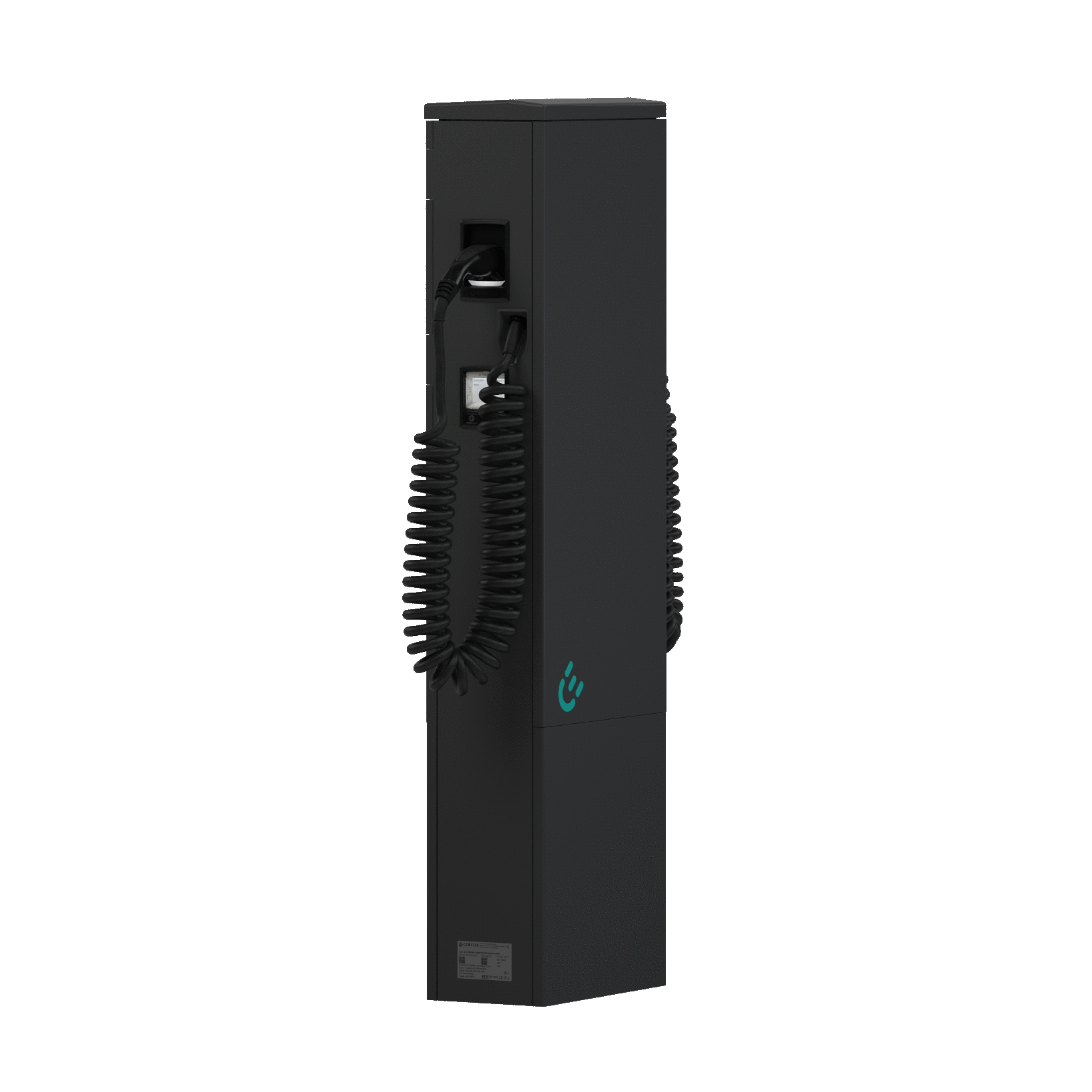

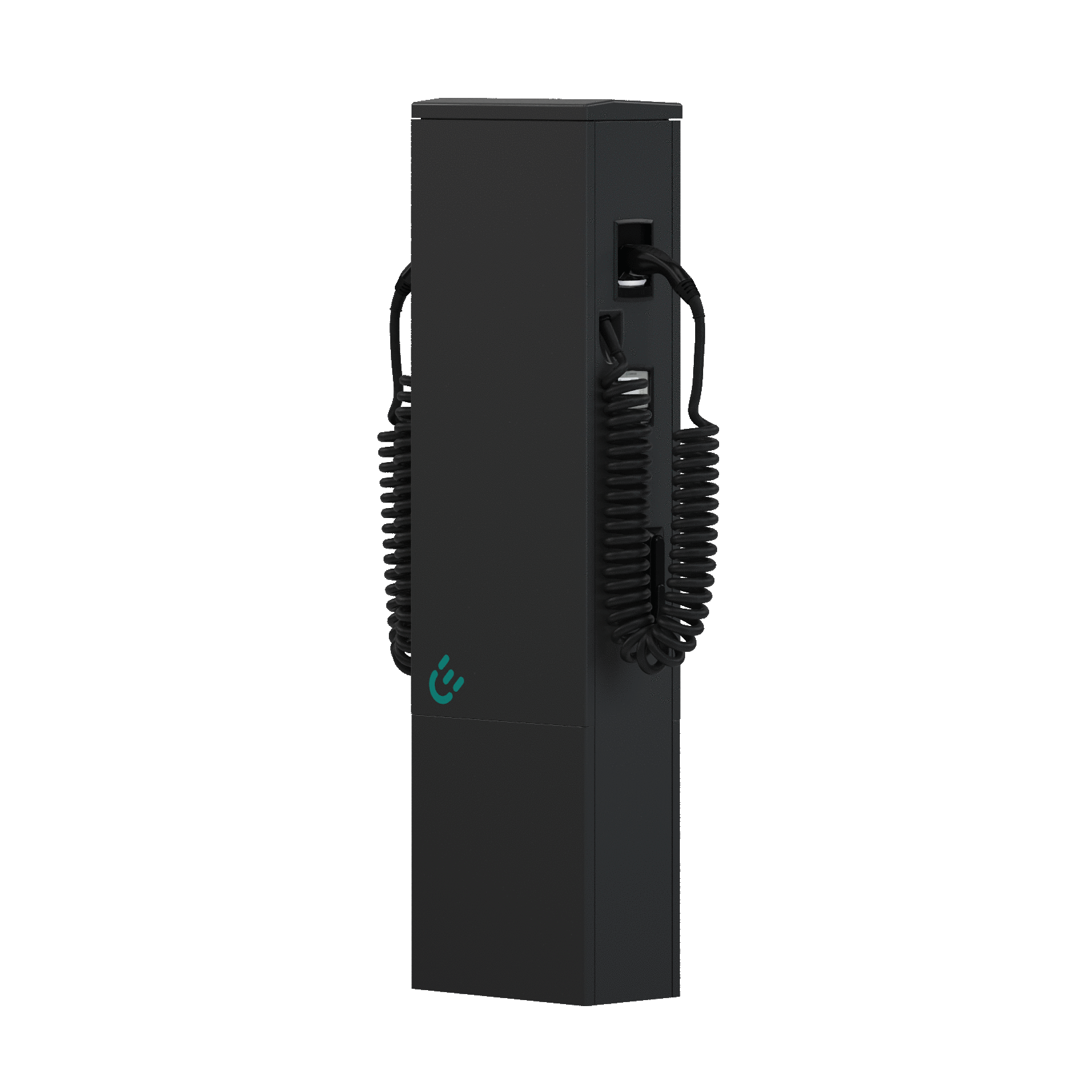

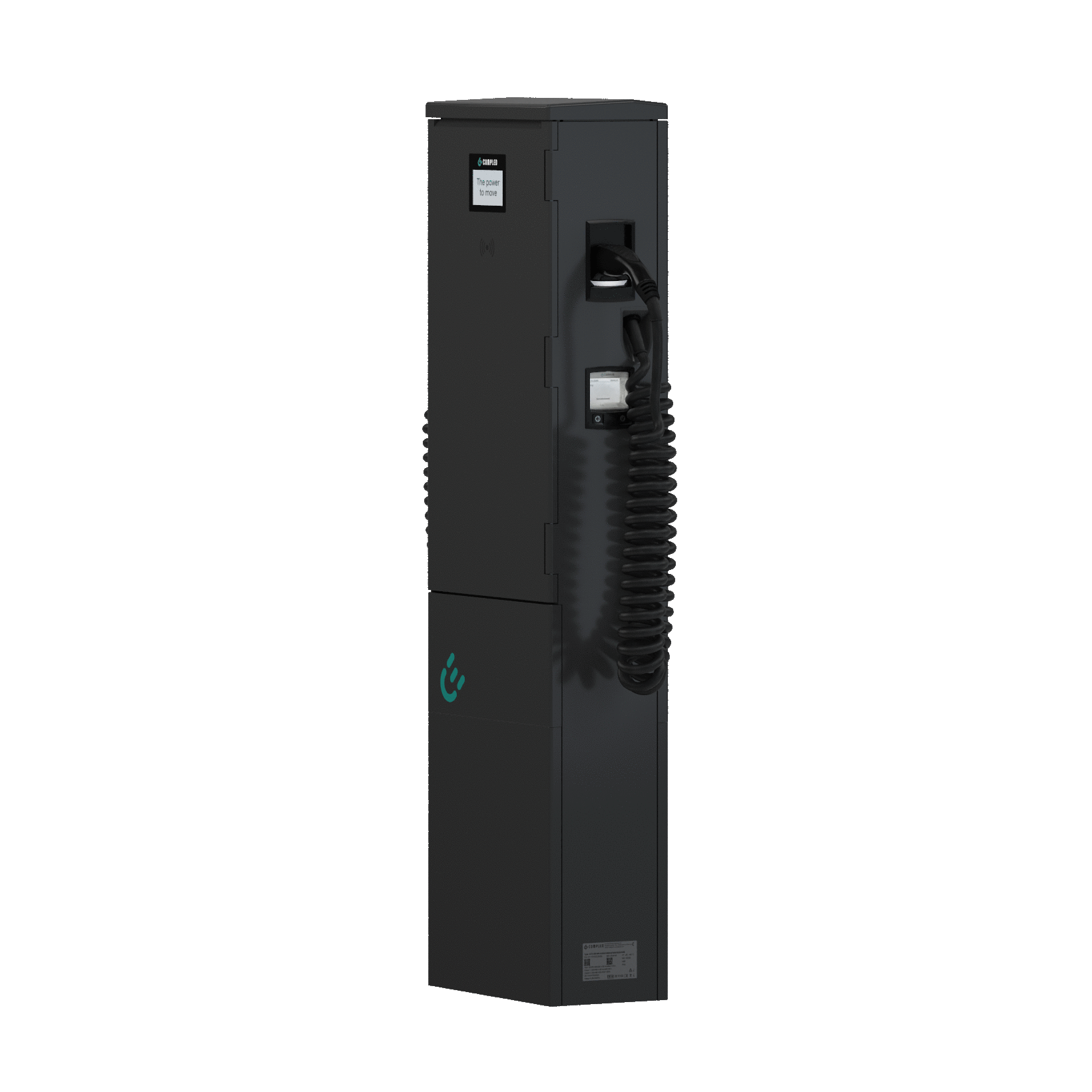

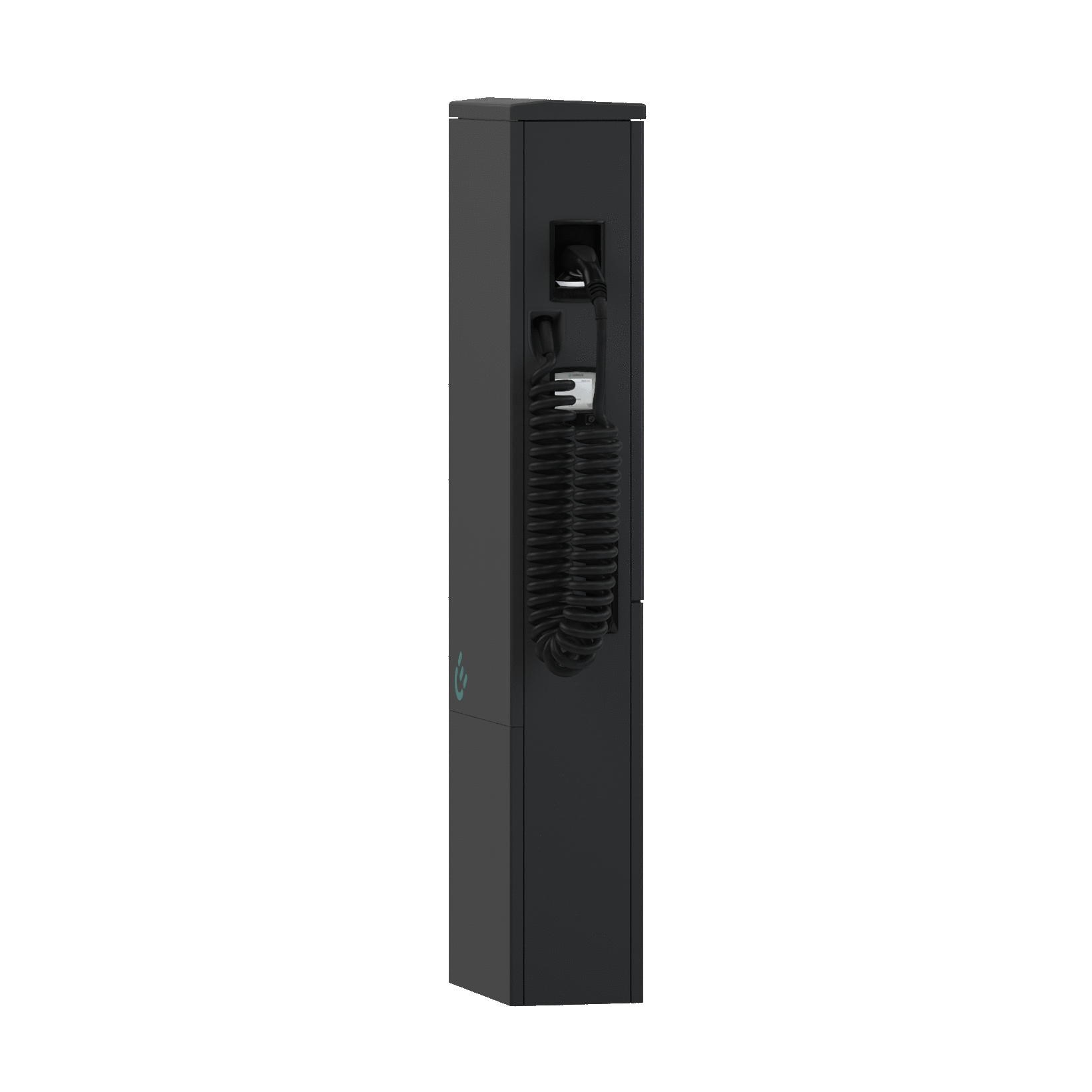

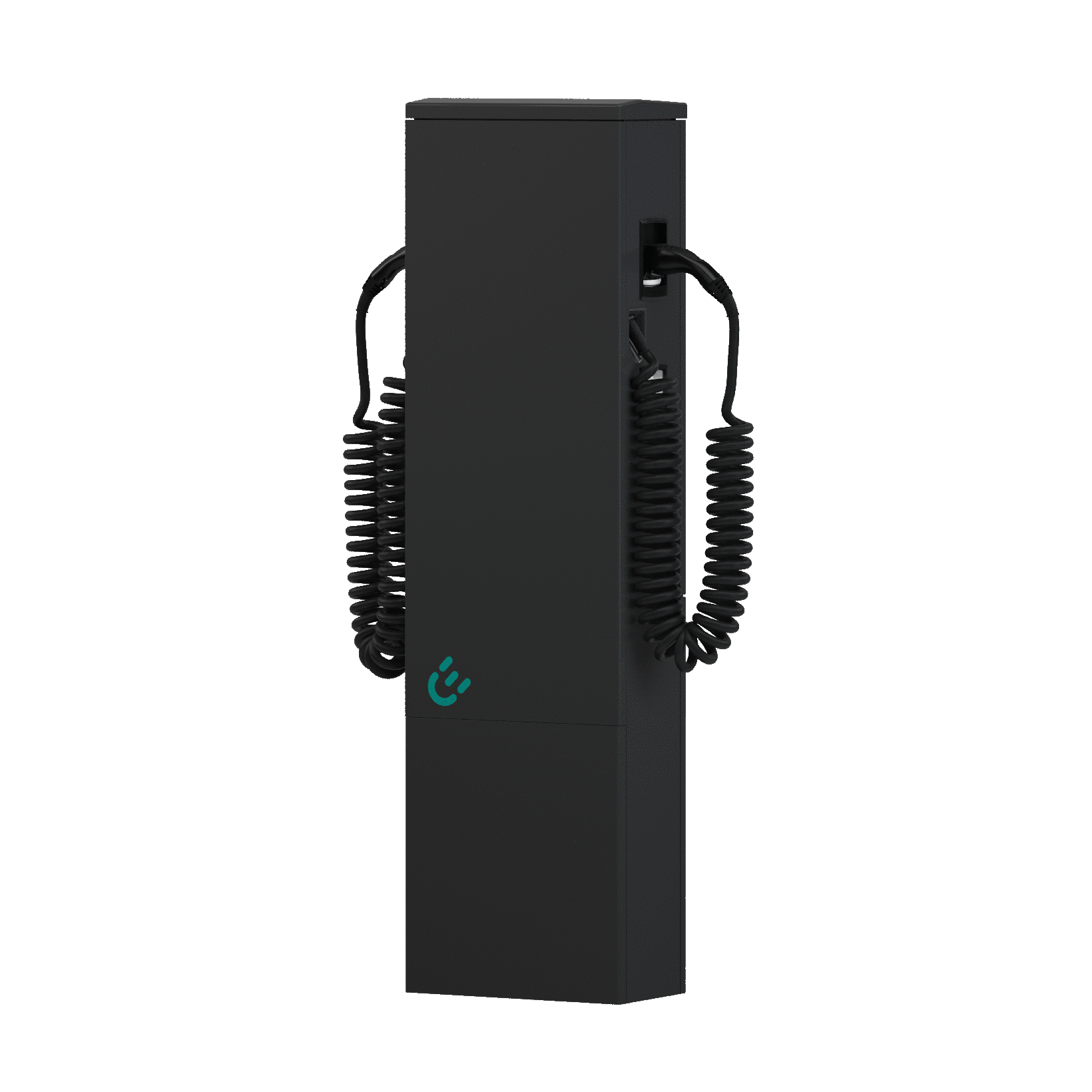

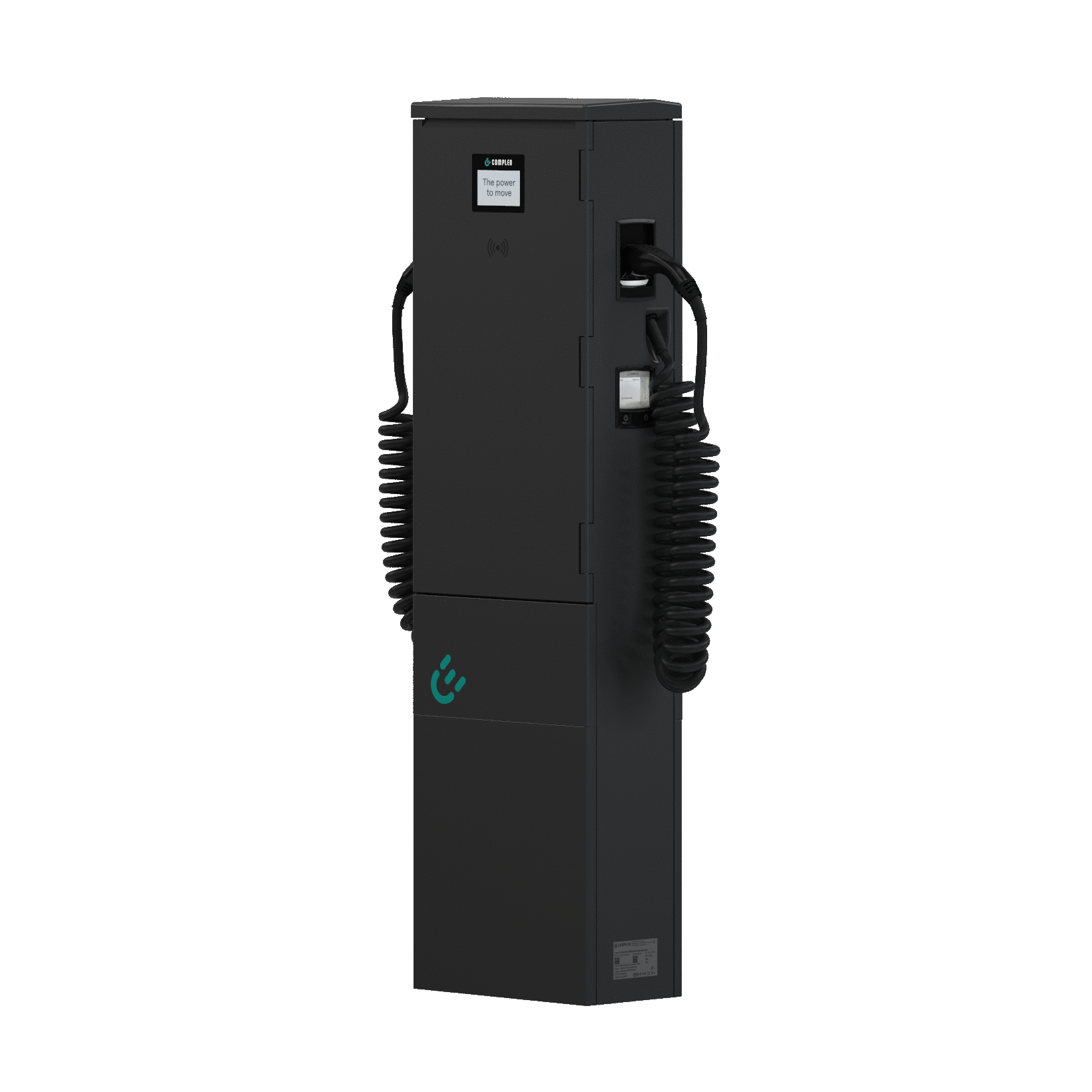

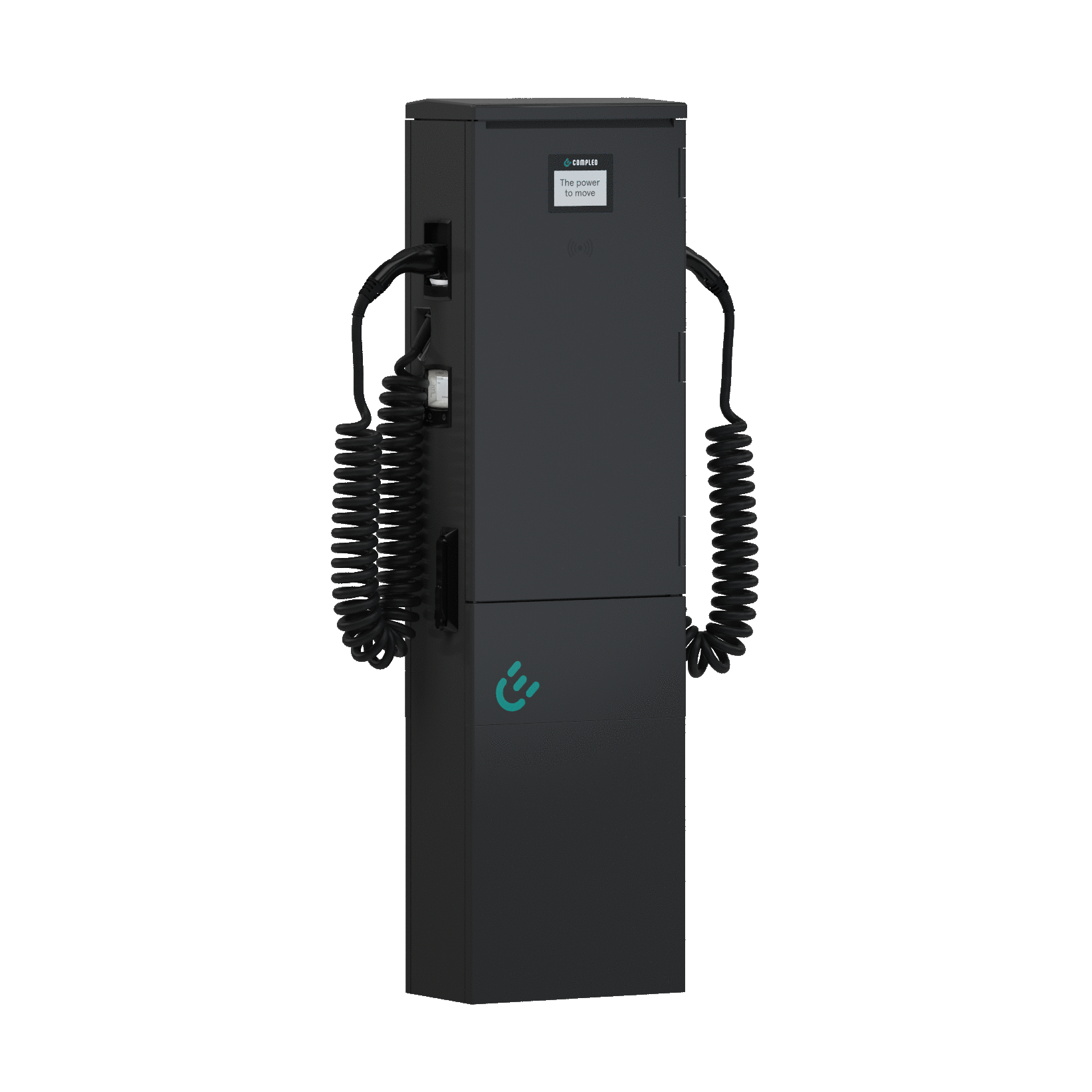

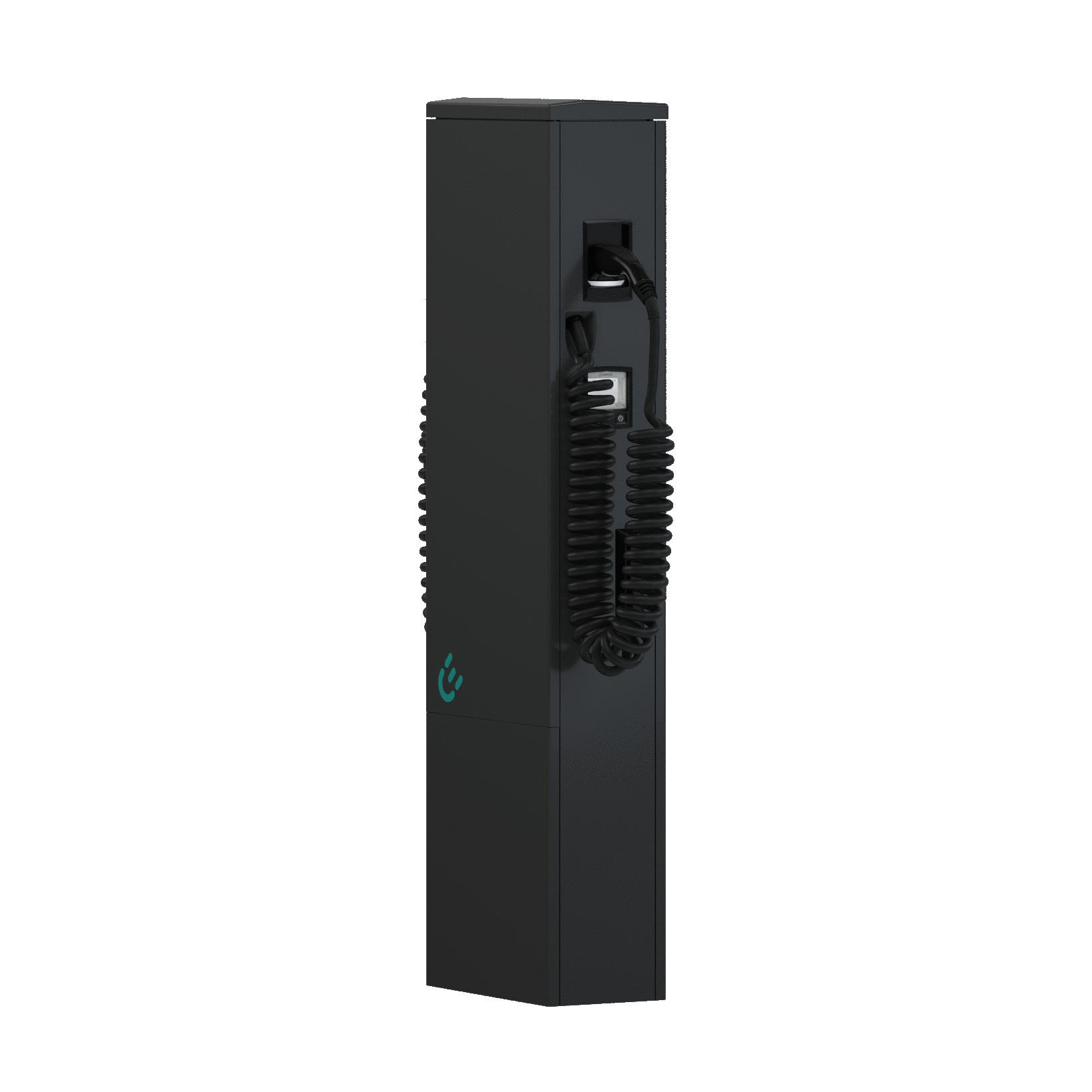

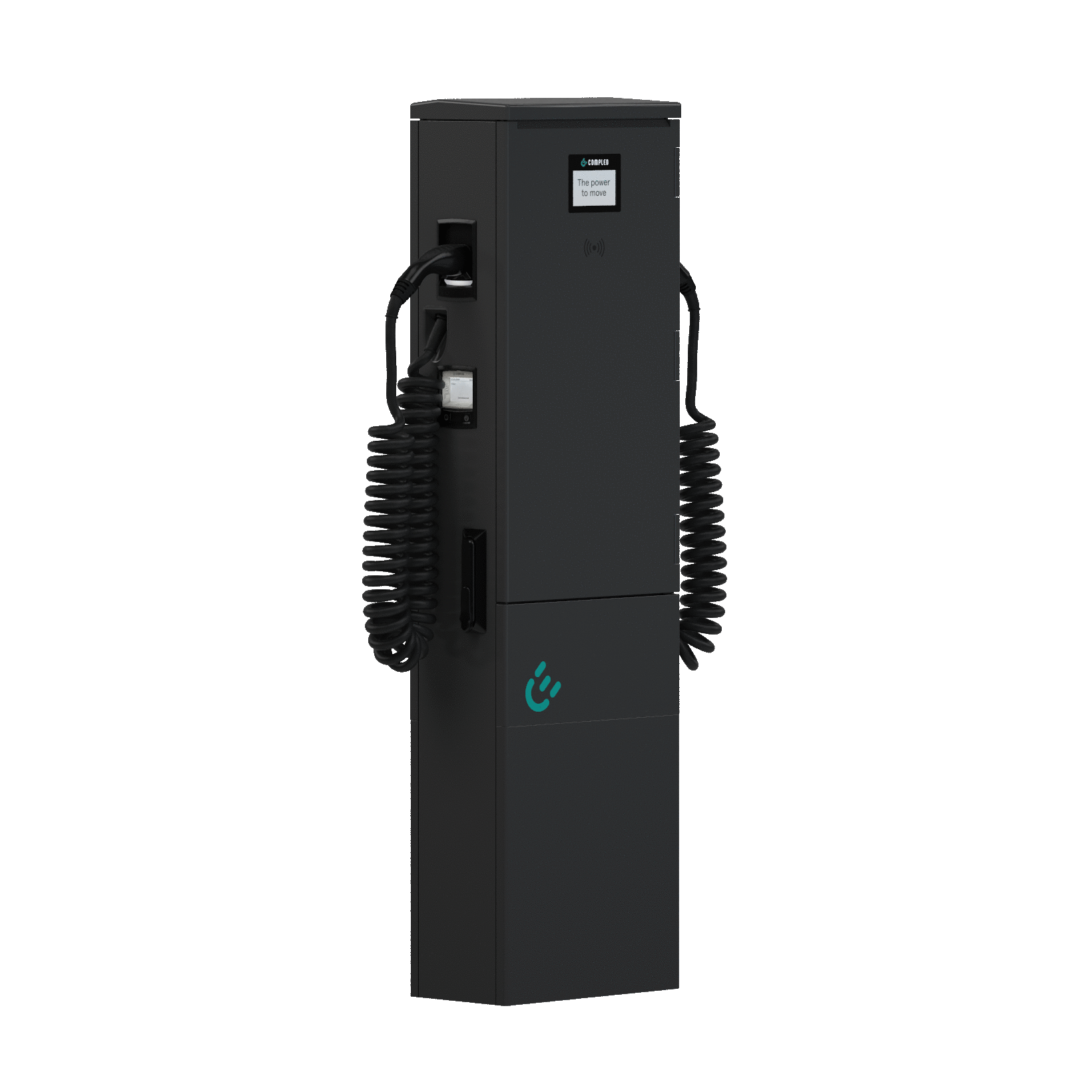

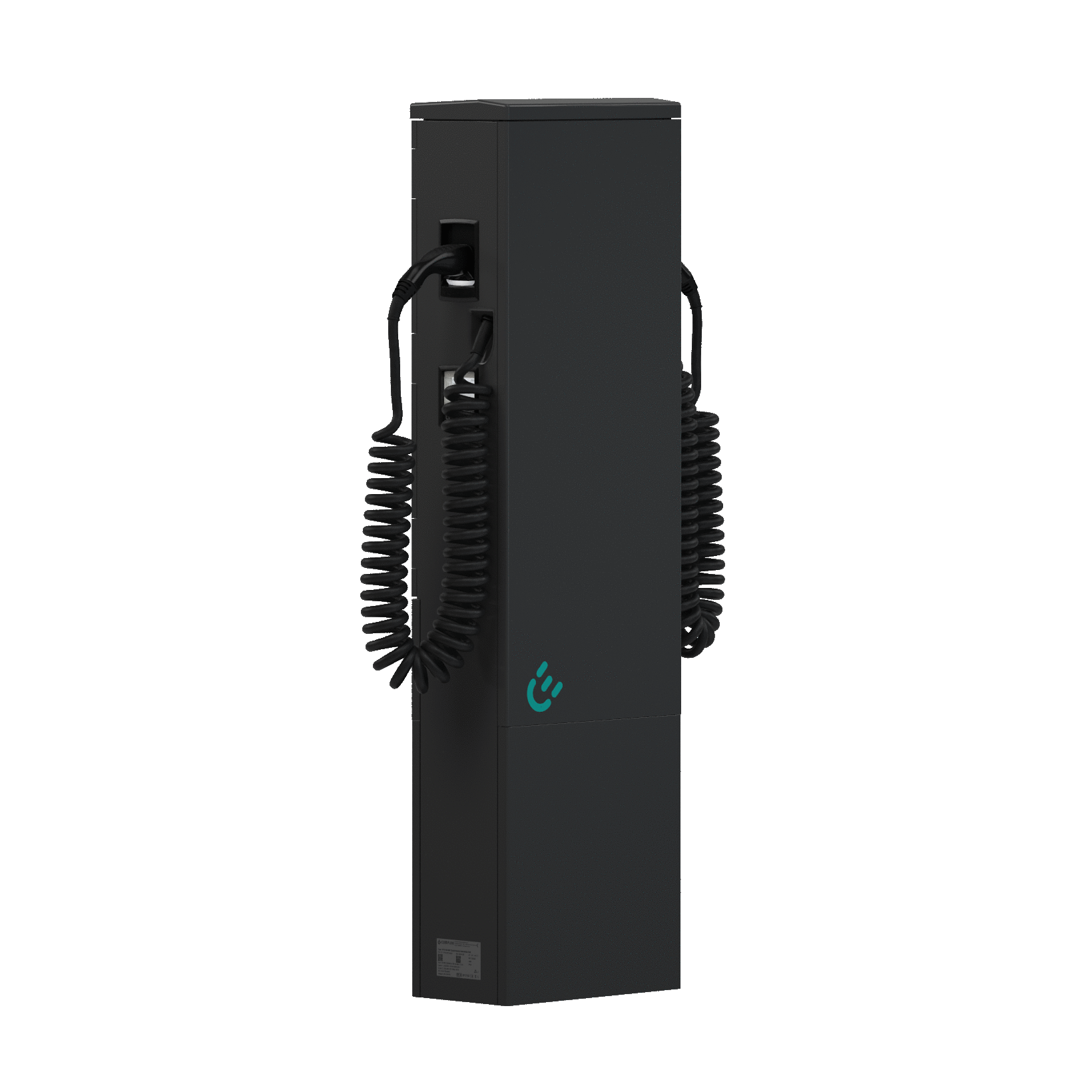

DUO fleet

AC charging station
More charge points, less construction work

Up to 2 x 22 kW of charging power (AC)

Think bigger with the DUO fleet – incorporate more charging points, reduce the need for upgrading the power grid and use fewer resources. Using Power Rail technology, the charging stations are connected in series, saving up to 50% in installation costs.

  • Floor-mounted for two parking spaces
  • Compliant with German calibration law
  • Single-hand operation
Loading...

More charging power, less construction work

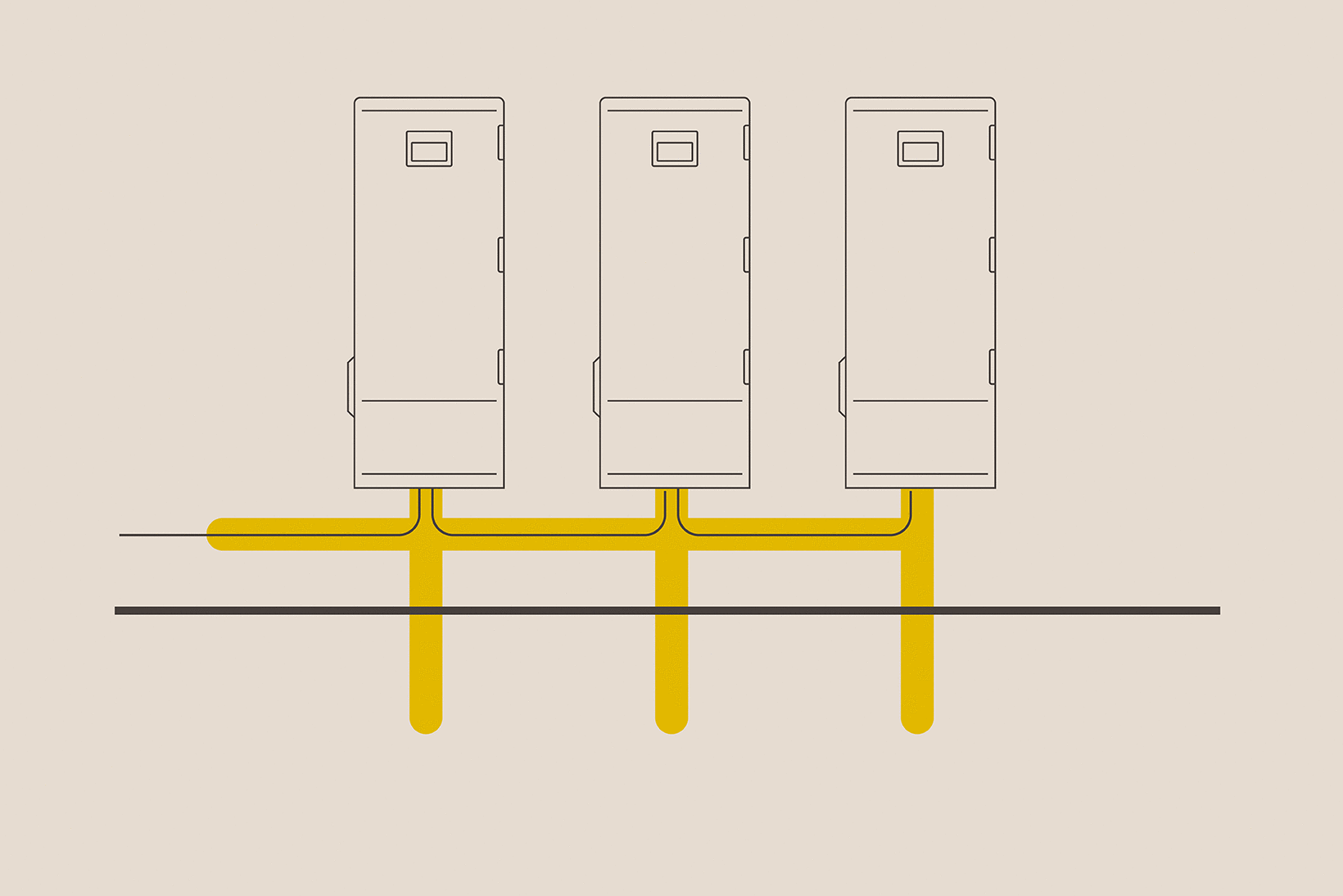

Up to now, a separate power line was required for each charging station. With the DUO fleet and the Compleo Power Rail system, up to 30 charging stations can be connected in series. The integrated load management system distributes the load on the power grid intelligently, saving up to 50% in grid connection costs.

Learn more



Loading...
Can be combined with any OCPP-compatible IT backend
Loading...
Extremely robust sheet moulding compound (SMC) enclosure; corrosion-free – forever
Loading...
Energy and load management via MODBUS/TCP protocol
Loading...

Precise functionality – with any IT backend

The DUO fleet can be controlled from any IT backend and provides calibration law-compliant metering via SAM module. SAM technology enables the user to monitor and check consumption without being connected to the IT backend.



Compare our charging solutions



DUO fleet

DUO

DUO ims

Maximum charging power per charging point 22 kW: type 2 socket; 11 kW: type 2 spiral lead; configurable 11/22 kW 22 kW, configurable
Number of charging points 2 2 2
Charging connector 2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m) 2x type 2 socket, incl. sliding cover; optional 2x type 2 spiral lead (6.5 m) 2x type 2 socket, incl. sliding cover
Compliant with calibration law 2x MID-compliant smart meter; optional with SAM® storage and display module 2x MID-compliant smart meter; optional with SAM® storage and display module 2x MID-compliant smart meter with SAM® storage and display module
Protection 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P 2x RCD type A; 2x DC residual current detection 6 mA; 2x circuit breaker C20 3P or C40 3P; 1x circuit breaker B16 1P
Communication interface to IT backends OCPP 1.6 JSON OCPP 1.6 JSON OCPP 1.6 JSON
Authorisation Free charging, RFID, smartphone app, Giro-e able Free charging, RFID, smartphone app, Giro-e able Free charging, RFID, smartphone app, optional: Giro-e, credit card terminal

Documents for download

With Compleo’s comprehensive documentation, planning to install the perfect charging system is easy. Put together your customised charging solution by simply selecting the charging station and accessories that best meet your needs.

Document Centre

Product name
DUO fleet

Number of charging points
2

Charging connector
2x type 2 socket, incl. sliding cover;
optional 2x type 2 spiral lead (6.5 m)

Authorisation
Free charging, RFID, smartphone app,
Giro-e able

Display
Size: 4.3’’ display

User Interface

Maximum charging output per charge point
22 kW: type 2 socket;
11 kW: type 2 spiral lead;
configurable

Nominal voltage, number of phases, nominal frequency
400 V; 3; 50 Hz

Maximum input current
32 A / 63 A per phase, configurable

Protection
2x RCD type A; 2x DC residual current detection 6 mA;
2x circuit breaker C20 3P or C40 3P;
1x circuit breaker B16 1P

Protocols for communication with IT backends
OCPP 1.6 JSON

Meter / German calibration law
2x MID-compliant smart meter;
optional with SAM® storage and display module

Mounting type
Wall mounted (wm);
optional: Pole mounted (pm) or Base mounted (bm)

Enclosure material
Sheet moulding compound (SMC)

IP protection class
Enclosure: IP44;
relevant components: IP54

Impact resistance
IK10

Weight
Approx. 35 - 45 kg, depending on added options

Lock
Swivelling lever, built-in space for one profile half cylinder

Environmental operating temperature
-25 °C to +40 °C

Approvals
CE, RoHS, REACH, GPSD, WEEE

Standards
DIN EN 61851-1;
DIN IEC/TS 61439-7

Dimensions (HxWxD)
Wall mounted version: 1000 x 400 x 225 mm;
pole mounted version: 1000 x 400 x 225 mm;
floor mounted version: 1441 x 400 x 225 mm

SMC base + base filler granulate
For mounting in ground

Installation kit
For mounting without base

  • pdf (279 KB)

    EN_Data_sheet_DUO_fleet_20230301.pdf

    Download
  • pdf (106 KB)

    Description for tenders DUO fleet, English

    Download
